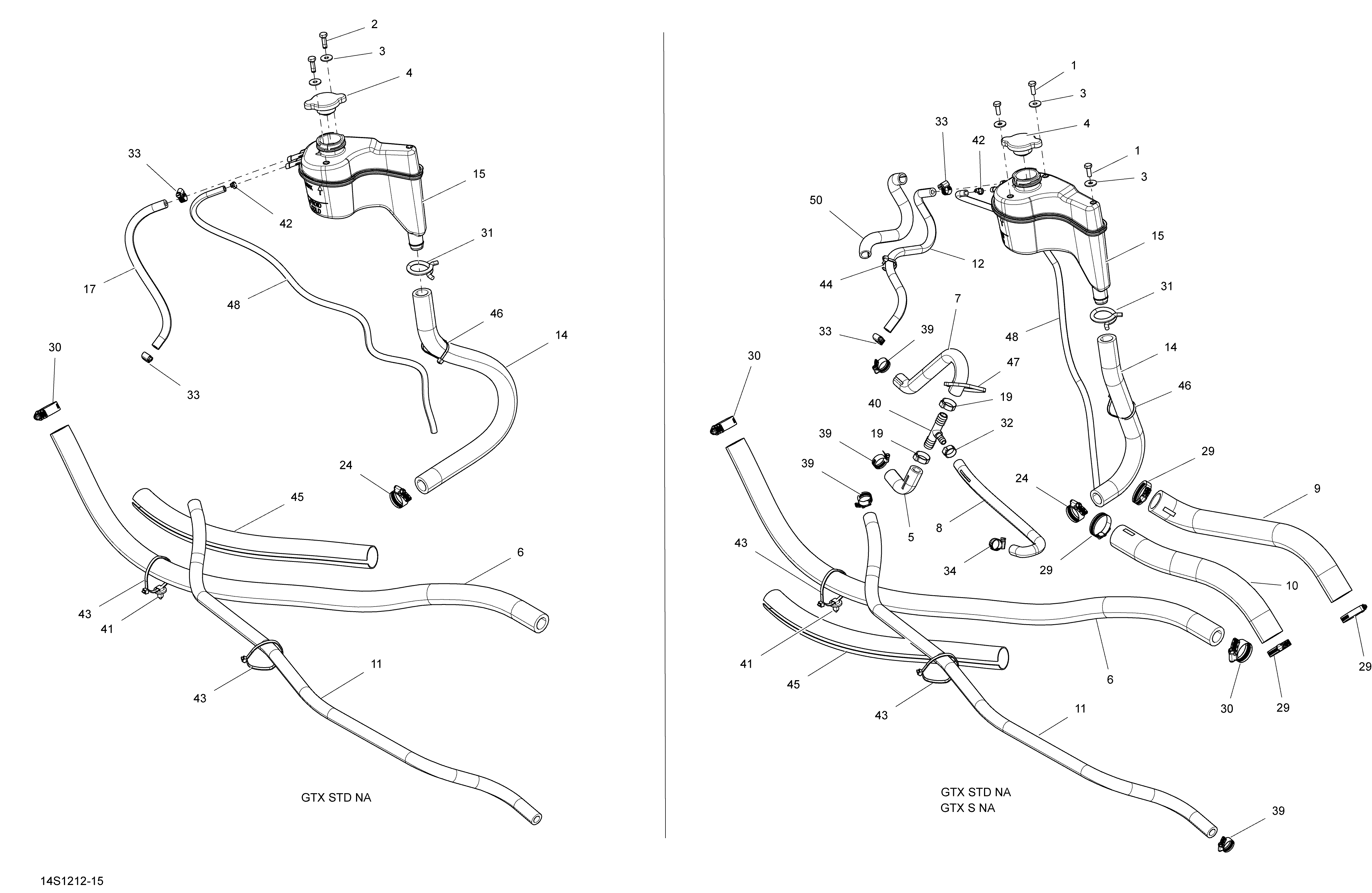

01- Cooling System для BRP GTX 155 (38CA, 38CB) - 2012
-
№АртикулНазвание
-
2207362060 Hex. Screw M6 X 20, Scotch Grip. GTX 155Hex. Screw M6 X 20, Scotch Grip. GTX 155
-
3234062600 Flat Washer M6, Stainless. GTX 155Flat Washer M6, Stainless. GTX 155
-
4276000100 Pressure CapPressure Cap
-
5276000245 Lower Formed HoseLower Formed Hose
-
6276000158 Hose 19 mmHose 19 mm
-
7276000244 Formed HoseFormed Hose
-
8276000246 Formed HoseFormed Hose
-
9276000240 Radiator HoseRadiator Hose
-
10276000241 Radiator HoseRadiator Hose
-
11276000151 Hose 12.5 mmHose 12.5 mm
-
14276000099 Hose 19 mmHose 19 mm
-
15276000265 Coolant TankCoolant Tank
-
19293650012 Oetiker ClampOetiker Clamp
-
24293650019 Tridon Gear ClampTridon Gear Clamp
-
29293650185 Tridon Gear ClampTridon Gear Clamp
-
30293650172 Tridon Gear ClampTridon Gear Clamp
-
31293650115 Spring ClampSpring Clamp
-
32293650030 Oetiker ClampOetiker Clamp
-
33293650170 Tridon Gear ClampTridon Gear Clamp
-
34293650171 Tridon Gear ClampTridon Gear Clamp
-
39293650172 Tridon Gear ClampTridon Gear Clamp
-
40293710116 T-FittingT-Fitting
-
41293730040 Mount DartMount Dart
-
42293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
43293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
45409902200 Tubing 25 mmTubing 25 mm
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48415080200 Hose, PolyurethaneHose, Polyurethane
