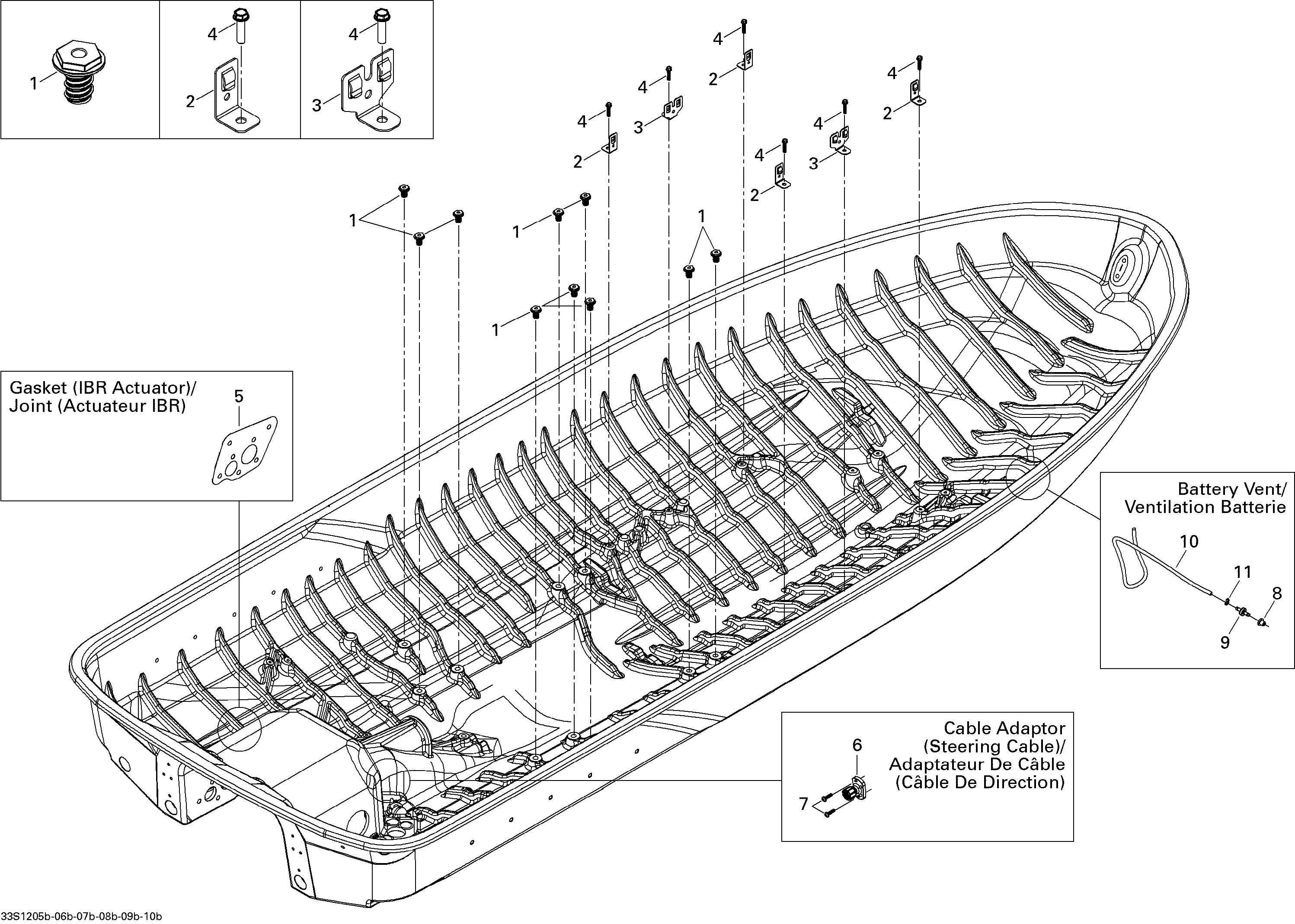

09- Hull 2_GTS Rental для BRP GTS 130 & Rental 99 (25CS, 43CS) - 2012
-
№АртикулНазвание
-
1293450290 Insert Capuchon M8Insert Capuchon M8
-
2275500743 Strap Clip 90°Strap Clip 90°
-
3275500798 Double Strap Clip 90°Double Strap Clip 90°
-
4243162560 Hex. Flanged Screw M6.81 X 25, PlastiteHex. Flanged Screw M6.81 X 25, Plastite
-
6277001784 Cable Adaptor Ass'yCable Adaptor Ass'y
-
7250000466 Torx Screw Plastite M6Torx Screw Plastite M6
