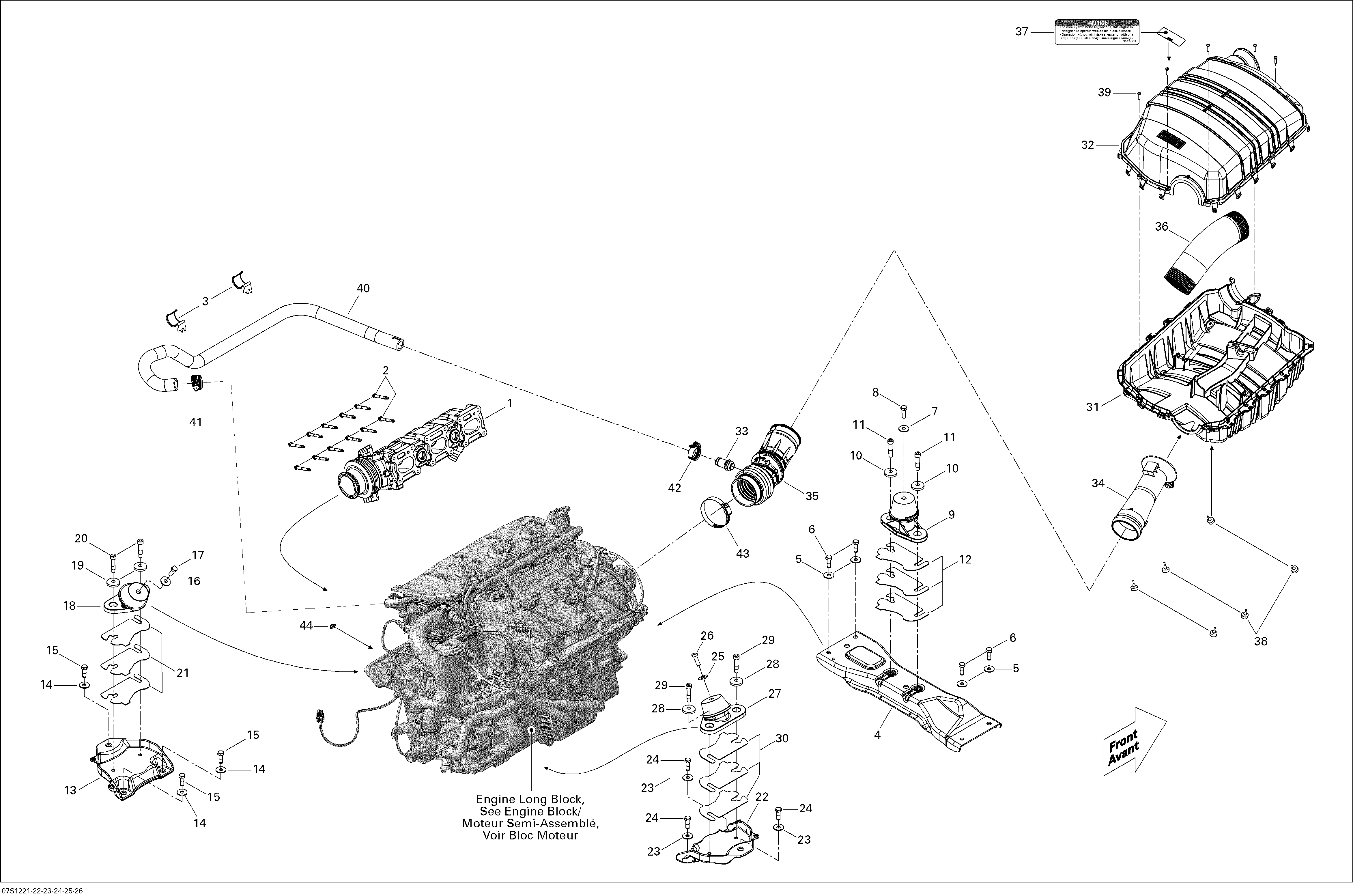

01- Engine And Air Intake Silencer для BRP GTI LTD 155 (39CA, 39CB) - 2012

  • №
    Артикул
    Название
  • 1
    274001434 Exhaust Manifold
    Exhaust Manifold
  • 2
    420641198 Flanged Torx Screw M6 X 45
    Flanged Torx Screw M6 X 45
  • 3
    275500664 Retainer
    Retainer
  • 4
    270000818 Front Spacer
    Front Spacer
  • 5
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 6
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 7
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 8
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 9
    270000885 Rubber Mount
    Rubber Mount
  • 10
    250200018 Cone Washer
    Cone Washer
  • 11
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 12
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 13
    270000815 Rear Spacer
    Rear Spacer
  • 14
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 15
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 16
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 17
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 18
    270000882 Rubber Mount
    Rubber Mount
  • 19
    250200018 Cone Washer
    Cone Washer
  • 20
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 21
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 22
    270000815 Rear Spacer
    Rear Spacer
  • 23
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 24
    250000525 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 25
    234082600 Flat Washer 8 mm, Stainless
    Flat Washer 8 mm, Stainless
  • 26
    207382560 Hex. Screw M8 X 25, Scotch Grip
    Hex. Screw M8 X 25, Scotch Grip
  • 27
    270000882 Rubber Mount
    Rubber Mount
  • 28
    250200018 Cone Washer
    Cone Washer
  • 29
    250000334 Socket Head Screw M8 X 40, Scotch Grip
    Socket Head Screw M8 X 40, Scotch Grip
  • 30
    270000762 Shim 1.3 mm
    Shim 1.3 mm
  • 31
    273000298 Air Silencer Low
    Air Silencer Low
  • 32
    273000297 Air Silencer Upper
    Air Silencer Upper
  • 33
    273000234 Breather
    Breather
  • 34
    273000291 Intake Hose
    Intake Hose
  • 35
    273000292 Hose Connector
    Hose Connector
  • 36
    273000290 Air Silencer Hose
    Air Silencer Hose
  • 37
    219903177 Notice Decal, Air Silencer
    Notice Decal, Air Silencer
  • 38
    708000759 Rubber Stopper
    Rubber Stopper
  • 39
    250000287 Flanged Torx Screw K40 X 16
    Flanged Torx Screw K40 X 16
  • 40
    270000809 Formed Hose
    Formed Hose
  • 41
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 42
    293650051 Tridon Gear Clamp
    Tridon Gear Clamp
  • 43
    293650179 Tridon Clamp
    Tridon Clamp
  • 44
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
