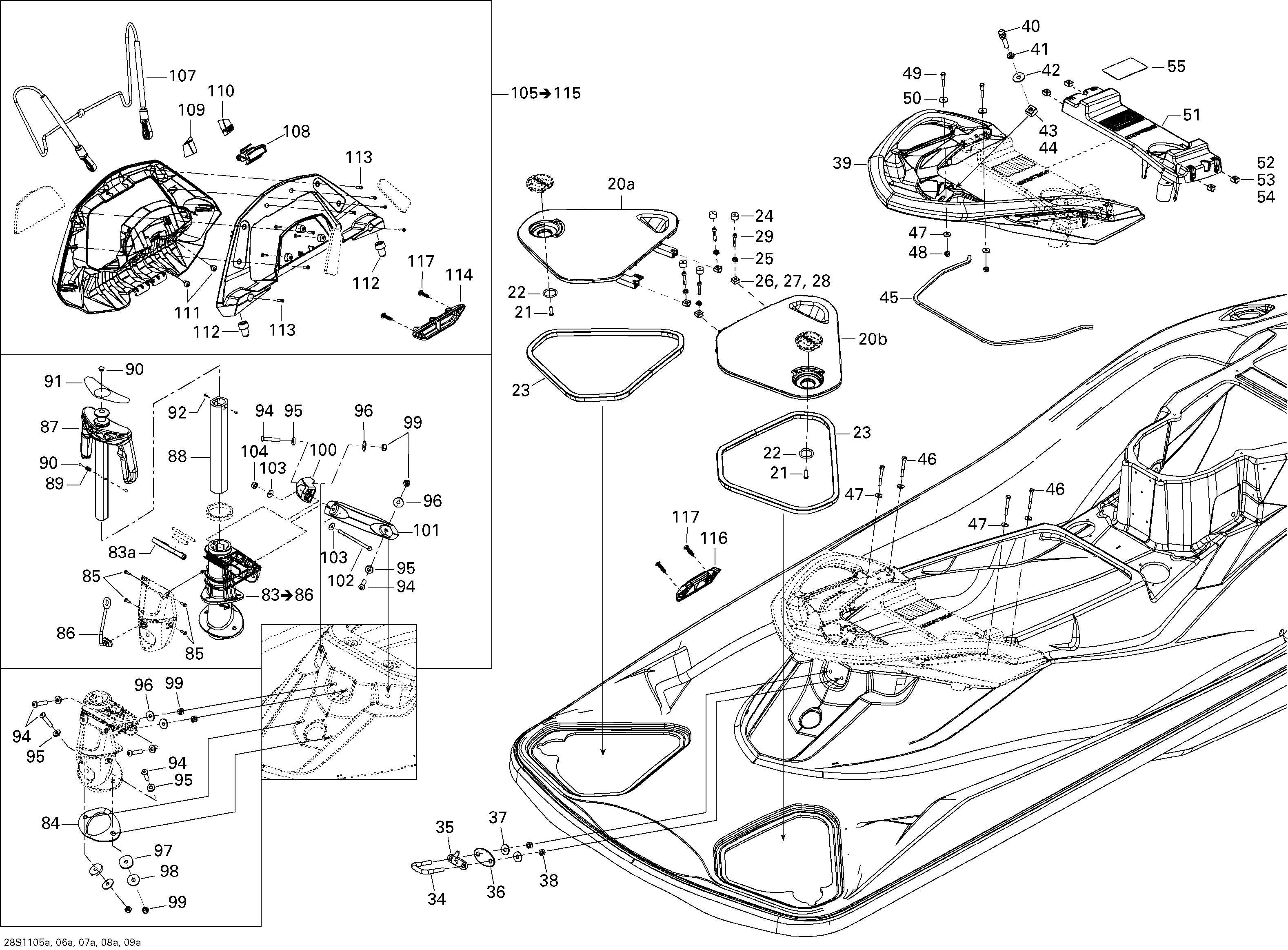

09- Body, Rear View 1 для BRP WAKE PRO 215 - 2011
-
№АртикулНазвание
-
20a291003368 LH Access Cover Ass'yLH Access Cover Ass'y
-
20b291003370 RH Access Cover Ass'yRH Access Cover Ass'y
-
21211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
22293300121 O-RingO-Ring
-
23293200133 Neoprene SealNeoprene Seal
-
24291003038 Rubber StopperRubber Stopper
-
25233161600 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
26269501166 Nut Housing Ass'yNut Housing Ass'y
-
27269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
28232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
29205063060 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
39291004622 Black Rear HandleBlack Rear Handle
-
40291002784 Seat StudSeat Stud
-
41232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
42234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
43271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
44232501200 Brass Elastic Stop Nut, M10Brass Elastic Stop Nut, M10
-
45293250218 GasketGasket
-
46207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
47234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
49207063560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
50250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
51291002947 Lower Deck Ass'yLower Deck Ass'y
-
52269501166 Nut Housing Ass'yNut Housing Ass'y
-
53269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
54232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
55219903184 Caution Engine OilCaution Engine Oil
-
83291002553 Sub-assembly SupportSub-assembly Support
-
83a293250183 StrapStrap
-
84293250151 SealSeal
-
85241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
86269501299 Rubber LatchRubber Latch
-
87291002812 Molded HandleMolded Handle
-
88291002642 Aluminum PostAluminum Post
-
89269501651 Spring BallSpring Ball
-
90293350062 Ball 1/4''Ball 1/4''
-
91219903137 Warning LabelWarning Label
-
92293150167 Type ''U'' Metallic Drive ScrewType ''U'' Metallic Drive Screw
-
94205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
95293050001 Flat WasherFlat Washer
-
96234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
97293830037 Rubber WasherRubber Washer
-
98250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
99232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
100291002711 LH Lateral ArmLH Lateral Arm
-
101291002712 RH Lateral ArmRH Lateral Arm
-
102230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
103234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
104232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
105291003101 Board Support KitBoard Support Kit
-
107291002979 Elastic Rope Ass'yElastic Rope Ass'y
-
108291002980 LatchLatch
-
109219903228 Warning WAKEWarning WAKE
-
110219903240 WAKE-PRO DecalWAKE-PRO Decal
-
111293830005 Rubber PlugRubber Plug
-
112293830119 Rubber BufferRubber Buffer
-
113250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
114291002864 Lower AnchorLower Anchor
-
116291002994 Upper AnchorUpper Anchor
-
117250000466 Torx Screw Plastite M6Torx Screw Plastite M6
