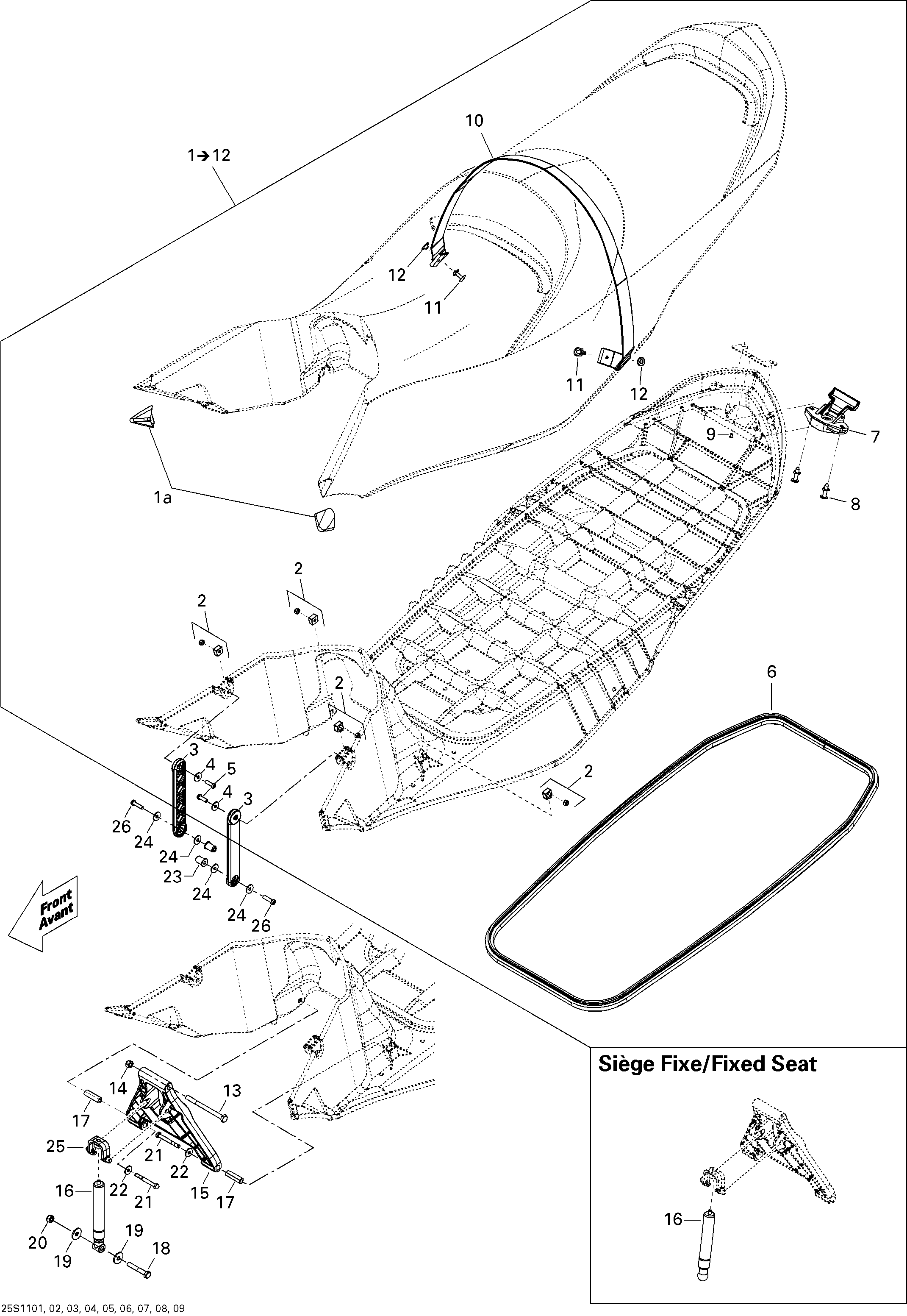

09- Seat для BRP RXT aS X & aS XRS 260 - 2011
-
№АртикулНазвание
-
1269002191 Seat Ass'y. Includes 1 to 12Seat Ass'y. Includes 1 to 12
-
1a284610046 Seat CornerSeat Corner
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
3296000299 Lateral Arm. Includes Spacer 269001588 (2x)Lateral Arm. Includes Spacer 269001588 (2x)
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5205462060 Socket Screw M6 X 20Socket Screw M6 X 20
-
6293200124 SealSeal
-
7269700116 Latch Ass'yLatch Ass'y
-
8293150151 Rivet 1/4''Rivet 1/4''
-
9293150143 Pop Rivet 1/8Pop Rivet 1/8
-
10269001676 Seat StrapSeat Strap
-
11293150067 RivetRivet
-
12293720067 GrommetGrommet
-
13230080060 Hex. Screw M8 X 100Hex. Screw M8 X 100
-
14232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
15269501699 Center ArmCenter Arm
-
16269001537 ShockShock
-
17269001589 SpacerSpacer
-
18207085060 Hex. Screw M8 X 50Hex. Screw M8 X 50
-
19234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
20232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
21207265560 Hex. Screw M6 X 55, Scotch GripHex. Screw M6 X 55, Scotch Grip
-
22234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
23250100083 Expansion Nut M6 X 1Expansion Nut M6 X 1
-
24234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25269002077 End FittingEnd Fitting
-
26205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
