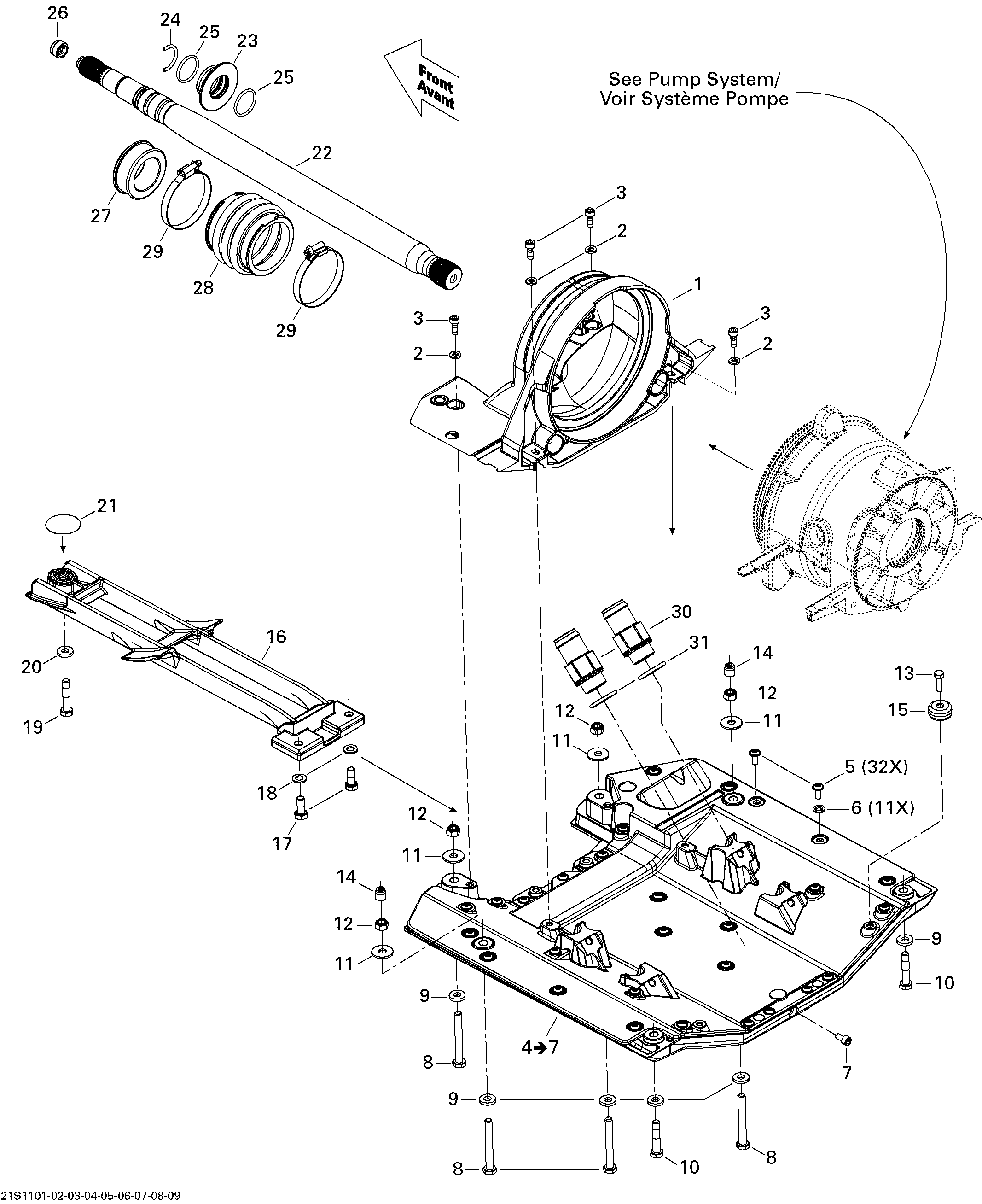

05- Propulsion для BRP RXT aS X & aS XRS 260 - 2011
-
№АртикулНазвание
-
1271001704 Pump SupportPump Support
-
2234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
4271001739 Riding Plate Ass'y. Includes 4 to 7Riding Plate Ass'y. Includes 4 to 7
-
5250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
6250200114 Sealing WasherSealing Washer
-
7250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
8207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
9293050001 Flat WasherFlat Washer
-
10250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
11234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
12232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
13207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
14415080200 Hose, PolyurethaneHose, Polyurethane
-
15271001487 Anode ZincAnode Zinc
-
16271001691 Pump GratePump Grate
-
17207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
18234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19250000530 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
20293050001 Flat WasherFlat Washer
-
21293830047 Protector DiskProtector Disk
-
22271001719 Drive ShaftDrive Shaft
-
23271001434 Support RingSupport Ring
-
24271001577 C-ClipC-Clip
-
25293300107 O-RingO-Ring
-
26272000173 Drive Shaft PlugDrive Shaft Plug
-
27271001420 Carbon RingCarbon Ring
-
28271001422 BellowBellow
-
29293650079 Norma ClampNorma Clamp
-
30293710124 Strait FittingStrait Fitting
-
31293300121 O-RingO-Ring
