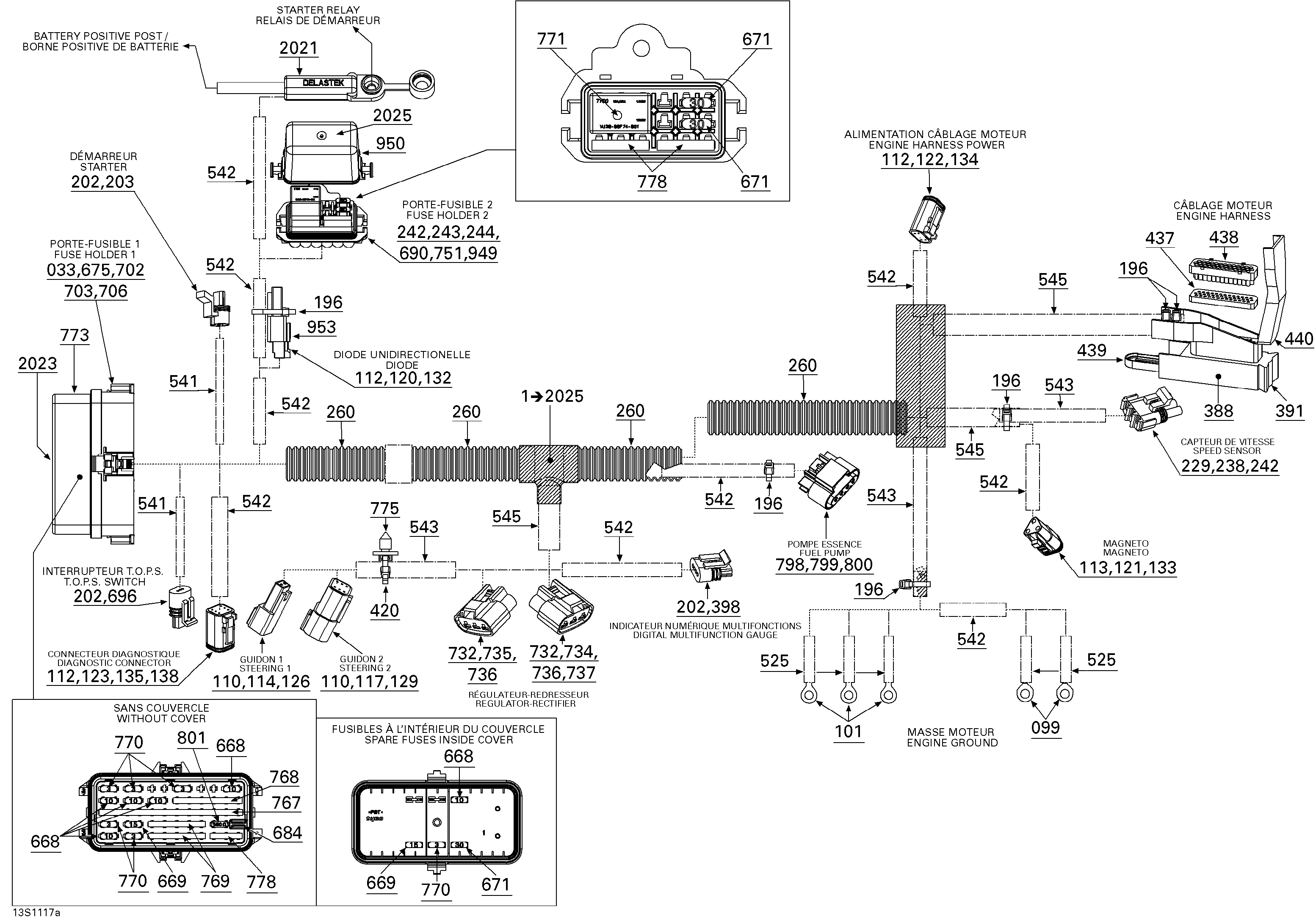

10- Electrical Harness 1 для BRP GTS Pro 130 - 2011
-
№АртикулНазвание
-
1278002272 Main Harness. Includes 1 to 2025Main Harness. Includes 1 to 2025
-
33278000999 Wire SealWire Seal
-
99278000992 Open BarrelOpen Barrel
-
101278001392 Open BarrelOpen Barrel
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
113278001661 Female TerminalFemale Terminal
-
114409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
117270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
120409207300 Female Connector, 2 CircuitsFemale Connector, 2 Circuits
-
121409207400 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
123278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
126409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
129278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
132409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
133409207200 Female LockFemale Lock
-
134278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
135278000737 Male Lock, 6 CircuitsMale Lock, 6 Circuits
-
138293000052 Sealing CapSealing Cap
-
196293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
229278000223 Female TerminalFemale Terminal
-
238278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
244278000216 Wire SealWire Seal
-
260515175319 Tubing 22 mmTubing 22 mm
-
388278001750 Female TerminalFemale Terminal
-
391278001751 Male Housing, 41 CircuitsMale Housing, 41 Circuits
-
398278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
420414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
437515175886 SealSeal
-
438515175883 LatchLatch
-
439515175884 LockLock
-
440515175885 CoverCover
-
525710000482 Shrink TubingShrink Tubing
-
541515175442 Tubing 6 mmTubing 6 mm
-
542409901700 Tubing 9 mmTubing 9 mm
-
543409902000 Tubing 12 mmTubing 12 mm
-
545415080000 Tubing 16 mmTubing 16 mm
-
668710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
669710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
690710000890 Female TerminalFemale Terminal
-
696278002064 Connector, 3 CircuitsConnector, 3 Circuits
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
735710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
751710000918 Female TerminalFemale Terminal
-
767278002165 Bus BarBus Bar
-
768278002165 Bus BarBus Bar
-
769278002165 Bus BarBus Bar
-
770710001008 Little Fuse, 3 AMPLittle Fuse, 3 AMP
-
771278002168 Relay, 30 AMPRelay, 30 AMP
-
773710001026 Fuse CoverFuse Cover
-
775293730018 Mount DartMount Dart
-
778278002165 Bus BarBus Bar
-
798278002185 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
799278002186 Wire SealWire Seal
-
800278002187 Female TerminalFemale Terminal
-
801278002188 Resistance 500 OHMSResistance 500 OHMS
-
949278002285 Fuse Box Ass'yFuse Box Ass'y
-
950278002286 Fuse Box CoverFuse Box Cover
-
953278002306 Diode CapDiode Cap
-
2021278002163 Battery CableBattery Cable
-
2023278002171 Fuse DecalFuse Decal
-
2025278002192 Fuse DecalFuse Decal
