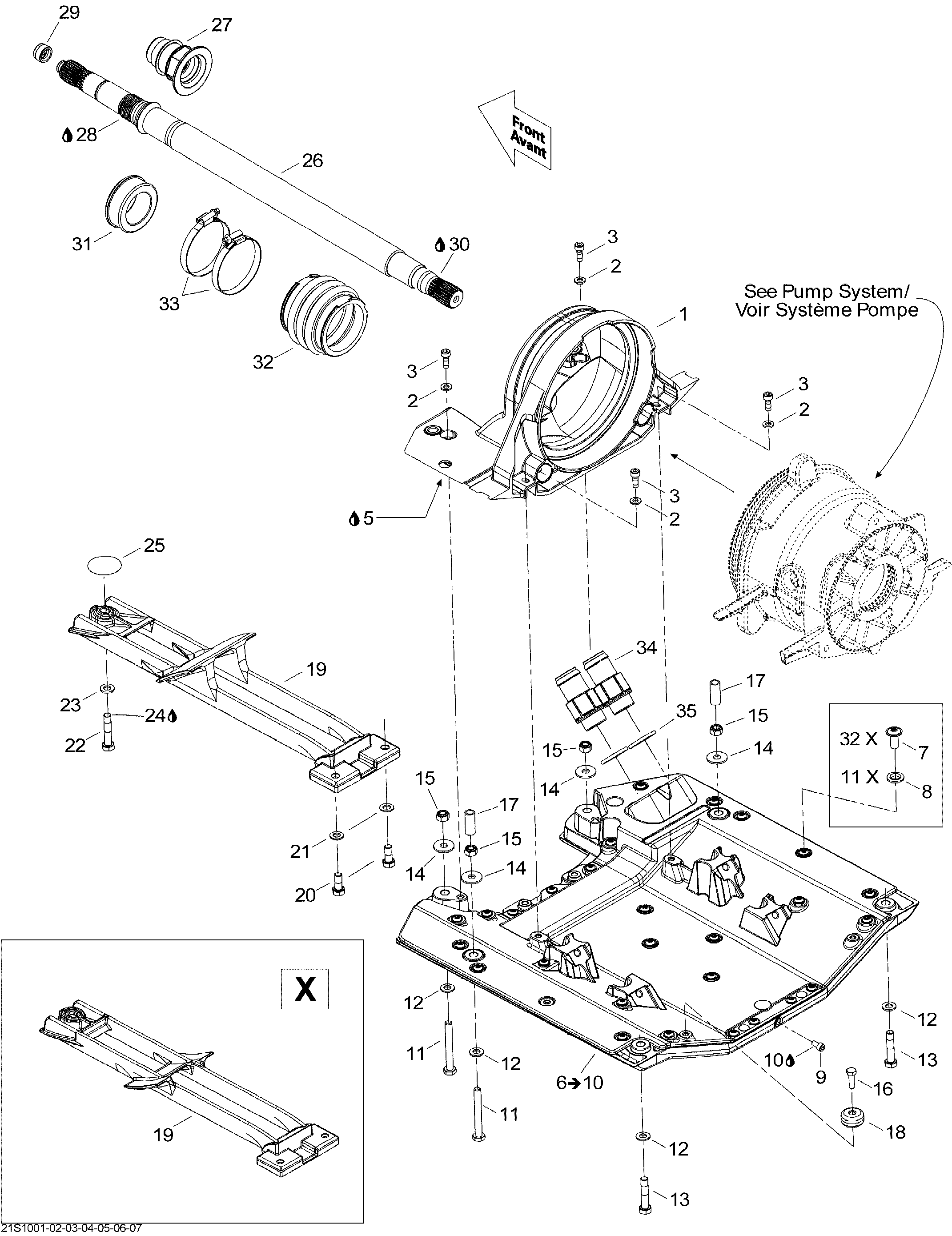

05- Propulsion для BRP Wake PRO 215 - 2010
-
№АртикулНазвание
-
1271001704 Pump SupportPump Support
-
2234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
3205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
5293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
6271001663 Riding Plate. Includes 6 to 10Riding Plate. Includes 6 to 10
-
7250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
8250200114 Sealing WasherSealing Washer
-
9250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
10293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
11207186560 Hex. Screw M8 X 65Hex. Screw M8 X 65
-
12234081600 Flat Washer 8 mmFlat Washer 8 mm
-
13250000230 Hex. Screw, Scotch Grip M8 X 40Hex. Screw, Scotch Grip M8 X 40
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
16207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
17415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
18271001487 Anode ZincAnode Zinc
-
19271001620 Pump GratePump Grate
-
20207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
21234081600 Flat Washer 8 mmFlat Washer 8 mm
-
22250000230 Hex. Screw, Scotch Grip M8 X 40Hex. Screw, Scotch Grip M8 X 40
-
23234081600 Flat Washer 8 mmFlat Washer 8 mm
-
24296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
25293830047 Protector DiskProtector Disk
-
26271001608 Drive ShaftDrive Shaft
-
27271001609 Floating RingFloating Ring
-
28293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
29272000173 Drive Shaft PlugDrive Shaft Plug
-
30293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
31271001420 Carbon RingCarbon Ring
-
32271001422 BellowBellow
-
33293650079 Norma ClampNorma Clamp
-
34293710124 Strait FittingStrait Fitting
-
35293300121 O-RingO-Ring
