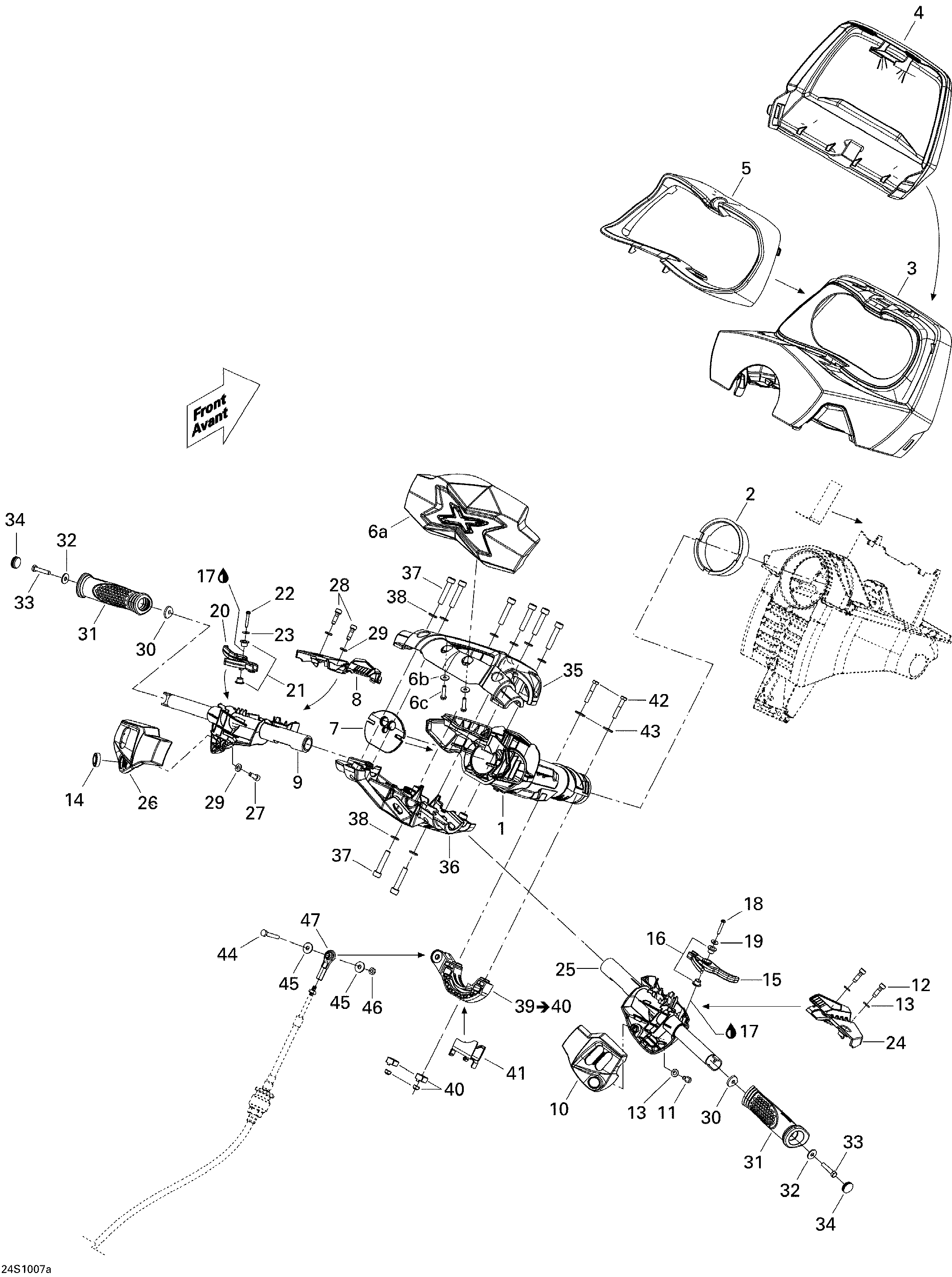

07- Steering 1 для BRP RXT-X and X RS 260 - 2010

  • №
    Артикул
    Название
  • 1
    277001685 Steering Column
    Steering Column
  • 2
    277001653 Wear Ring
    Wear Ring
  • 3
    277001612 Gauge Support
    Gauge Support
  • 4
    277001613 Gauge Support Cover
    Gauge Support Cover
  • 5
    277001630 Trim
    Trim
  • 6a
    277001683 Handle Pad
    Handle Pad
  • 6b
    234052600 Flat Washer 5 mm
    Flat Washer 5 mm
  • 6c
    211000023 Hex. Screw 10-14 X 7/8''
    Hex. Screw 10-14 X 7/8''
  • 7
    293720086 Grommet
    Grommet
  • 8
    277001686 LH Upper Housing
    LH Upper Housing
  • 9
    277001689 RH Lower Housing
    RH Lower Housing
  • 10
    277001718 RH Housing Cover
    RH Housing Cover
  • 11
    205061660 Socket Screw M6 X 16
    Socket Screw M6 X 16
  • 12
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 13
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 14
    277001676 Switch Knob, Red
    Switch Knob, Red
  • 15
    277001620 Throttle Handle
    Throttle Handle
  • 16
    293900091 Bushing
    Bushing
  • 17
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 18
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 19
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 20
    277001629 Reverse Handle
    Reverse Handle
  • 21
    293900091 Bushing
    Bushing
  • 22
    241142560 Hex. Flanged Screw K40 X 25
    Hex. Flanged Screw K40 X 25
  • 23
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 24
    277001687 LH Lower Housing
    LH Lower Housing
  • 25
    277001688 RH Upper Housing
    RH Upper Housing
  • 26
    277001715 LH Cover Housing
    LH Cover Housing
  • 27
    205061660 Socket Screw M6 X 16
    Socket Screw M6 X 16
  • 28
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 29
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 30
    277000554 Handle Grip Insert
    Handle Grip Insert
  • 31
    277001624 Handle Grip
    Handle Grip
  • 32
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 33
    250000002 Hex. Screw M6 X 30, Scotch Grip
    Hex. Screw M6 X 30, Scotch Grip
  • 34
    277000203 Cap, Black
    Cap, Black
  • 35
    277001708 Front Extension Bloc
    Front Extension Bloc
  • 36
    277001710 Rear Extension Bloc
    Rear Extension Bloc
  • 37
    205084060 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 38
    234080600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 39
    277001656 Support Ass'y. Includes 39 to 40
    Support Ass'y. Includes 39 to 40
  • 40
    269501166 Nut Housing Ass'y
    Nut Housing Ass'y
  • 41
    277001654 Spacer
    Spacer
  • 42
    207163560 Hex. Screw M6 X 35
    Hex. Screw M6 X 35
  • 43
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 44
    207064060 Hex. Screw M6 X 40
    Hex. Screw M6 X 40
  • 45
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 46
    232561200 Brass Elastic Stop Nut, M6
    Brass Elastic Stop Nut, M6
  • 47
    277000775 Ball Joint
    Ball Joint
