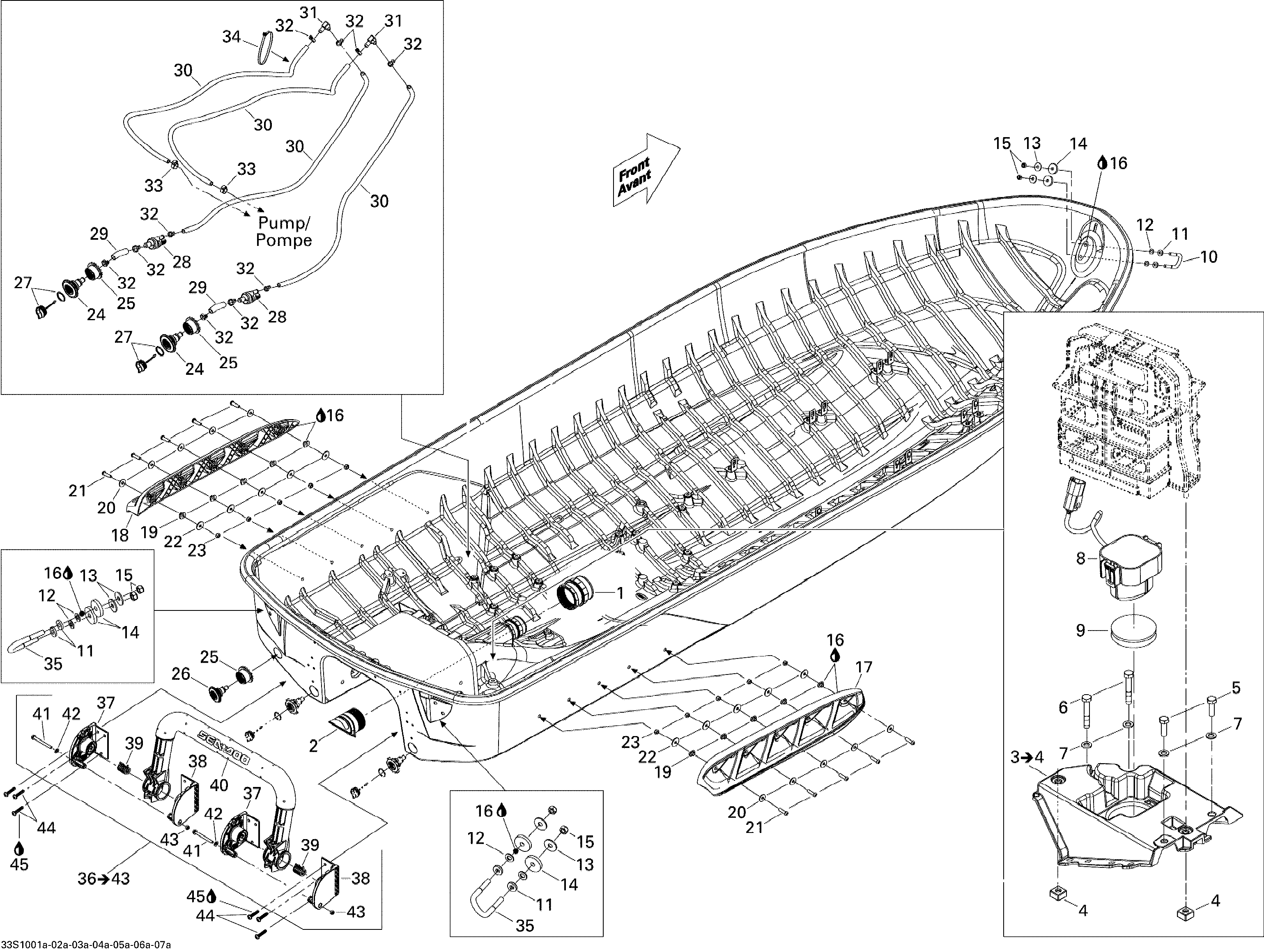

09- Hull 1 для BRP RXT iS 260 - 2010
‹-+›
-
№АртикулНазвание
-
1293450283 Inner Hull InsertInner Hull Insert
-
2293450282 Outer Hull InsertOuter Hull Insert
-
3278002343 Battery Base Ass'y. Includes 3 to 4Battery Base Ass'y. Includes 3 to 4
-
4269501387 Nut Housing Ass'yNut Housing Ass'y
-
5243163060 Flanged Hex. Screw M6.81 X 30Flanged Hex. Screw M6.81 X 30
-
6243165560 Flanged Hex. Screw M6.81 X 55Flanged Hex. Screw M6.81 X 55
-
7234080600 Flat Washer 8 mmFlat Washer 8 mm
-
10292000933 U-ClampU-Clamp
-
11293050001 Flat WasherFlat Washer
-
12234081100 Flat Washer 8 mmFlat Washer 8 mm
-
13250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
14293830037 Rubber WasherRubber Washer
-
15232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17292001378 RH SponsonRH Sponson
-
18292001377 LH SponsonLH Sponson
-
19292001349 Spacer SponsonSpacer Sponson
-
20234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
22250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
23232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
24292001315 Drain Neck Ass'yDrain Neck Ass'y
-
25292001371 BushingBushing
-
26292001317 Drain Neck Ass'y. Plug 292001352Drain Neck Ass'y. Plug 292001352
-
27292001352 Plug Drain Ass'yPlug Drain Ass'y
-
28292001310 Bailer Ass'yBailer Ass'y
-
29275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
30415080700 Polyurethane Hose, 8 mmPolyurethane Hose, 8 mm
-
31293710117 Elbow Fitting 90°Elbow Fitting 90°
-
32293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
33293650044 Oetiker ClampOetiker Clamp
-
34293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
35292000933 U-ClampU-Clamp
-
37292001201 Support ASupport A
-
38292001202 Support BSupport B
-
39292001259 SpringSpring
-
40292001204 Overmolded BarOvermolded Bar
-
41207066560 Hex. Screw M6 x 65Hex. Screw M6 x 65
-
42234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
43232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
44250000468 Torx ScrewTorx Screw
-
45293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
