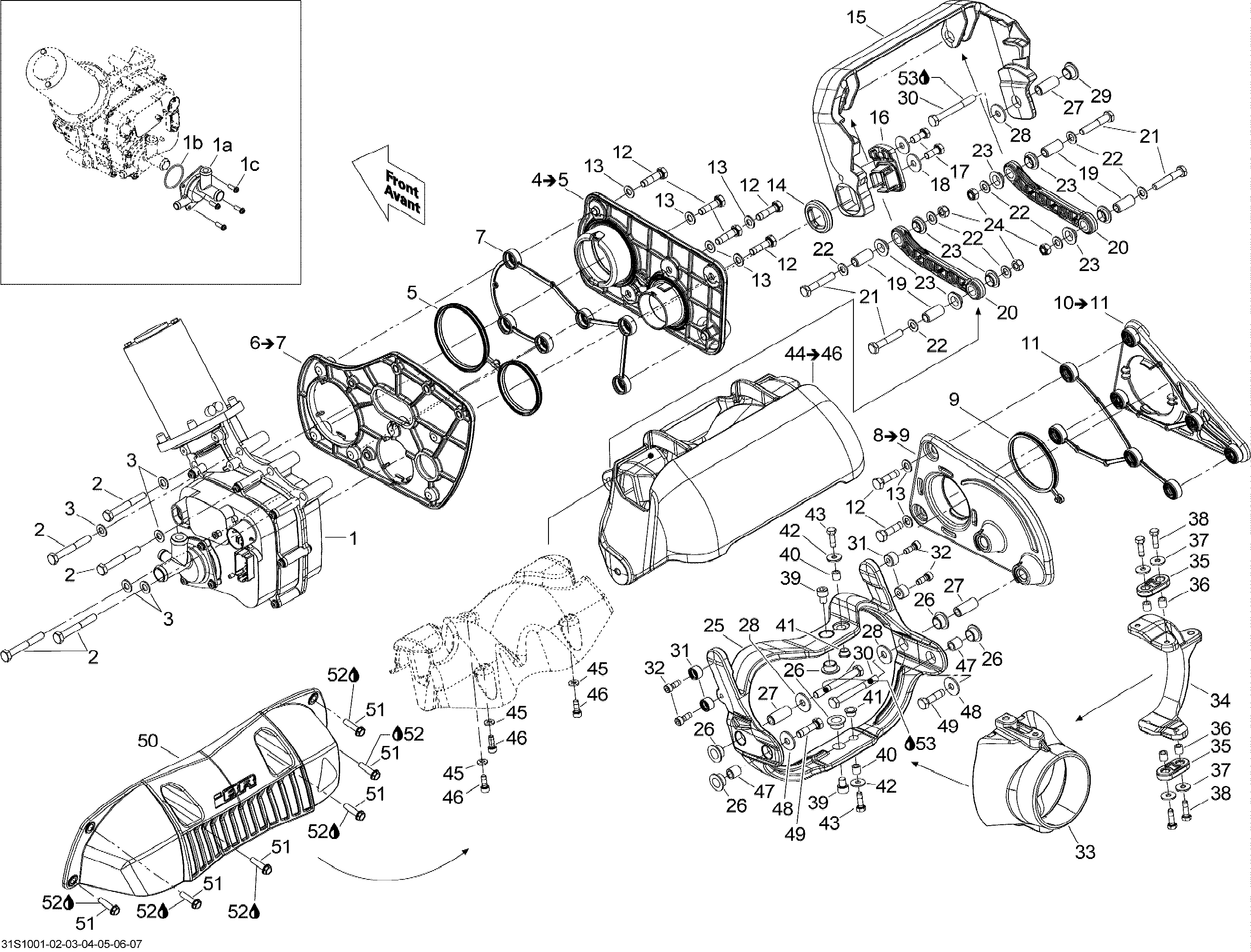

05- Reverse для BRP RXT 215 - 2010
-
№АртикулНазвание
-
1278002418 IBR Actuator. Includes 1 to 1cIBR Actuator. Includes 1 to 1c
-
1a296000317 Cooling CoverCooling Cover
-
1b278002474 O-RingO-Ring
-
1c278002475 Torx ScrewTorx Screw
-
2250000187 Hex. Screw M8 X 60, Scotch GripHex. Screw M8 X 60, Scotch Grip
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4268000067 LH Support Plate Ass'y. Includes 4 to 5LH Support Plate Ass'y. Includes 4 to 5
-
5268000046 LH Formed SealLH Formed Seal
-
6268000069 LH Fixing Plate Ass'y. Includes 6 to 7LH Fixing Plate Ass'y. Includes 6 to 7
-
7268000055 Formed Seal SpecialFormed Seal Special
-
8268000068 RH Support Plate Ass'y. Includes 8 to 9RH Support Plate Ass'y. Includes 8 to 9
-
9268000047 RH Formed SealRH Formed Seal
-
10268000070 RH Fixing Plate Ass'y. Includes 10 to 11RH Fixing Plate Ass'y. Includes 10 to 11
-
11268000056 RH Formed SealRH Formed Seal
-
12207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
13293050001 Flat WasherFlat Washer
-
14268000065 WasherWasher
-
15271001615 Black ''U'' ArmBlack ''U'' Arm
-
16268000057 Tighte BushingTighte Bushing
-
17207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19268000062 SpacerSpacer
-
20268000042 Linkage ArmLinkage Arm
-
21207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
22234081600 Flat Washer 8 mmFlat Washer 8 mm
-
23271000321 Venturi BushingVenturi Bushing
-
24232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
25268000033 Black Trimming RingBlack Trimming Ring
-
26293900007 Venturi BushingVenturi Bushing
-
27268000063 SpacerSpacer
-
28234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
29293900007 Venturi BushingVenturi Bushing
-
30207087060 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
31268000045 Friction SleeveFriction Sleeve
-
32205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
33267000397 Black Direction NozzleBlack Direction Nozzle
-
34268000064 Black Direction Nozzle LeverBlack Direction Nozzle Lever
-
35268000058 Direction Lever ArmDirection Lever Arm
-
36268000060 SpacerSpacer
-
37234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
38207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
39211000127 Socket Screw M8 X 10, Scotch GripSocket Screw M8 X 10, Scotch Grip
-
40268000060 SpacerSpacer
-
41268000059 BushingBushing
-
42234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
43207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
44268000048 Reverse Gate Ass'y. Includes 44 to 46Reverse Gate Ass'y. Includes 44 to 46
-
45234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
46205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
47271001039 SpacerSpacer
-
48234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
49207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
50268000066 GuardGuard
-
51243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
52296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
53293800060 Loctite 243, 10 mlLoctite 243, 10 ml
