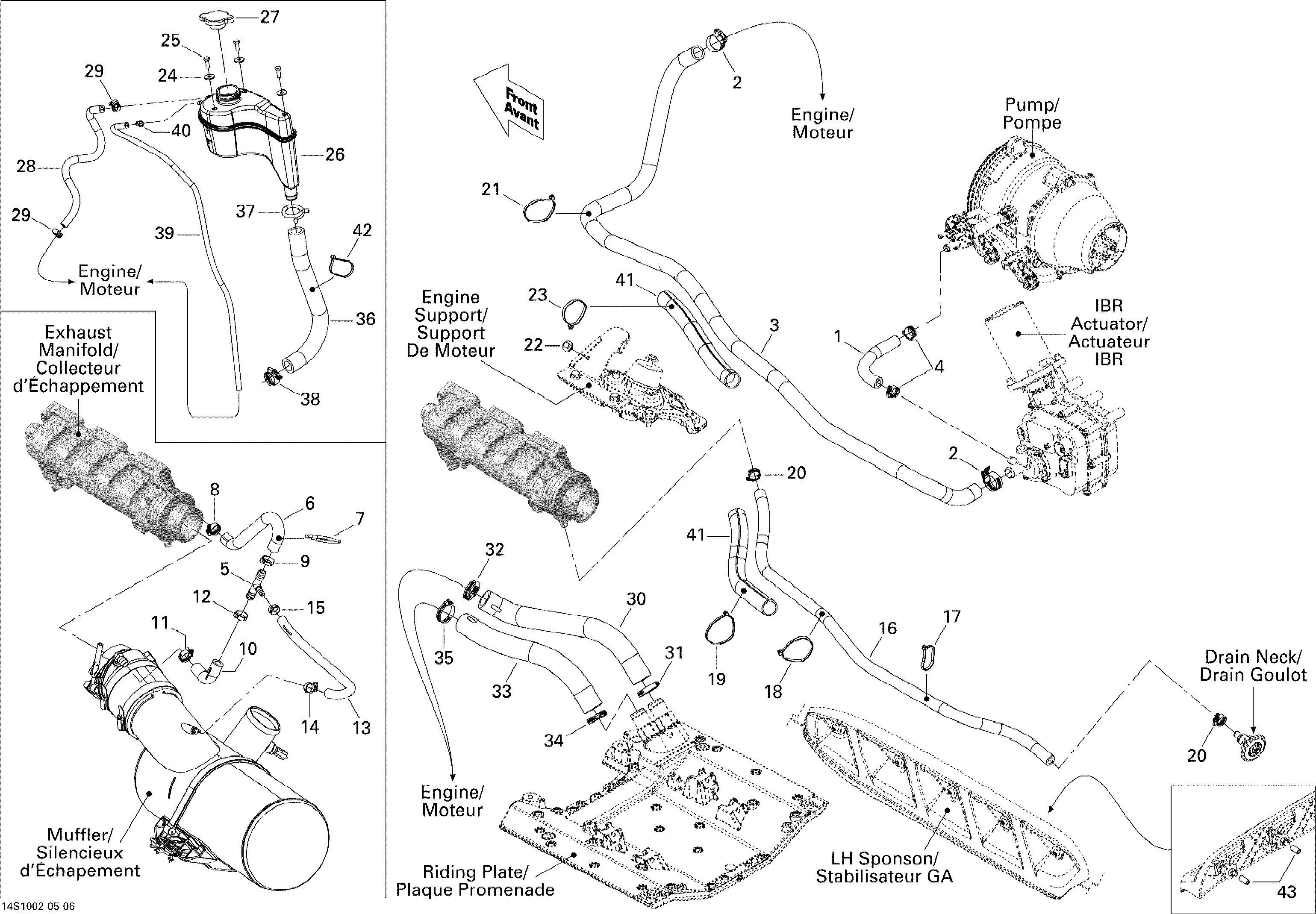

01- Cooling System для BRP RXT 215 - 2010
-
№АртикулНазвание
-
1276000237 Formed HoseFormed Hose
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3276000099 Hose 19 mmHose 19 mm
-
4293650172 Tridon Gear ClampTridon Gear Clamp
-
5293710116 T-FittingT-Fitting
-
6276000244 Formed HoseFormed Hose
-
7293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
8293650172 Tridon Gear ClampTridon Gear Clamp
-
9293650012 Oetiker ClampOetiker Clamp
-
10276000245 Lower Formed HoseLower Formed Hose
-
11293650172 Tridon Gear ClampTridon Gear Clamp
-
12293650012 Oetiker ClampOetiker Clamp
-
13276000246 Formed HoseFormed Hose
-
14293650171 Tridon Gear ClampTridon Gear Clamp
-
15293650030 Oetiker ClampOetiker Clamp
-
16276000151 Hose 12.5 mmHose 12.5 mm
-
17293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
18293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
19293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
20293650172 Tridon Gear ClampTridon Gear Clamp
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22293730040 Mount DartMount Dart
-
23293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
24234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
26276000265 Coolant TankCoolant Tank
-
27276000100 Pressure Cap Ass'yPressure Cap Ass'y
-
28275500549 Hose 1/4''Hose 1/4''
-
29293650170 Tridon Gear ClampTridon Gear Clamp
-
30276000240 Radiator HoseRadiator Hose
-
31293650185 Tridon Gear ClampTridon Gear Clamp
-
32293650185 Tridon Gear ClampTridon Gear Clamp
-
33276000241 Radiator HoseRadiator Hose
-
34293650185 Tridon Gear ClampTridon Gear Clamp
-
35293650185 Tridon Gear ClampTridon Gear Clamp
-
36276000099 Hose 19 mmHose 19 mm
-
37293650115 Spring ClampSpring Clamp
-
38293650019 Tridon Gear ClampTridon Gear Clamp
-
39415080200 Hose, PolyurethaneHose, Polyurethane
-
40293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
41409902200 Tubing 25 mmTubing 25 mm
-
42414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
43415080200 Hose, PolyurethaneHose, Polyurethane
