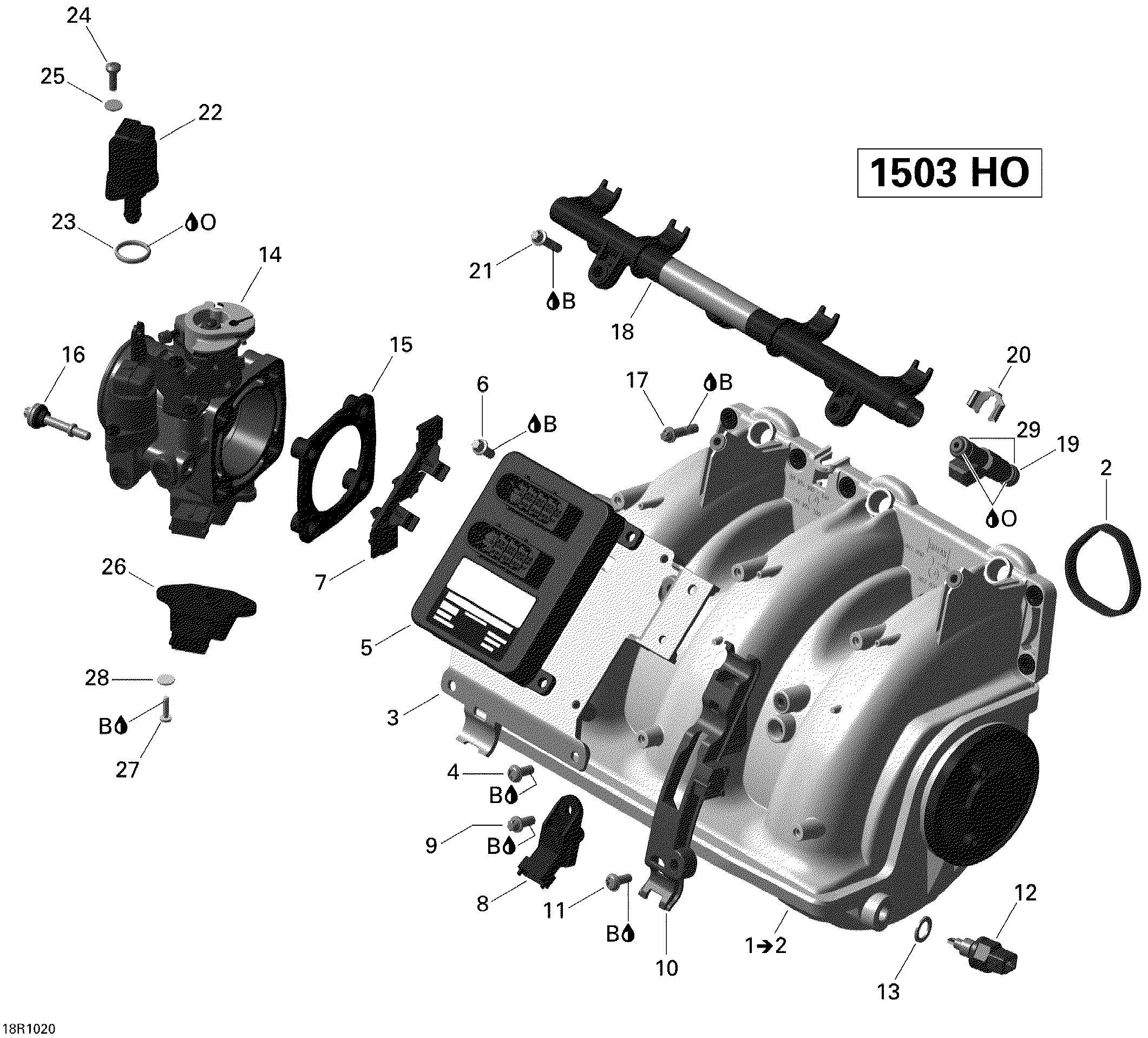

02- Air Intake Manifold And Throttle Body V1 для BRP RXP-X 255 and 255 RS - 2010
-
№АртикулНазвание
-
1420867951 Induction Manifold. Includes 1 to 2Induction Manifold. Includes 1 to 2
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
5420665861 Electronic BoxElectronic Box
-
6420641583 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420660402 Connector BracketConnector Bracket
-
8420274057 Pressure SensorPressure Sensor
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10420660410 Wiring SupportWiring Support
-
11420641583 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
12420222423 Temperature SensorTemperature Sensor
-
13420250015 Washer, CopperWasher, Copper
-
14420892450 Throttle BodyThrottle Body
-
15420950792 Rubber GasketRubber Gasket
-
16420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
17420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
18420874394 Fuel Rail Ass'yFuel Rail Ass'y
-
19420874432 Fuel InjectorFuel Injector
-
20420851531 Injector ClipInjector Clip
-
21420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
22420963051 Idle Bypass ValveIdle Bypass Valve
-
23420631780 O-RingO-Ring
-
24420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
25420845710 Snap RingSnap Ring
-
26270000251 Position SensorPosition Sensor
-
27208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
28234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
29420631220 O-RingO-Ring
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
