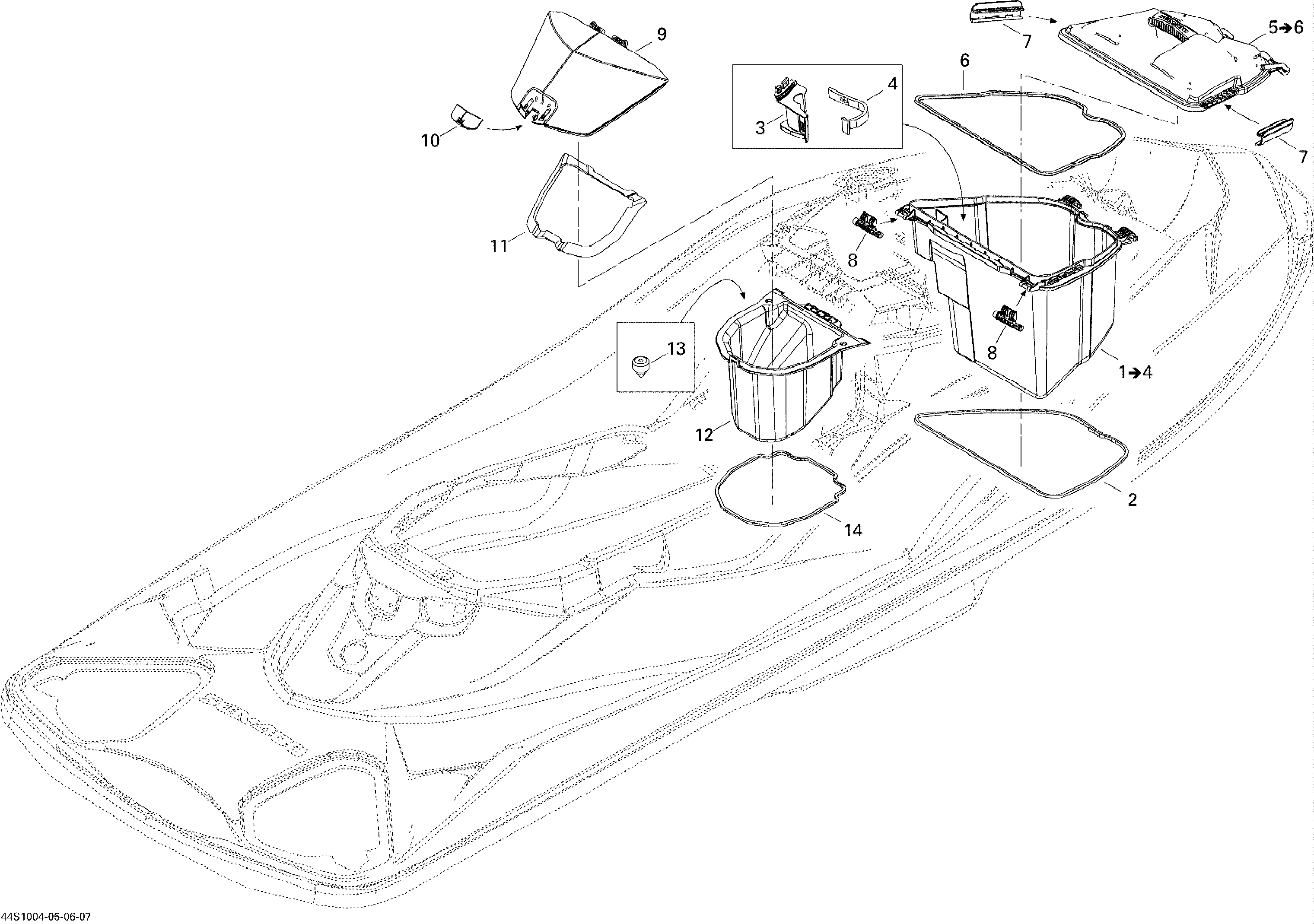

09- Storage Compartments для BRP GTX 155 - 2010
-
№АртикулНазвание
-
1264000012 Storage Tray. Includes 1 to 4Storage Tray. Includes 1 to 4
-
2293250161 GasketGasket
-
3269501501 Extinguisher SupportExtinguisher Support
-
4269500408 StrapStrap
-
5264000009 Storage Bin Cover Ass'y. Includes 5 to 6Storage Bin Cover Ass'y. Includes 5 to 6
-
6293250210 Neoprene SealNeoprene Seal
-
7269501609 ClipClip
-
8264000024 LatchLatch
-
9264000052 Glove Door, Scarlet RedGlove Door, Scarlet Red
-
10264000019 Latch, BlackLatch, Black
-
11293250204 GasketGasket
-
12264000053 Gloves Box Ass'y. Includes 12 a 14Gloves Box Ass'y. Includes 12 a 14
-
13293830005 Rubber Plug, BlackRubber Plug, Black
-
14293250143 SealSeal
