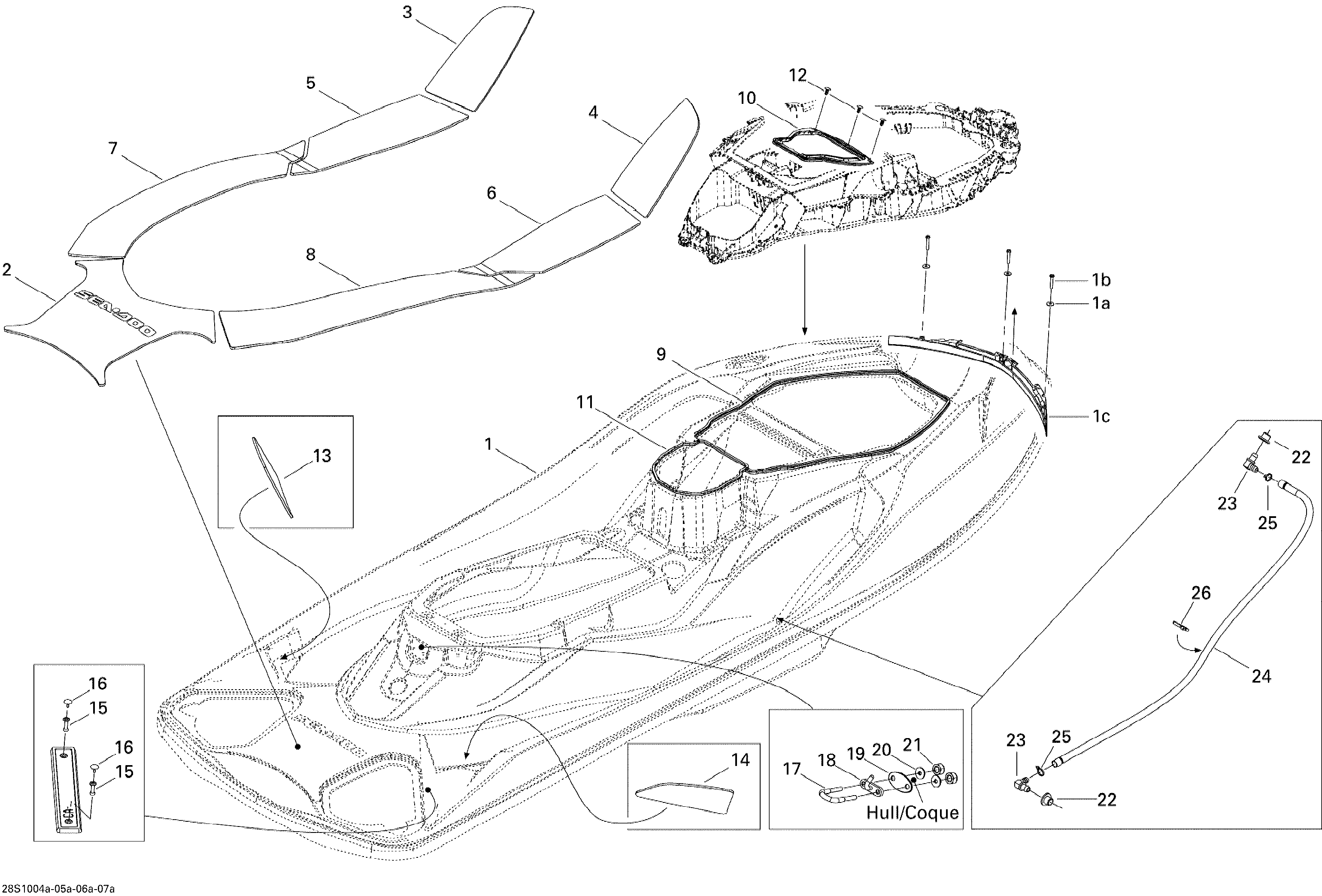

09- Body, Rear View 1 для BRP GTX 155 - 2010
-
№АртикулНазвание
-
1a234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
1b241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
1c291002818 Deck NoseDeck Nose
-
2291002625 Rear Plat-Form CarpetRear Plat-Form Carpet
-
3291002930 LH Front CarpetLH Front Carpet
-
4291002931 RH Front CarpetRH Front Carpet
-
5291002932 LH Center CarpetLH Center Carpet
-
6291002933 RH Center CarpetRH Center Carpet
-
7291002934 LH Rear CarpetLH Rear Carpet
-
8291002935 RH Rear CarpetRH Rear Carpet
-
9293250213 GasketGasket
-
10293250220 SealSeal
-
11293250200 Neoprene SealNeoprene Seal
-
12293730010 Dart, BlackDart, Black
-
13291002626 LH NonskidLH Nonskid
-
14291002937 RH NonskidRH Nonskid
-
15293150016 Rivet 1/8''Rivet 1/8''
-
16293000014 Snap CapSnap Cap
-
17292000933 U-ClampU-Clamp
-
18291002351 HookHook
-
19291001386 Finition Plate, BlackFinition Plate, Black
-
20234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
21232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
22513033435 GrommetGrommet
-
23414523600 Elbow FittingElbow Fitting
-
24275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
25293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
