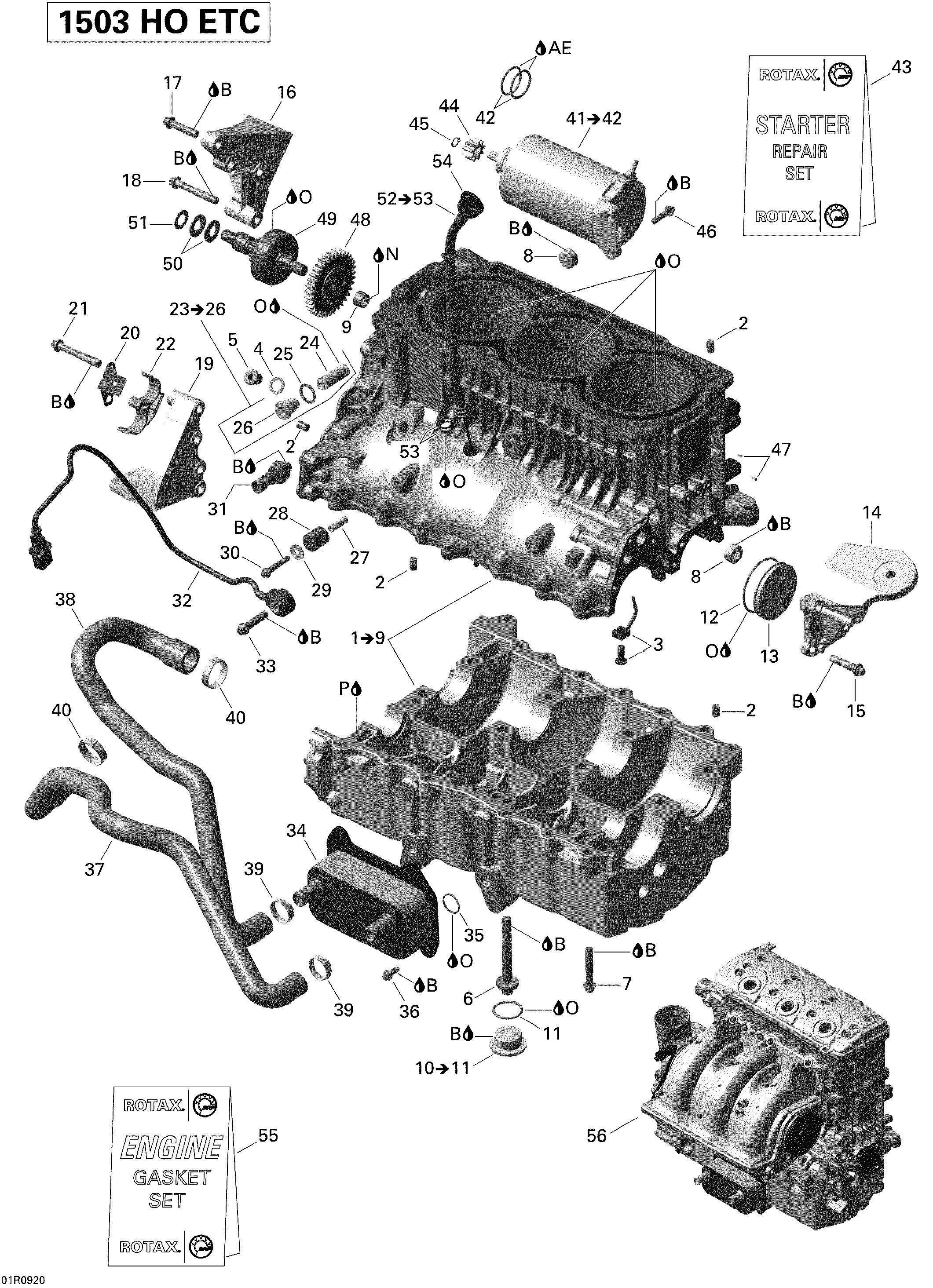

01- Engine Block для BRP RXT iS 255 - 2009
‹-+›
-
№АртикулНазвание
-
1420892461 Cylinder Block With Sleeves. Includes 1 to 9Cylinder Block With Sleeves. Includes 1 to 9
-
2420632010 Pin 8 X 12Pin 8 X 12
-
3420956778 Oil Hole AdaptorOil Hole Adaptor
-
4420250015 Sealing RingSealing Ring
-
5420841923 Plug Screw M12Plug Screw M12
-
6420641120 Torx Flanged Screw M10 X 82Torx Flanged Screw M10 X 82
-
7420641203 Torx Flanged Screw M8 X 45Torx Flanged Screw M8 X 45
-
8420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
9420232480 Needle BushingNeedle Bushing
-
10420641171 Plug Screw M30 X 1.5. Includes 10 to 11Plug Screw M30 X 1.5. Includes 10 to 11
-
11420631300 O-RingO-Ring
-
12420430405 O-RingO-Ring
-
13420660110 Plug CoverPlug Cover
-
14420811791 Front Engine BracketFront Engine Bracket
-
15420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
16420811786 Engine Bracket PTO, ExhaustEngine Bracket PTO, Exhaust
-
17420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
18420641213 Torx Flanged Screw M8 X 55Torx Flanged Screw M8 X 55
-
19420811781 Engine Bracket PTO, IntakeEngine Bracket PTO, Intake
-
20420851740 Retaining PlateRetaining Plate
-
21420641213 Torx Flanged Screw M8 X 55Torx Flanged Screw M8 X 55
-
22420660290 Hose BracketHose Bracket
-
23420236259 Chain Tensioner With Screw. Includes 23 to 26Chain Tensioner With Screw. Includes 23 to 26
-
25420430623 Gasket RingGasket Ring
-
27420847971 SpacerSpacer
-
28420660090 Rubber BracketRubber Bracket
-
29420827968 Flat Washer M6Flat Washer M6
-
30420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
31420856532 Oil Pressure SwitchOil Pressure Switch
-
32270000484 Noise SensorNoise Sensor
-
33420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
34420888852 Oil RadiatorOil Radiator
-
35420250055 O-RingO-Ring
-
36420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
37420922798 Formed HoseFormed Hose
-
38420922792 Formed HoseFormed Hose
-
39420851663 Gear ClampGear Clamp
-
40420851673 Gear ClampGear Clamp
-
41420888996 Electric Starter Ass'y. Includes 41 to 42Electric Starter Ass'y. Includes 41 to 42
-
42420631310 O-RingO-Ring
-
43420664712 Carbon Brush SetCarbon Brush Set
-
44420834522 Starter Gear, 9 TeethStarter Gear, 9 Teeth
-
45420845600 Retaining RingRetaining Ring
-
46420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
47420249073 Grooved PinGrooved Pin
-
48420889872 Friction ClutchFriction Clutch
-
49420890639 Bendix StarterBendix Starter
-
50420238300 Spring WasherSpring Washer
-
51420827261 Thrust WasherThrust Washer
-
52420956944 Oil Level Tube. Includes 52 to 53Oil Level Tube. Includes 52 to 53
-
53420950810 O-RingO-Ring
-
54420956933 Oil Level GaugeOil Level Gauge
-
55420889773 Engine Gasket SetEngine Gasket Set
-
56420150365 Engine Long BlockEngine Long Block
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
AE293550030 Grease, Super LubeGrease, Super Lube
