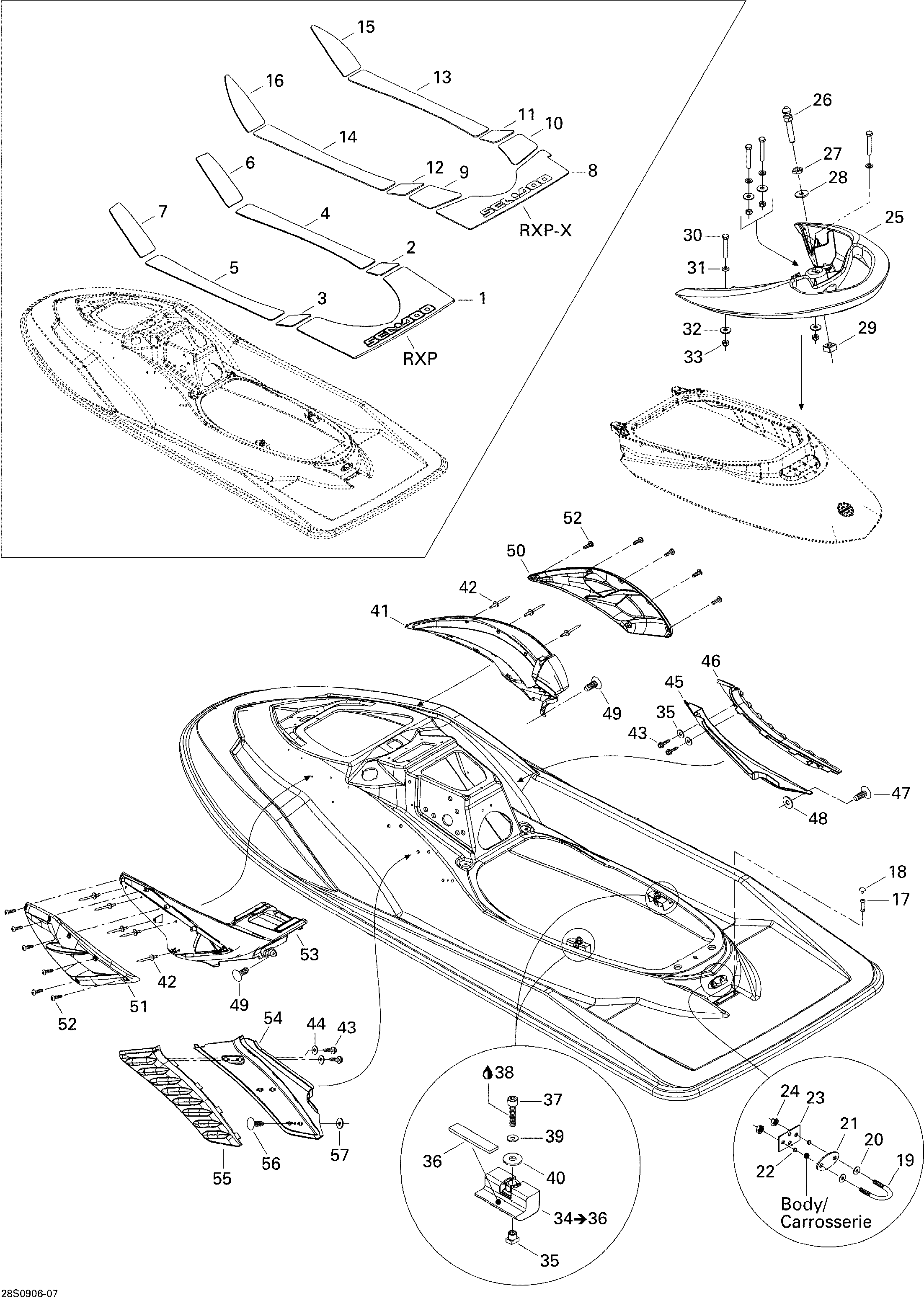

09- Body, Rear View для BRP RXP 215 - 2009
-
№АртикулНазвание
-
1291002333 Platforme CarpetPlatforme Carpet
-
2291002469 RH Rear CarpetRH Rear Carpet
-
3291002470 LH Rear CarpetLH Rear Carpet
-
4291002471 RH Center CarpetRH Center Carpet
-
5291002472 LH Center CarpetLH Center Carpet
-
6291002473 RH Front CarpetRH Front Carpet
-
7291002474 LH Front CarpetLH Front Carpet
-
17293150016 Rivet 1/8''Rivet 1/8''
-
18293000014 Snap CapSnap Cap
-
19292000011 U-ClampU-Clamp
-
20293050001 Flat WasherFlat Washer
-
21291001386 Finition Plate, BlackFinition Plate, Black
-
22293300123 O-RingO-Ring
-
23291001387 Retainer PlateRetainer Plate
-
24232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
25269000812 Grab HandleGrab Handle
-
26291000691 Latch StudLatch Stud
-
27232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
28234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
29271000598 Nut Housing Ass'yNut Housing Ass'y
-
30207085560 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
31234081600 Flat Washer 8 mmFlat Washer 8 mm
-
32234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
33232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
34291001931 Link Bridge Ass'yLink Bridge Ass'y
-
35211100033 Square Nut M8Square Nut M8
-
36291001932 PadPad
-
37205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
38293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
39250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
40293830037 Rubber WasherRubber Washer
-
41291002452 RH MouldingRH Moulding
-
42293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
43211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
44211200055 Flat Washer, Stainless/NeopreneFlat Washer, Stainless/Neoprene
-
45291002456 RH MouldingRH Moulding
-
46269001296 RH Knee PadRH Knee Pad
-
47293730006 Dart, BlackDart, Black
-
48250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
49293730006 Dart, BlackDart, Black
-
50273000231 RH GrillRH Grill
-
51273000232 LH GrillLH Grill
-
52250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
53291002458 LH MouldingLH Moulding
-
54291002462 LH MouldingLH Moulding
-
55269001295 LH Knee PadLH Knee Pad
-
56293730006 Dart, BlackDart, Black
-
57250200024 Rubber Washer 5 mmRubber Washer 5 mm
