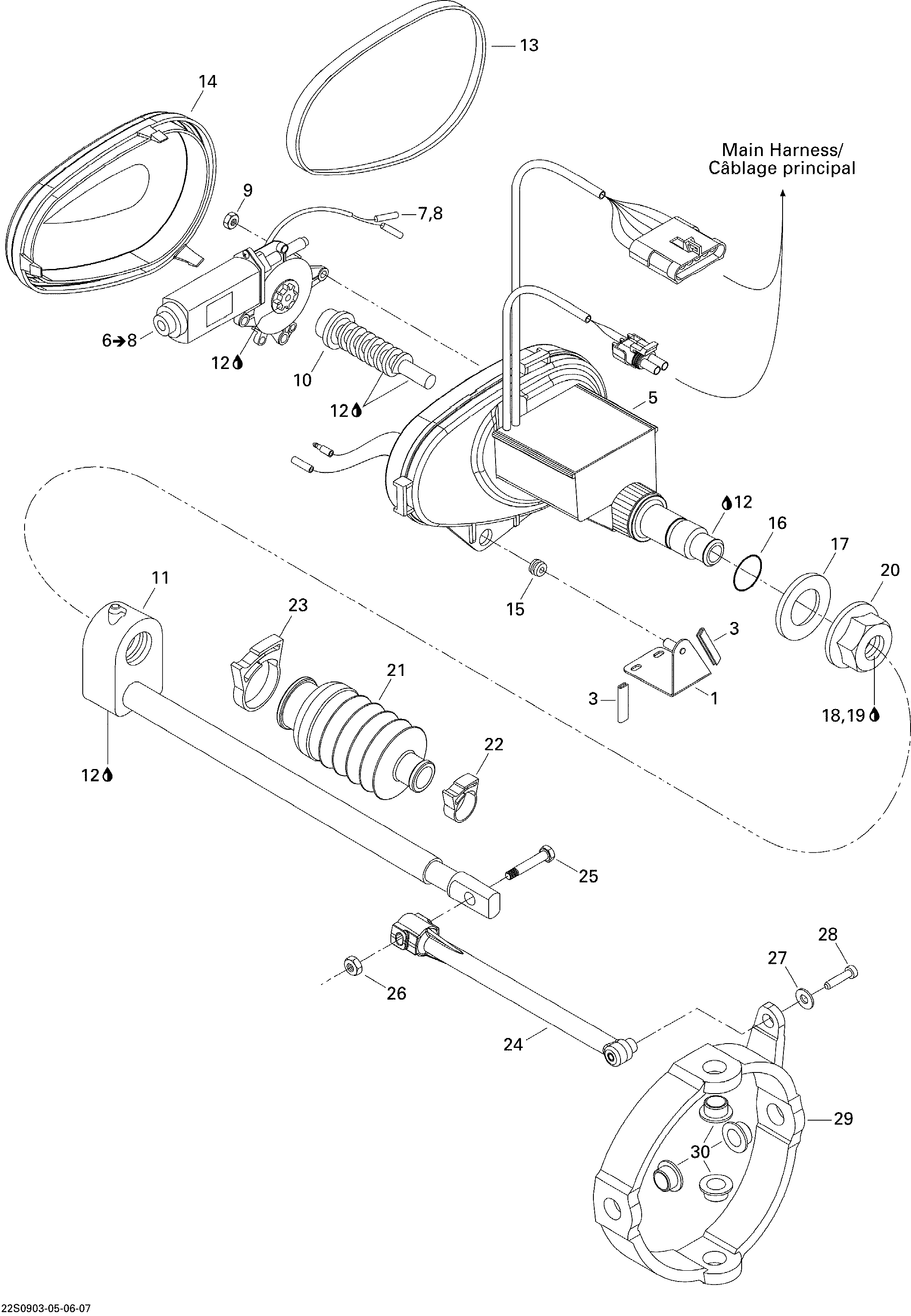

05- Trim, Electrical для BRP RXP 215 - 2009
-
№АртикулНазвание
-
1292000250 V.T.S. Support Ass'YV.T.S. Support Ass'Y
-
3271000110 Protection TrimProtection Trim
-
5278001605 V.T.S HousingV.T.S Housing
-
6278001292 V.t.s. Motor Ass'y. Includes 6 to 8V.t.s. Motor Ass'y. Includes 6 to 8
-
7278000231 Insulation SheathInsulation Sheath
-
8278000230 Male TerminalMale Terminal
-
9232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10278000428 Worm ScrewWorm Screw
-
11278001698 Sliding Block Ass'ySliding Block Ass'y
-
12293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
13293200027 GasketGasket
-
14278000595 V.T.S. CoverV.T.S. Cover
-
15293720015 GrommetGrommet
-
16293300044 O-RingO-Ring
-
17293830027 Seal WasherSeal Washer
-
18293800041 Loctite, Primer N, 128 GLoctite, Primer N, 128 G
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20211100020 Special Nut M27Special Nut M27
-
21271000459 Protector HoseProtector Hose
-
22293650082 ClampClamp
-
23293650083 ClampClamp
-
24271001179 V.T.S. RodV.T.S. Rod
-
25250000173 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
26232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
27234052600 Flat Washer 5 mmFlat Washer 5 mm
-
28250000018 Pivot ScrewPivot Screw
-
29266000013 Trim Ring, BlackTrim Ring, Black
-
30293900007 Venturi BushingVenturi Bushing
