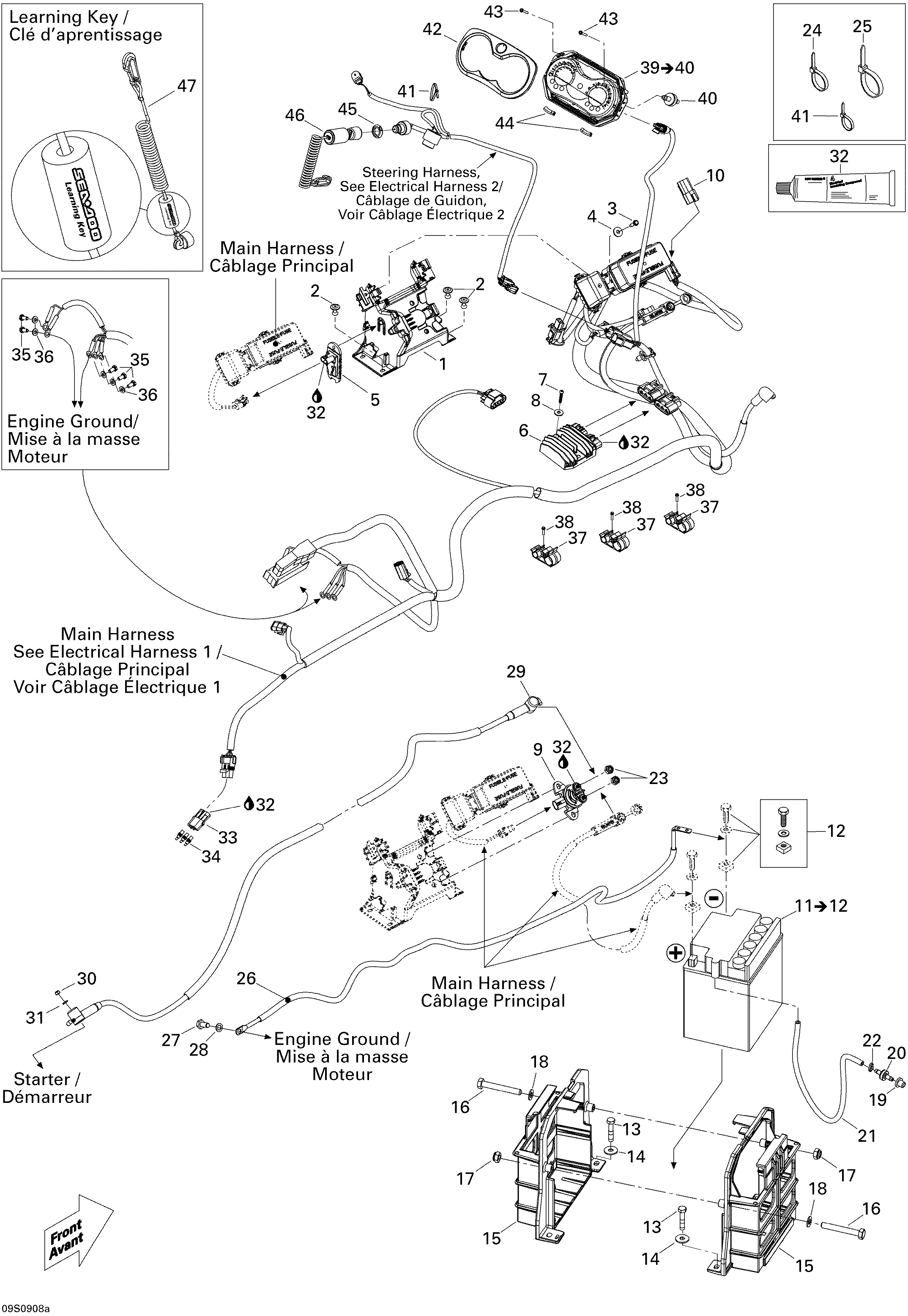

10- Electrical System STD для BRP GTI 130 - 2009
-
№АртикулНазвание
-
1278002157 Module SupportModule Support
-
2293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
3211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5278001992 Interrupter T.O.P.S.Interrupter T.O.P.S.
-
6710001103 Voltage RegulatorVoltage Regulator
-
7250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
8234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9278002347 Starter RelayStarter Relay
-
10278002148 Diagnostic Connector CapDiagnostic Connector Cap
-
11278001882 Battery, 30 Amperes. Includes 11 to 12Battery, 30 Amperes. Includes 11 to 12
-
12295500849 Battery Fastener KitBattery Fastener Kit
-
13207284060 Hex. Screw M8 X 40, Scotch GripHex. Screw M8 X 40, Scotch Grip
-
14234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
15278002339 Battery SupportBattery Support
-
16207164560 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
17232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
18234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
19293720029 GrommetGrommet
-
20275500499 Check ValveCheck Valve
-
21275500446 Hose 6 mmHose 6 mm
-
22293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
23232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26278002177 Ground Cable Ass'yGround Cable Ass'y
-
27207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
28234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
29278002267 Starter CableStarter Cable
-
30232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
31234061600 Flat Washer M6Flat Washer M6
-
32293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
33278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
34278000216 Wire SealWire Seal
-
35207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
36234061600 Flat Washer M6Flat Washer M6
-
37275500553 RetainerRetainer
-
38241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
39278002273 Digital Multifunction Gauge. Includes 39 to 40Digital Multifunction Gauge. Includes 39 to 40
-
40275500398 Check ValveCheck Valve
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
42278002135 Gauge Bezel, BlackGauge Bezel, Black
-
43241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
44293830113 TrimTrim
-
45278000508 Safety Switch NutSafety Switch Nut
-
46278002199 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
47278002406 Safety Lanyard, Learning KeySafety Lanyard, Learning Key
