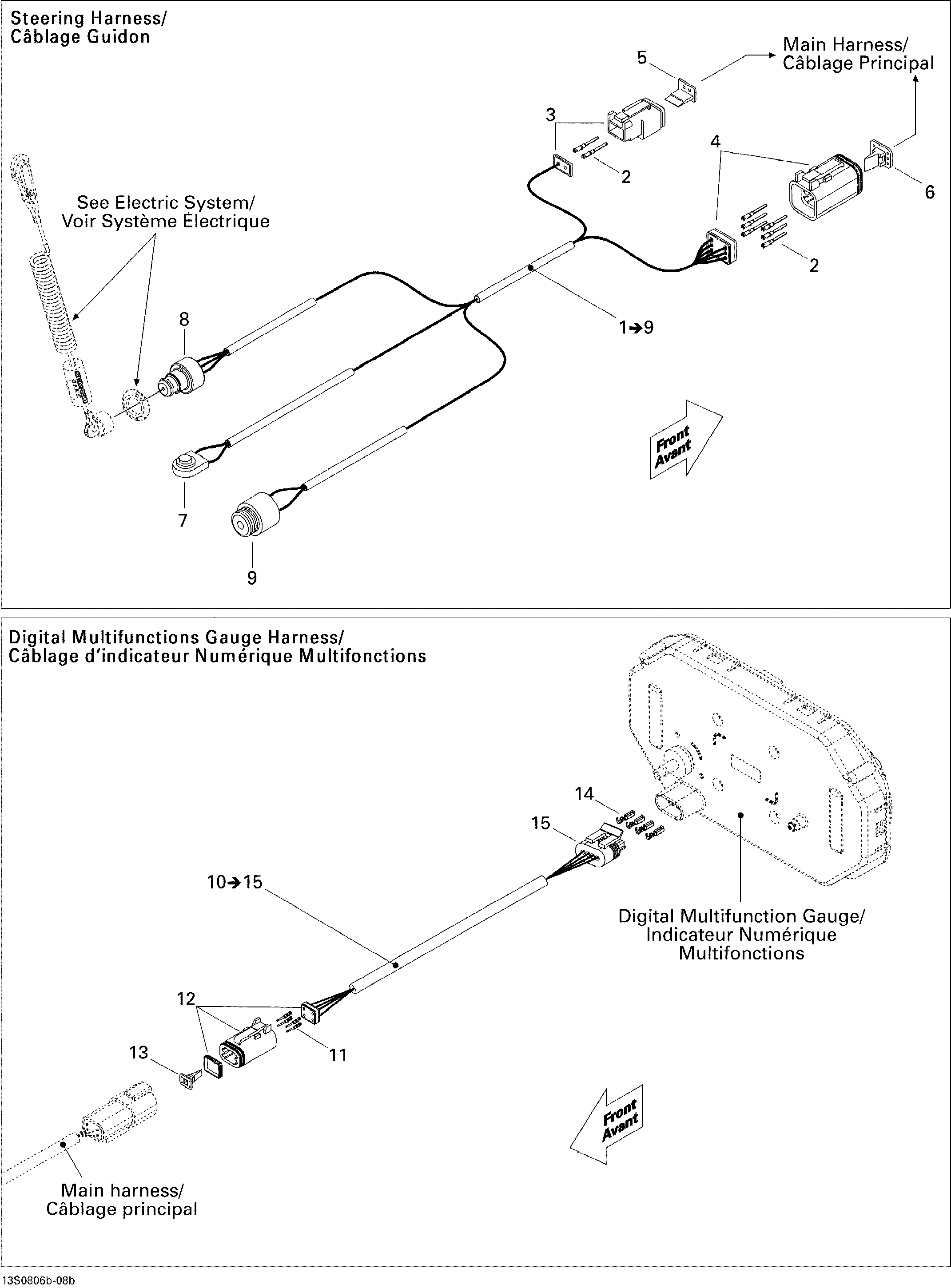

10- Electrical Harness 2 для BRP RXT 215 - 2008

  • №
    Артикул
    Название
  • 1
    278002383 Steering Harness Ass'y. Includes 1 to 9
    Steering Harness Ass'y. Includes 1 to 9
  • 2
    278000632 Female Terminal
    Female Terminal
  • 3
    409207300 Female Connector, 2 Circuits
    Female Connector, 2 Circuits
  • 4
    278000736 Male Connector, 6 Circuits
    Male Connector, 6 Circuits
  • 5
    409207100 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 6
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 7
    278001733 Start/Stop Switch
    Start/Stop Switch
  • 8
    278002350 Safety Switch
    Safety Switch
  • 9
    278002290 Buzzer
    Buzzer
  • 10
    278002111 Digital Multifunction Gauge Harness. Includes 10 to 15
    Digital Multifunction Gauge Harness. Includes 10 to 15
  • 11
    278000632 Female Terminal
    Female Terminal
  • 12
    278000739 Male Connector, 4 Circuits
    Male Connector, 4 Circuits
  • 13
    278000738 Male Lock, 4 Circuits
    Male Lock, 4 Circuits
  • 14
    278001114 Female Terminal
    Female Terminal
  • 15
    278001308 Male Connector, 4 Circuits
    Male Connector, 4 Circuits
