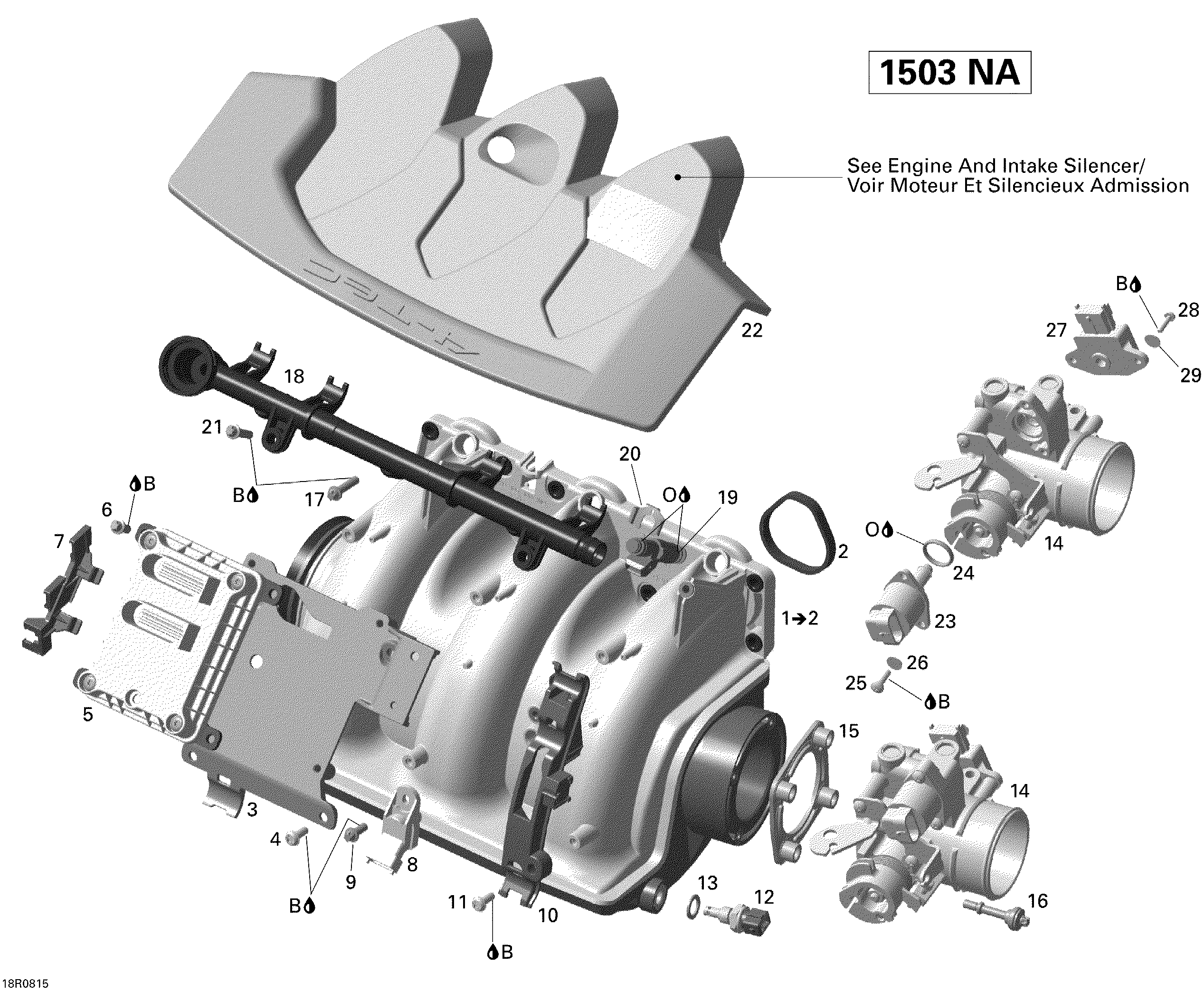

02- Air Intake Manifold And Throttle Body V1 Sea-Doo для BRP RXP 155 - 2008
-
№АртикулНазвание
-
1420867921 Air Intake Manifold. Includes 1 to 2Air Intake Manifold. Includes 1 to 2
-
2420950740 GasketGasket
-
3420851521 Base PlateBase Plate
-
4420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
5420665783 Electronic BoxElectronic Box
-
6420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
7420660402 Connector BracketConnector Bracket
-
8420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
9420641048 Torx Flanged Screw M6 X 16Torx Flanged Screw M6 X 16
-
10420660410 Wiring SupportWiring Support
-
11420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
12420222423 Temperature SensorTemperature Sensor
-
13420250015 Sealing RingSealing Ring
-
14420892452 Throttle BodyThrottle Body
-
15420950792 Rubber GasketRubber Gasket
-
16420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
17420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
18420874391 Fuel Rail Ass'yFuel Rail Ass'y
-
19420874430 InjectorInjector
-
20420851531 Injector ClipInjector Clip
-
21420641238 Torx Flanged Screw M6 X 25Torx Flanged Screw M6 X 25
-
23420665940 Idle Bypass ValveIdle Bypass Valve
-
24420631780 O-RingO-Ring
-
25420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
26420845710 Snap RingSnap Ring
-
27270000251 Position SensorPosition Sensor
-
28208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
29234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
