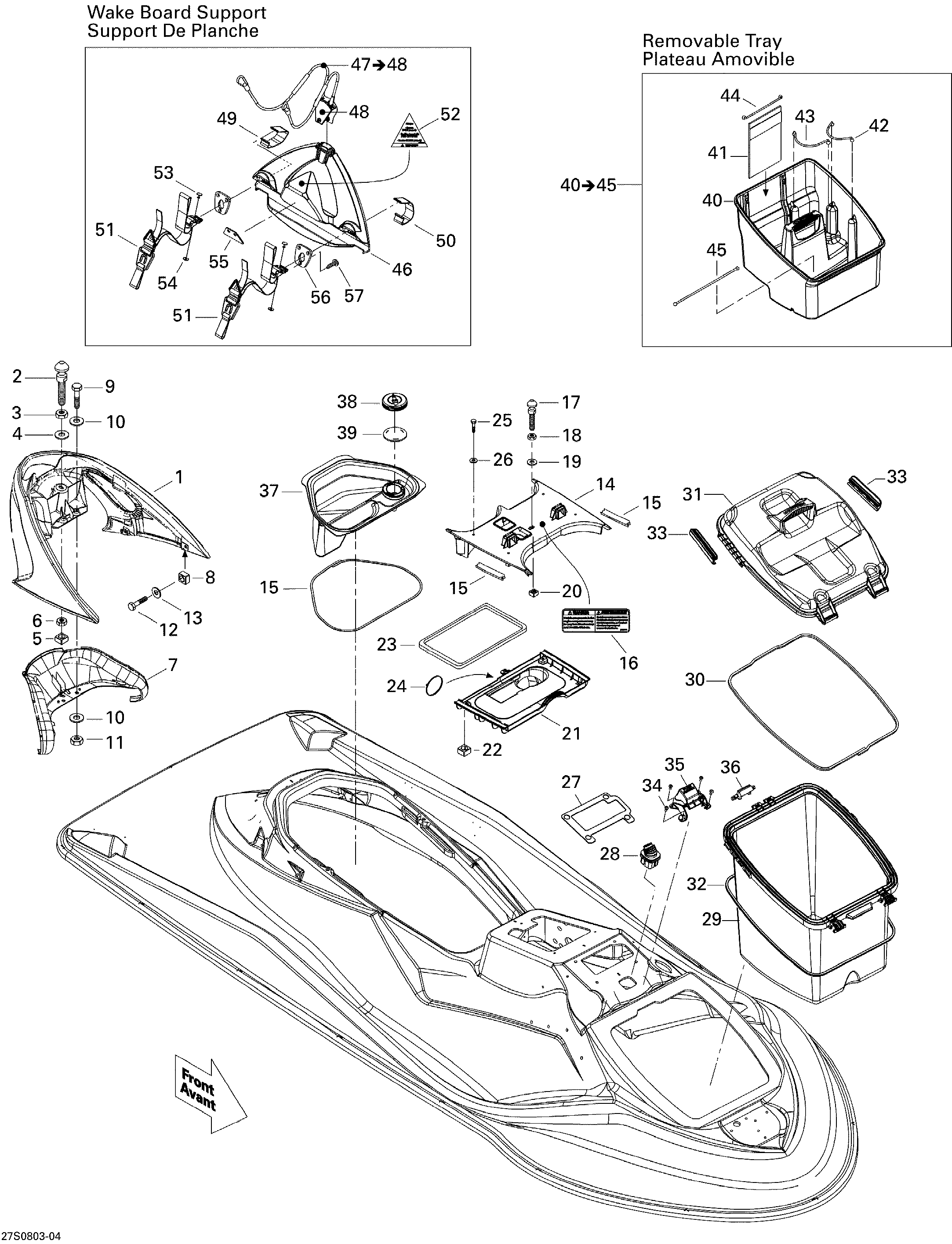

09- Body, Front View для BRP WAKE 215 - 2008
‹-+›
-
№АртикулНазвание
-
1269000722 Grab Handle, BlackGrab Handle, Black
-
2291000945 Seat StudSeat Stud
-
3232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
4234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
5271000598 Nut Housing Ass'yNut Housing Ass'y
-
6232501600 Hex. Elastic Nut M10Hex. Elastic Nut M10
-
7269000749 Handle Cover, BlackHandle Cover, Black
-
8269501166 Nut Housing Ass'yNut Housing Ass'y
-
9207084560 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
10234081600 Flat Washer 8 mmFlat Washer 8 mm
-
11232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
12207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14291002136 Upper Bridge, BlackUpper Bridge, Black
-
15293250008 GasketGasket
-
16219902643 Warning Label, SecurityWarning Label, Security
-
17291000945 Seat StudSeat Stud
-
18232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
19234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
20271000598 Nut Housing Ass'yNut Housing Ass'y
-
21291002614 Lower BridgeLower Bridge
-
22269501166 Nut Housing Ass'yNut Housing Ass'y
-
23293200090 GasketGasket
-
24293750047 Tie Rap, 533MMTie Rap, 533MM
-
25207167560 Hex. Screw M6 X 75Hex. Screw M6 X 75
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27293250171 GasketGasket
-
28293720042 GrommetGrommet
-
29269501583 Storage BoxStorage Box
-
30293250161 GasketGasket
-
31269501585 Storage Box CoverStorage Box Cover
-
32293250174 GasketGasket
-
33269501609 ClipClip
-
34293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
35291002487 Latch BaseLatch Base
-
36291002488 LatchLatch
-
37269501036 Rear TrayRear Tray
-
38269000788 CoverCover
-
39269000810 Cover SealCover Seal
-
40269501478 Removable Tray. Includes 40 to 45Removable Tray. Includes 40 to 45
-
41269501442 Storage PocketStorage Pocket
-
42269501175 StrapStrap
-
43269501174 StrapStrap
-
44269501175 StrapStrap
-
45269501176 StrapStrap
-
46291002256 Board SupportBoard Support
-
47291002026 Elastic Rope Ass'y. Includes 47 to 48Elastic Rope Ass'y. Includes 47 to 48
-
48291002025 Rope CapRope Cap
-
49291002027 LH Bracket SupportLH Bracket Support
-
50291002028 RH Bracket SupportRH Bracket Support
-
51291002029 Strap Ass'yStrap Ass'y
-
52219902347 Warning Decal, English, Secure BoardWarning Decal, English, Secure Board
-
53293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
54517124300 WasherWasher
-
55293250149 GasketGasket
-
56291002050 Board RackBoard Rack
-
57204100049 Phillips Tapping Screw #8 X 1''Phillips Tapping Screw #8 X 1''
