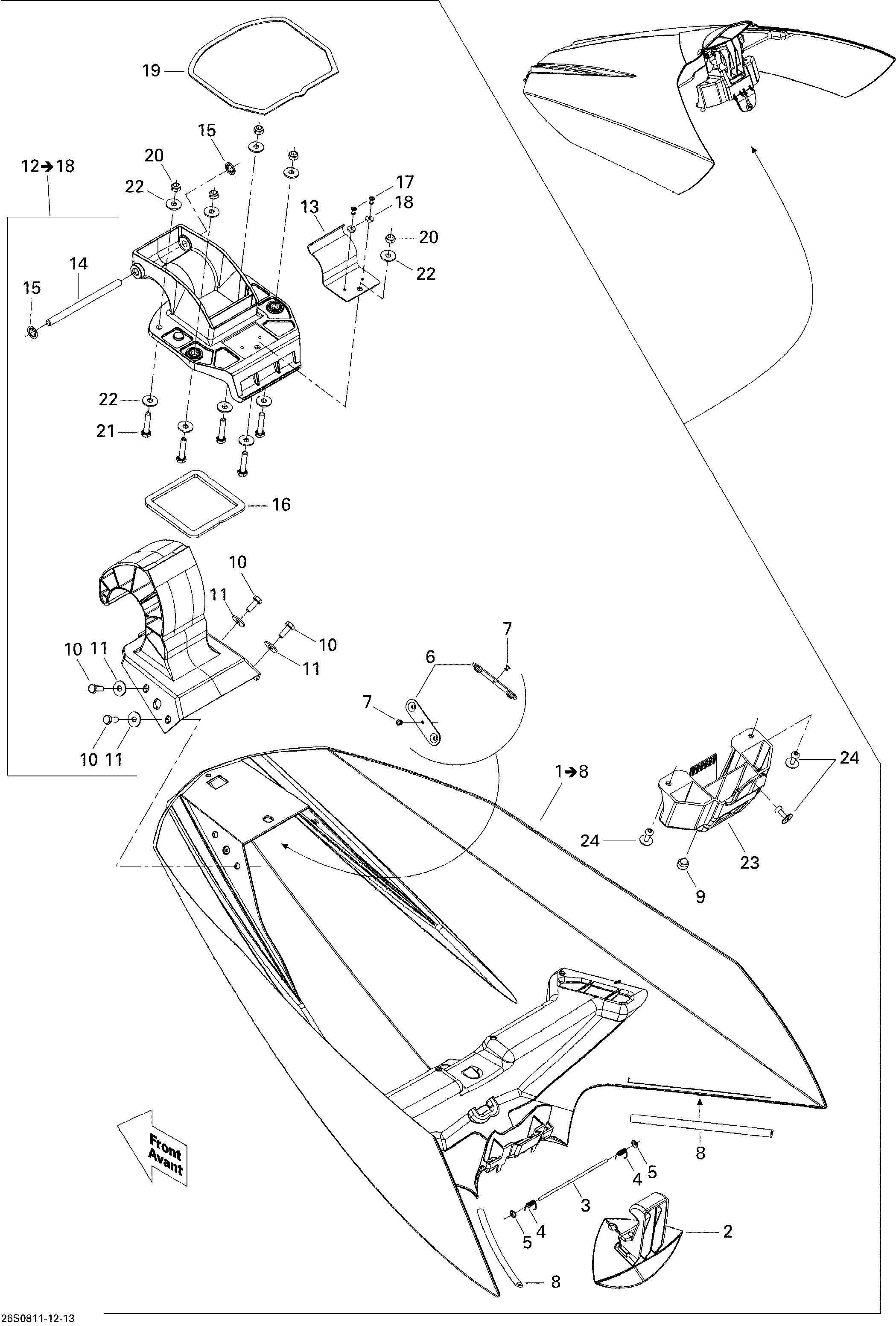

09- Front Cover для BRP GTI SE 155 - 2008

  • №
    Артикул
    Название
  • 1
    269501671 Storage Cover Ass'y. Regal Red, Includes 1 to 8
    Storage Cover Ass'y. Regal Red, Includes 1 to 8
  • 1
    269501674 Storage Cover Ass'y. Spring Green, Includes 1 to 8
    Storage Cover Ass'y. Spring Green, Includes 1 to 8
  • 2
    269700098 Latch Lever
    Latch Lever
  • 3
    269501479 Pin
    Pin
  • 4
    291000922 Latch Spring
    Latch Spring
  • 5
    250100061 Push Nut
    Push Nut
  • 6
    277001479 Plate
    Plate
  • 7
    293150006 Pop Rivet 1/8''
    Pop Rivet 1/8''
  • 8
    293250176 Gasket
    Gasket
  • 9
    293830005 Rubber Plug, Black
    Rubber Plug, Black
  • 10
    207361660 Hex. Screw M6 X 16, Scotch Grip
    Hex. Screw M6 X 16, Scotch Grip
  • 11
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 12
    269501446 Hinge Ass'y. Includes 12 to 18
    Hinge Ass'y. Includes 12 to 18
  • 13
    269700099 Hinge Spring
    Hinge Spring
  • 14
    269700024 Axle
    Axle
  • 15
    250100046 Push Nut
    Push Nut
  • 16
    293250155 Upper Gasket
    Upper Gasket
  • 17
    293150143 Pop Rivet 1/8
    Pop Rivet 1/8
  • 18
    234032600 Flat Washer 3 mm
    Flat Washer 3 mm
  • 19
    293250166 Gasket
    Gasket
  • 20
    232561200 Brass Elastic Stop Nut, M6
    Brass Elastic Stop Nut, M6
  • 21
    207063060 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 22
    234062600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 23
    269501480 Latch Base
    Latch Base
  • 24
    293150123 Pop Rivet 3/16''
    Pop Rivet 3/16''
