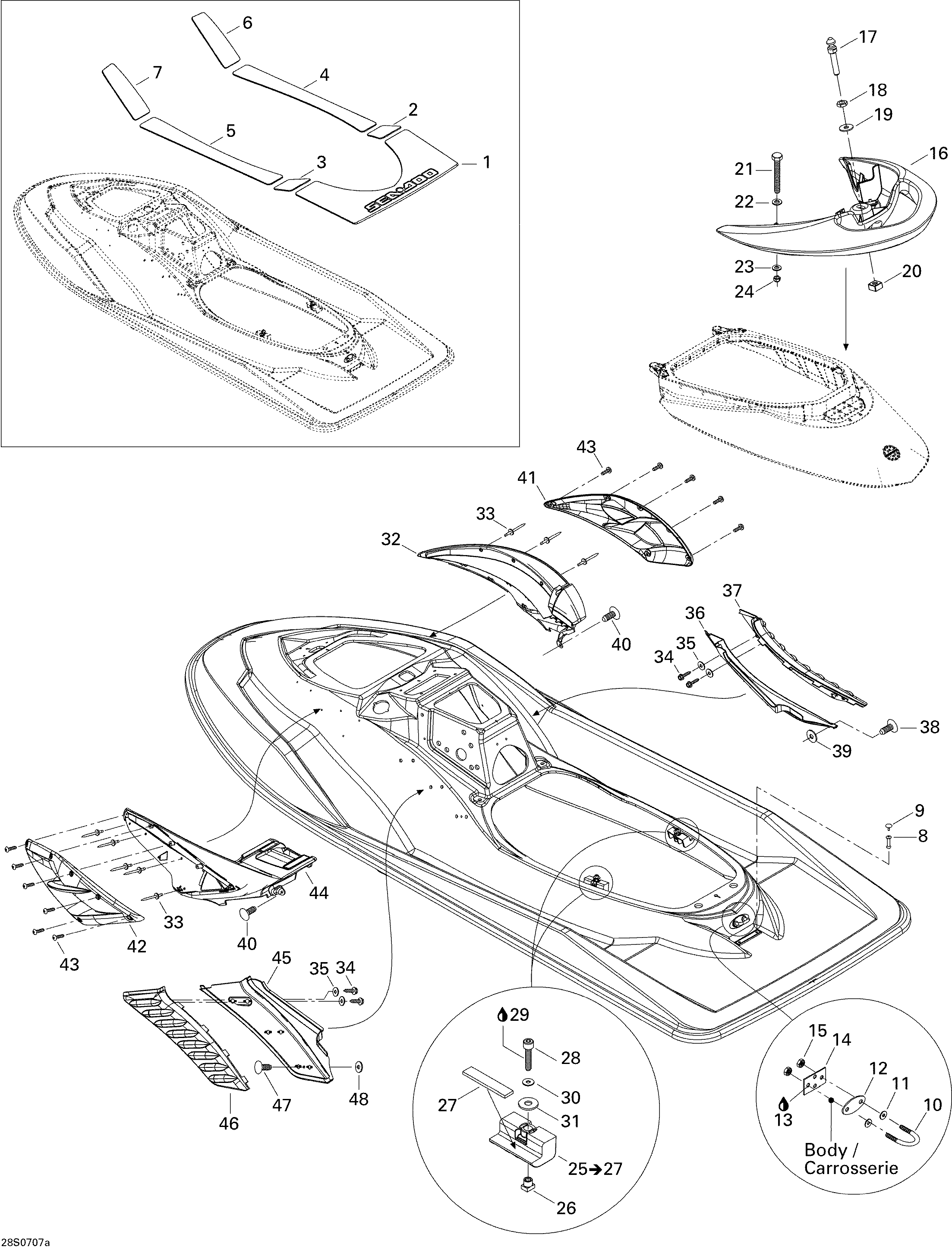

09- Body, Rear View для BRP RXP 1503 BVIC - 2007
-
№АртикулНазвание
-
1291002333 Platforme CarpetPlatforme Carpet
-
2291002388 RH Rear CarpetRH Rear Carpet
-
3291002389 LH Rear CarpetLH Rear Carpet
-
4291002390 RH Center CarpetRH Center Carpet
-
5291002391 LH Center CarpetLH Center Carpet
-
6291002392 RH Front CarpetRH Front Carpet
-
7291002393 LH Front CarpetLH Front Carpet
-
8293150016 Rivet 1/8''Rivet 1/8''
-
9293000014 Snap CapSnap Cap
-
10292000011 U-clampU-clamp
-
11293050001 Flat WasherFlat Washer
-
12291001386 Finition Plate, BlackFinition Plate, Black
-
13296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
14291001387 Retainer PlateRetainer Plate
-
15232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
16269000812 Grab HandleGrab Handle
-
17291000691 Latch StudLatch Stud
-
18232100600 Hex Jam Nut M10Hex Jam Nut M10
-
19234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
20271000598 Nut Housing Ass'yNut Housing Ass'y
-
21207085560 Hex Screw M8 X 55Hex Screw M8 X 55
-
22234081600 Flat Washer 8 mmFlat Washer 8 mm
-
23234082600 Flat Washer 8 mmFlat Washer 8 mm
-
24232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
25291001931 Link Bridge Ass'yLink Bridge Ass'y
-
26211100033 Square Nut M8Square Nut M8
-
27291001932 PadPad
-
28205083560 Socket Head Screw M8 X 35Socket Head Screw M8 X 35
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30234082600 Flat Washer 8 mmFlat Washer 8 mm
-
31293830037 Rubber WasherRubber Washer
-
32291002451 RH Moulding. Black, YellowRH Moulding. Black, Yellow
-
32291002452 RH Moulding. Viper RedRH Moulding. Viper Red
-
33293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
34211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
35211200055 Flat Washer Ss/neopreneFlat Washer Ss/neoprene
-
36291002455 RH Moulding. Black, YellowRH Moulding. Black, Yellow
-
36291002456 RH Moulding. Viper RedRH Moulding. Viper Red
-
37269001296 RH Knee PadRH Knee Pad
-
38293730006 Black DartBlack Dart
-
39250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
40293730006 Black DartBlack Dart
-
41273000231 RH GrillRH Grill
-
42273000232 LH GrillLH Grill
-
43250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
44291002457 LH Moulding. Black, YellowLH Moulding. Black, Yellow
-
44291002458 LH Moulding. Viper RedLH Moulding. Viper Red
-
45291002461 LH Moulding. Black, YellowLH Moulding. Black, Yellow
-
45291002462 LH Moulding. Viper RedLH Moulding. Viper Red
-
46269001295 LH Knee PadLH Knee Pad
-
47293730006 Black DartBlack Dart
-
48250200024 Rubber Washer 5 mmRubber Washer 5 mm
