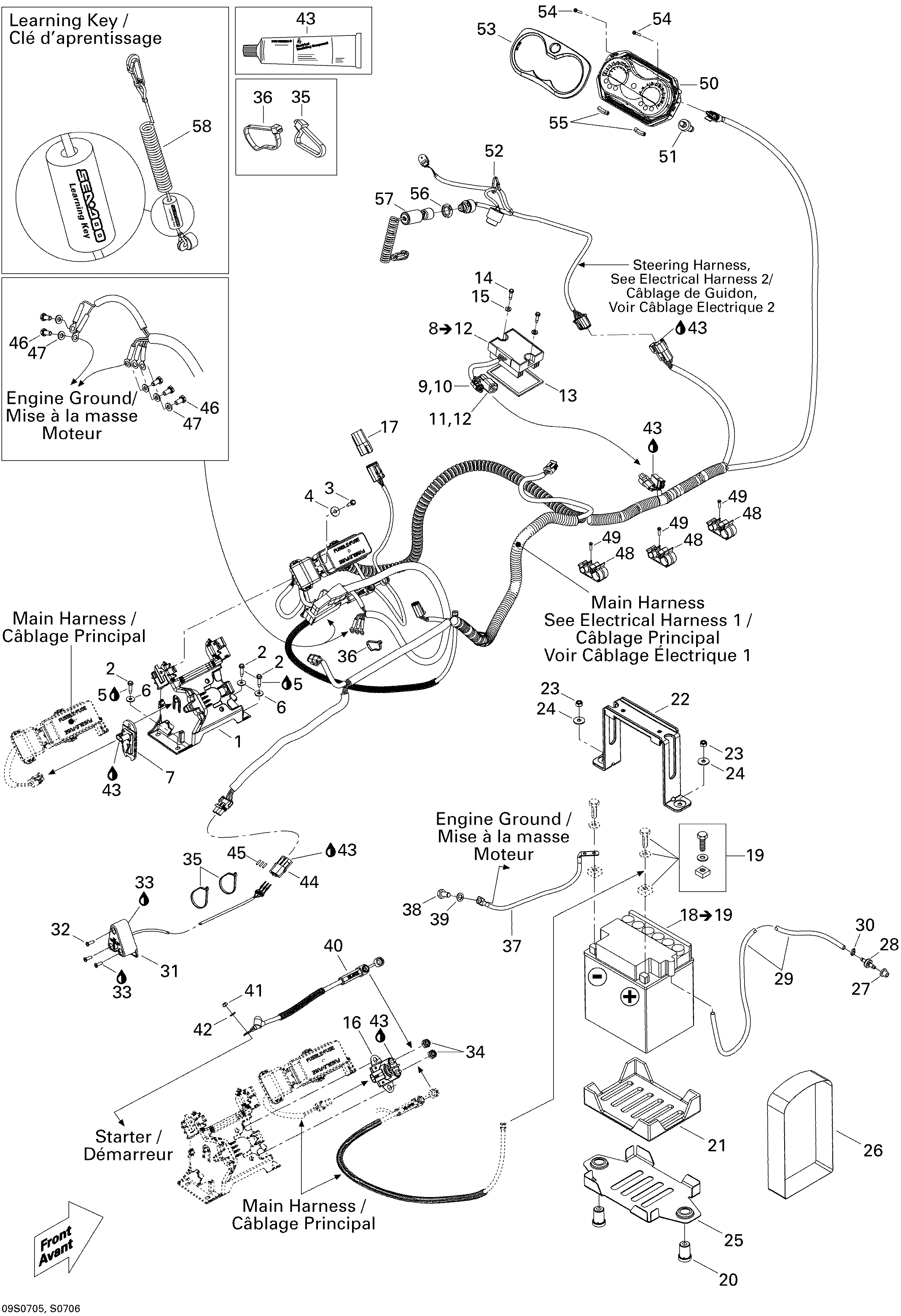

10- Electrical System GTI STD для BRP GTI 4-TEC STD - 2007
-
№АртикулНазвание
-
1278002157 Module SupportModule Support
-
2211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
3211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
4234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
5293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7278001992 Interrupter T.o.p.s.Interrupter T.o.p.s.
-
8278001969 Regulator. Includes 8 to 12Regulator. Includes 8 to 12
-
9409207400 Female HousingFemale Housing
-
10278000632 Female TerminalFemale Terminal
-
11409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12515175567 Female TerminalFemale Terminal
-
13293250123 SealSeal
-
14211000023 Hex Screw 10-14 X 7/8''Hex Screw 10-14 X 7/8''
-
15234061600 Flat Washer M6Flat Washer M6
-
16278001802 Relay StarterRelay Starter
-
17278002148 diagnostic connector capdiagnostic connector cap
-
18278001882 Battery, 30 Amperes. Includes 18 to 19Battery, 30 Amperes. Includes 18 to 19
-
19295500849 Battery Fastener KitBattery Fastener Kit
-
20278001939 BushingBushing
-
21278001582 Lower Battery PadLower Battery Pad
-
22278001677 Battery SupportBattery Support
-
23232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
24234082600 Flat Washer 8 mmFlat Washer 8 mm
-
25278001966 Battery SupportBattery Support
-
26278001764 Battery Strap 337 mmBattery Strap 337 mm
-
27293720029 GrommetGrommet
-
28275500499 Check ValveCheck Valve
-
29275500446 Hose 6 mmHose 6 mm
-
30293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
34232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
37278002177 Ground Cable Ass'yGround Cable Ass'y
-
38207302060 Hex Screw M10 X 20, Scotch GripHex Screw M10 X 20, Scotch Grip
-
39234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
40278002193 Starter CableStarter Cable
-
41232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
42234061600 Flat Washer M6Flat Washer M6
-
43293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
44278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
45278000216 Wire SealWire Seal
-
46207361260 Hex Screw M6 X 12, Scotch GripHex Screw M6 X 12, Scotch Grip
-
47234061600 Flat Washer M6Flat Washer M6
-
48275500553 RetainerRetainer
-
49241141660 Flanged Hex Screw K40 X 16Flanged Hex Screw K40 X 16
-
50278002217 Digital Multifunction Gauge. Includes 50 to 51Digital Multifunction Gauge. Includes 50 to 51
-
51275500398 Check ValveCheck Valve
-
52293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
53278002135 Gauge Bezel, BlackGauge Bezel, Black
-
54241142560 Hex Flanged Screw K40 X 25Hex Flanged Screw K40 X 25
-
55293830113 TrimTrim
-
56278000508 Safety Switch NutSafety Switch Nut
-
57278002199 Safety Lanyard, AntitheftSafety Lanyard, Antitheft
-
58278002203 Safety Lanyard, Learning Key. GTI SE, GTI STDSafety Lanyard, Learning Key. GTI SE, GTI STD
