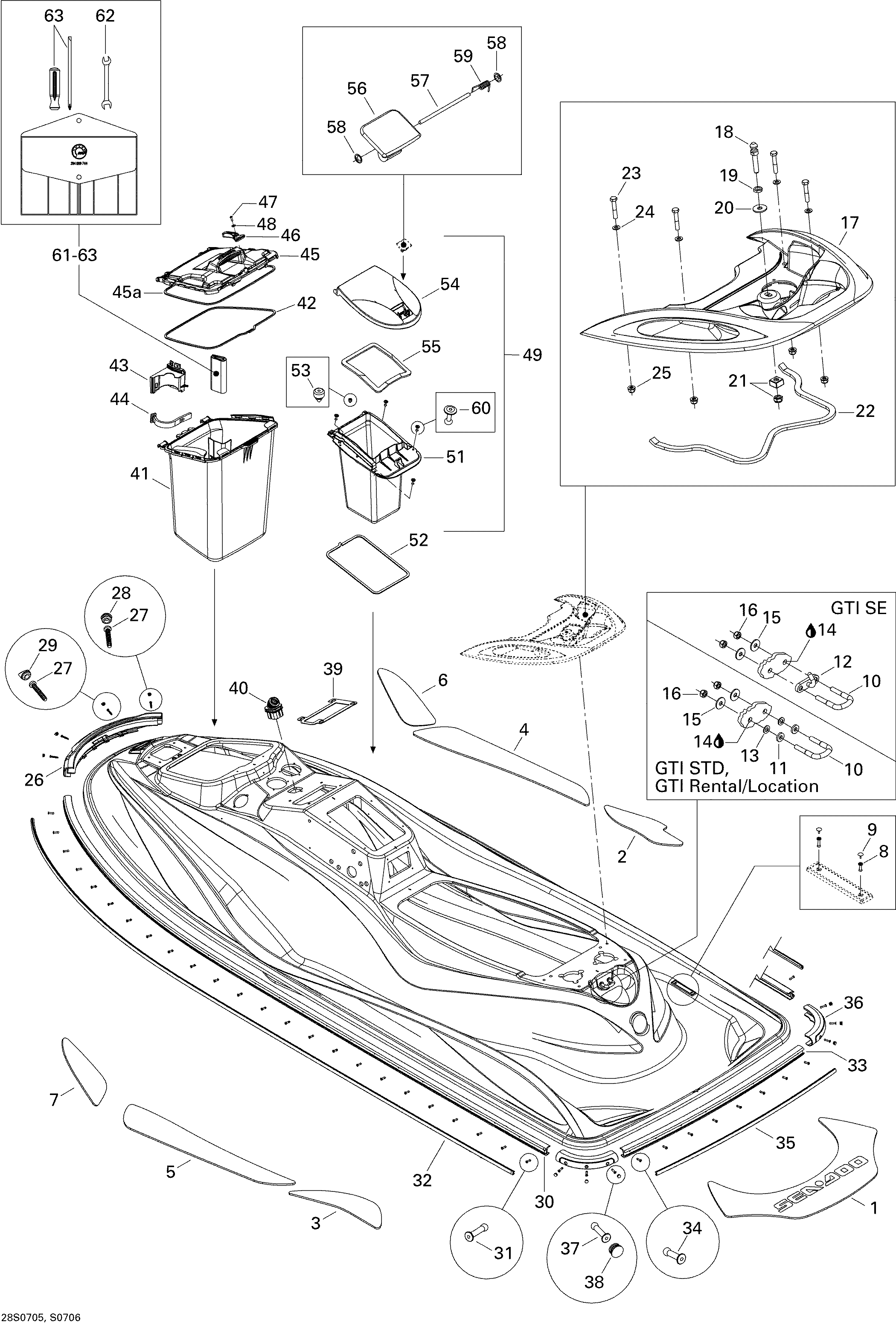

09- Body, Rear View STD, RENTAL для BRP GTI 4-TEC RENTAL - 2007
-
№АртикулНазвание
-
1291002356 Rear Carpet. GTI STD, GTI RentalRear Carpet. GTI STD, GTI Rental
-
2291002380 RH Center Rear Carpet. GTI STD, GTI RentalRH Center Rear Carpet. GTI STD, GTI Rental
-
3291002381 LH Center Rear Carpet. GTI STD, GTI RentalLH Center Rear Carpet. GTI STD, GTI Rental
-
4291002357 RH Center Front Carpet. GTI STD, GTI RentalRH Center Front Carpet. GTI STD, GTI Rental
-
5291002358 LH Center Front Carpet. GTI STD, GTI RentalLH Center Front Carpet. GTI STD, GTI Rental
-
6291002365 RH Front Carpet. GTI STD, GTI RentalRH Front Carpet. GTI STD, GTI Rental
-
7291002366 LH Front Carpet. GTI STD, GTI RentalLH Front Carpet. GTI STD, GTI Rental
-
8293150016 Rivet 1/8''Rivet 1/8''
-
9293000014 Snap CapSnap Cap
-
10292000011 U-clampU-clamp
-
11250200011 Flat Washer 8 mm, Stainless. GTI STD, GTI RentalFlat Washer 8 mm, Stainless. GTI STD, GTI Rental
-
13250200011 Flat Washer 8 mm, Stainless. GTI STD, GTI RentalFlat Washer 8 mm, Stainless. GTI STD, GTI Rental
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15234082600 Flat Washer 8 mmFlat Washer 8 mm
-
16232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
17291002510 Rear Handle GrabRear Handle Grab
-
18291000945 Seat StudSeat Stud
-
19232100600 Hex Jam Nut M10Hex Jam Nut M10
-
20234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
21271000598 Nut Housing Ass'yNut Housing Ass'y
-
22293200003 Seal, MeterSeal, Meter
-
23207184560 Hex Screw M8 X 45Hex Screw M8 X 45
-
24234081600 Flat Washer 8 mmFlat Washer 8 mm
-
25232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
26291001942 Bumper Nose, BlackBumper Nose, Black
-
27250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
28291001519 Bumper Plug, BlackBumper Plug, Black
-
29291001040 Bumper Plug, BlackBumper Plug, Black
-
30291002240 Side BumperSide Bumper
-
31293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
32204050271 Side Bumper TrimSide Bumper Trim
-
33291002242 Rear Bumper, BlackRear Bumper, Black
-
34293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
35204050279 Side Bumper TrimSide Bumper Trim
-
36291002244 Bumper CornerBumper Corner
-
37293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
38291000339 Bumper PlugBumper Plug
-
39293250171 GasketGasket
-
40293720042 GrommetGrommet
-
41269501491 Storage Tray Ass'yStorage Tray Ass'y
-
42293250161 GasketGasket
-
43269501501 Extinguisher SupportExtinguisher Support
-
44269500408 StrapStrap
-
45269501643 Storage Tray CoverStorage Tray Cover
-
45a293250168 SealSeal
-
46291002516 LatchLatch
-
47211000021 Pan Head Phillips Screw 10 X 7/8''Pan Head Phillips Screw 10 X 7/8''
-
48234052600 Flat Washer 5 mmFlat Washer 5 mm
-
51291002248 Glove BoxGlove Box
-
52291002251 GasketGasket
-
53293830005 Rubber Plug, BlackRubber Plug, Black
-
54291002249 Glove Box DoorGlove Box Door
-
55291002250 GasketGasket
-
56269500553 Latch, BlackLatch, Black
-
57211400008 PinPin
-
58211100002 Push NutPush Nut
-
59291000922 Latch SpringLatch Spring
-
60293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
61294000744 Tool KitTool Kit
-
62529017300 Fork WrenchFork Wrench
-
63529000004 Driver ScrewDriver Screw
