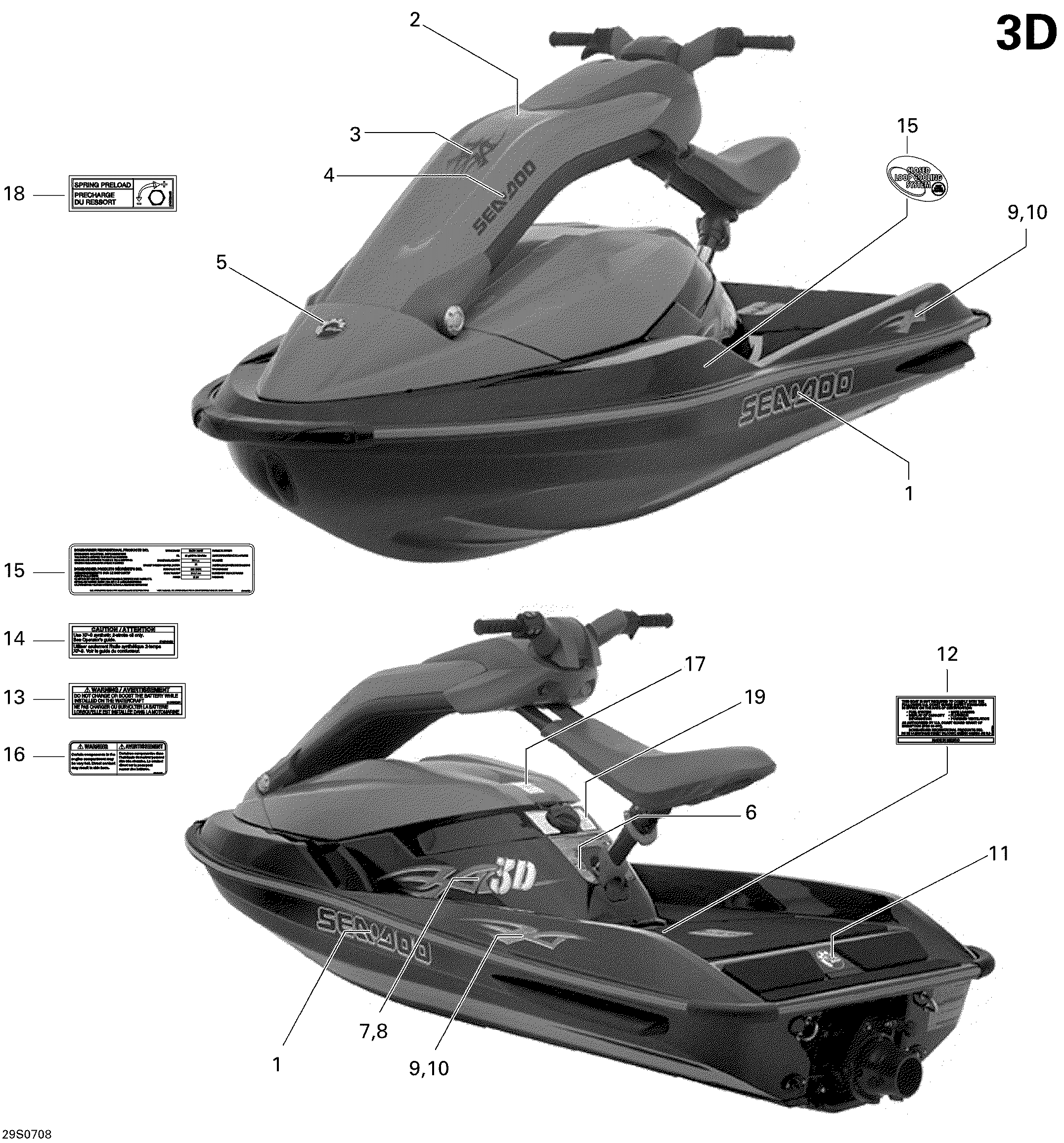

09- Decals для BRP 3D 947 DI - 2007

-
№АртикулНазвание
-
1219902635 Sea-doo Hull DecalSea-doo Hull Decal
-
2219902503 Logo Sea-Doo 3D, Front CoverLogo Sea-Doo 3D, Front Cover
-
3219902536 Deflector DecalDeflector Decal
-
4219902502 Logo Sea-Doo, FrontLogo Sea-Doo, Front
-
5219902469 BRP Logo, 68 mmBRP Logo, 68 mm
-
6219902560 Warning Label, Death/InjuriesWarning Label, Death/Injuries
-
7219902586 LH Central DecalLH Central Decal
-
8219902615 RH Central DecalRH Central Decal
-
9219902587 LH Rear DecalLH Rear Decal
-
10219902588 RH Rear DecalRH Rear Decal
-
11219902471 BRP LogoBRP Logo
-
12219902640 Exemption LabelExemption Label
-
13219902641 Warning Label, BatteryWarning Label, Battery
-
14219902642 Caution Label, Synthetic OilCaution Label, Synthetic Oil
-
15219902651 Emission LabelEmission Label
-
16219902643 Warning Label, SecurityWarning Label, Security
-
17219902451 Warning Label, CoverWarning Label, Cover
-
18219902645 Warning Label, AdjustmentWarning Label, Adjustment
-
19219902646 Warning Label, Essence Et SiegeWarning Label, Essence Et Siege
