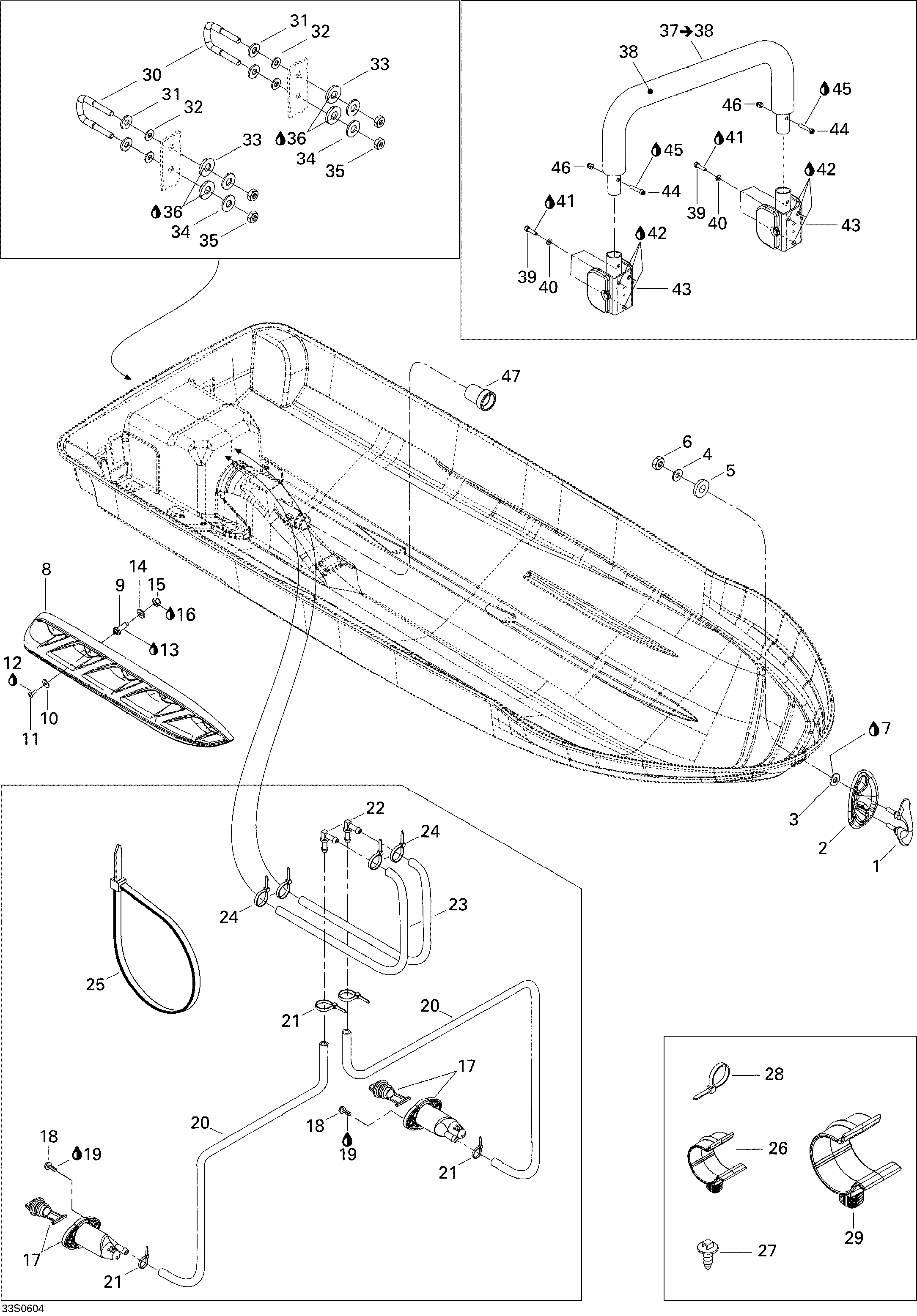

09- Hull STD для BRP GTX 4-TEC, STD - 2006
-
№АртикулНазвание
-
1292000710 Bow Eye Ass'y, White. STDBow Eye Ass'y, White. STD
-
2292000511 Shell, White. STDShell, White. STD
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5293830037 Rubber WasherRubber Washer
-
6232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292001036 RH SponsonRH Sponson
-
8292001037 LH SponsonLH Sponson
-
9292001046 Sponson AdapterSponson Adapter
-
10250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
11250000234 Torx Screw M6 X 20, StainlessTorx Screw M6 X 20, Stainless
-
12293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
13296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
14250200053 Flat Washer M12Flat Washer M12
-
15250100078 Elastic Stop Nut M12Elastic Stop Nut M12
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17292001075 Drain Plug Ass'yDrain Plug Ass'y
-
18211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20275000007 Hose 8 mmHose 8 mm
-
21293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22293710057 Elbow Fitting 90°Elbow Fitting 90°
-
23275000007 Hose 8 mmHose 8 mm
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26275500527 RetainerRetainer
-
27293730018 Mount DartMount Dart
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29275500590 RetainerRetainer
-
30292000933 U-ClampU-Clamp
-
31293050001 Flat WasherFlat Washer
-
32234081100 Flat Washer M8Flat Washer M8
-
33293830037 Rubber WasherRubber Washer
-
34250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
35232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
36296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
37292001038 Ladder Tube Ass'y. Includes 37 to 38Ladder Tube Ass'y. Includes 37 to 38
-
38292001067 Protective SleeveProtective Sleeve
-
39250000076 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
40234061600 Flat Washer 6 mmFlat Washer 6 mm
-
41296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
42293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
43292001115 Stair SupportStair Support
-
44205063560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
45293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
46232361600 Nut M6Nut M6
-
47292000075 Hull InsertHull Insert
