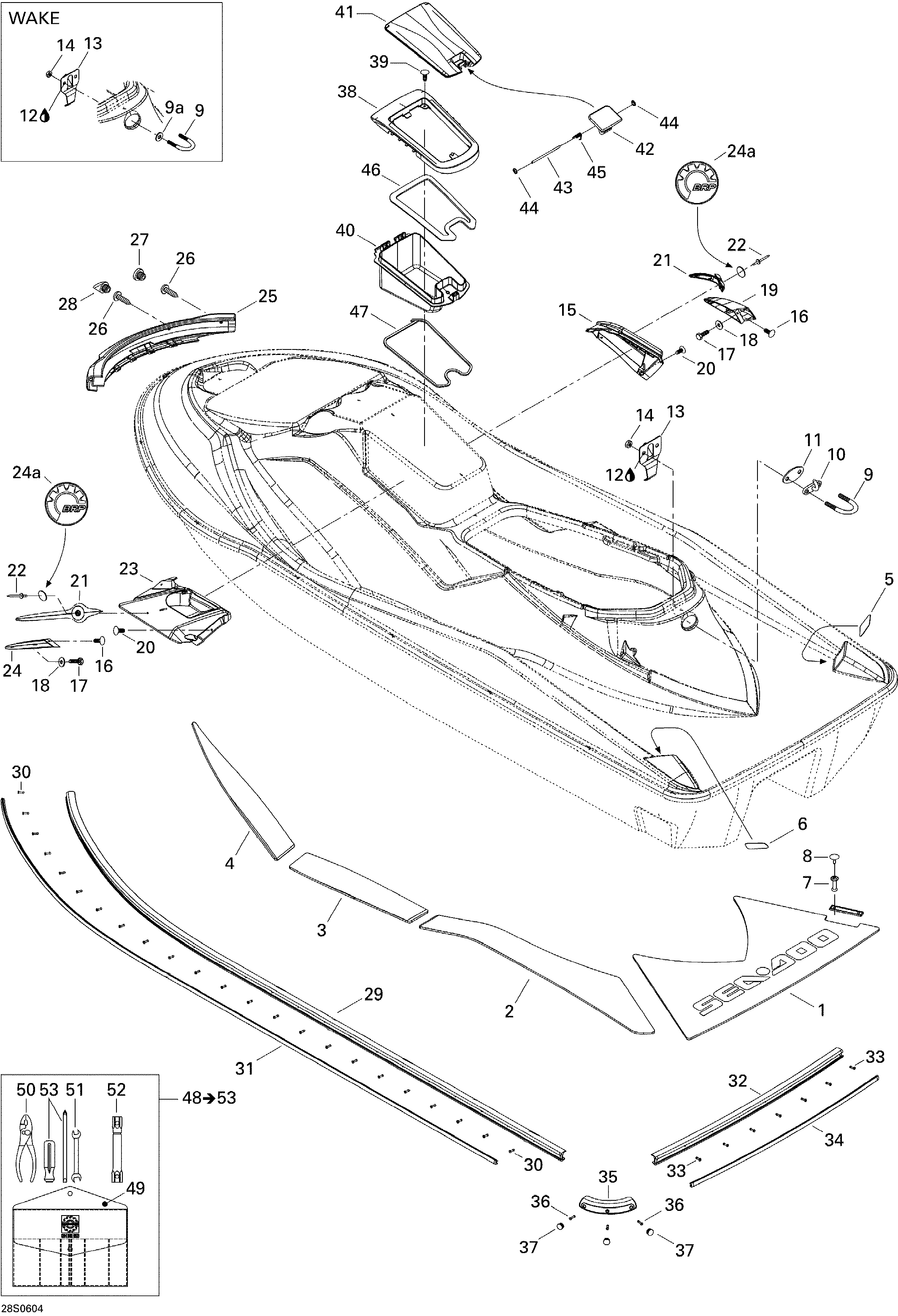

09- Body, Rear View STD для BRP GTX 4-TEC, STD - 2006
-
№АртикулНазвание
-
1291002316 Rear CarpetRear Carpet
-
2291002382 RH Center Rear CarpetRH Center Rear Carpet
-
2291002383 LH Center Rear CarpetLH Center Rear Carpet
-
3291002384 RH Center Front CarpetRH Center Front Carpet
-
3291002385 LH Center Front CarpetLH Center Front Carpet
-
4291002386 RH Front CarpetRH Front Carpet
-
4291002387 LH Front CarpetLH Front Carpet
-
5291001758 RH Anti-SkidRH Anti-Skid
-
6291001759 LH Anti-SkidLH Anti-Skid
-
7293150016 Pop Rivet 1/8''Pop Rivet 1/8''
-
8293000014 Snap CapSnap Cap
-
9292000011 U-clamp. STDU-clamp. STD
-
10291002351 Hook. STDHook. STD
-
11291001386 Finition Plate, BlackFinition Plate, Black
-
12296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
13291001747 Retainer Plate. STDRetainer Plate. STD
-
14232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
15269501463 RH Grill, Grey. STDRH Grill, Grey. STD
-
16293730010 Dart, BlackDart, Black
-
17241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
18234052600 Flat Washer 5 mmFlat Washer 5 mm
-
19293450263 RH Insert. STDRH Insert. STD
-
20293730006 Dart, BlackDart, Black
-
21269500716 Finition PlateFinition Plate
-
22293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
23269501464 LH Grill, Grey. STDLH Grill, Grey. STD
-
24293450264 LH Insert. STDLH Insert. STD
-
24a219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
25291001942 Bumper Nose, BlackBumper Nose, Black
-
26250000236 Torx Screw 10-14 X 1-1/8''Torx Screw 10-14 X 1-1/8''
-
27291001519 Bumper Plug, BlackBumper Plug, Black
-
28291001040 Bumper Plug, BlackBumper Plug, Black
-
29291001609 Side Bumper, BlackSide Bumper, Black
-
30293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
31291002324 Side Trim, Grey. STDSide Trim, Grey. STD
-
32291001483 Rear Bumper, BlackRear Bumper, Black
-
33293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
34291002325 Rear Bumper Trim, Grey. STDRear Bumper Trim, Grey. STD
-
35291001505 Bumper Corner, BlackBumper Corner, Black
-
36293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
37291000339 Bumper PlugBumper Plug
-
38269501311 Glove Box Trim. STDGlove Box Trim. STD
-
39293730006 Dart, BlackDart, Black
-
40269500968 Glove BoxGlove Box
-
41269501466 Door-box, Grey. STDDoor-box, Grey. STD
-
42269500553 Latch, BlackLatch, Black
-
43211400008 PinPin
-
44211100002 Push NutPush Nut
-
45291000922 Latch SpringLatch Spring
-
46293250126 GasketGasket
-
47293250127 GasketGasket
-
48294000744 Tool Kit. Includes 48 to 53Tool Kit. Includes 48 to 53
-
51529017300 Fork WrenchFork Wrench
-
52529035731 Socket Wrench, 16/18 mmSocket Wrench, 16/18 mm
-
53529000004 Driver ScrewDriver Screw
