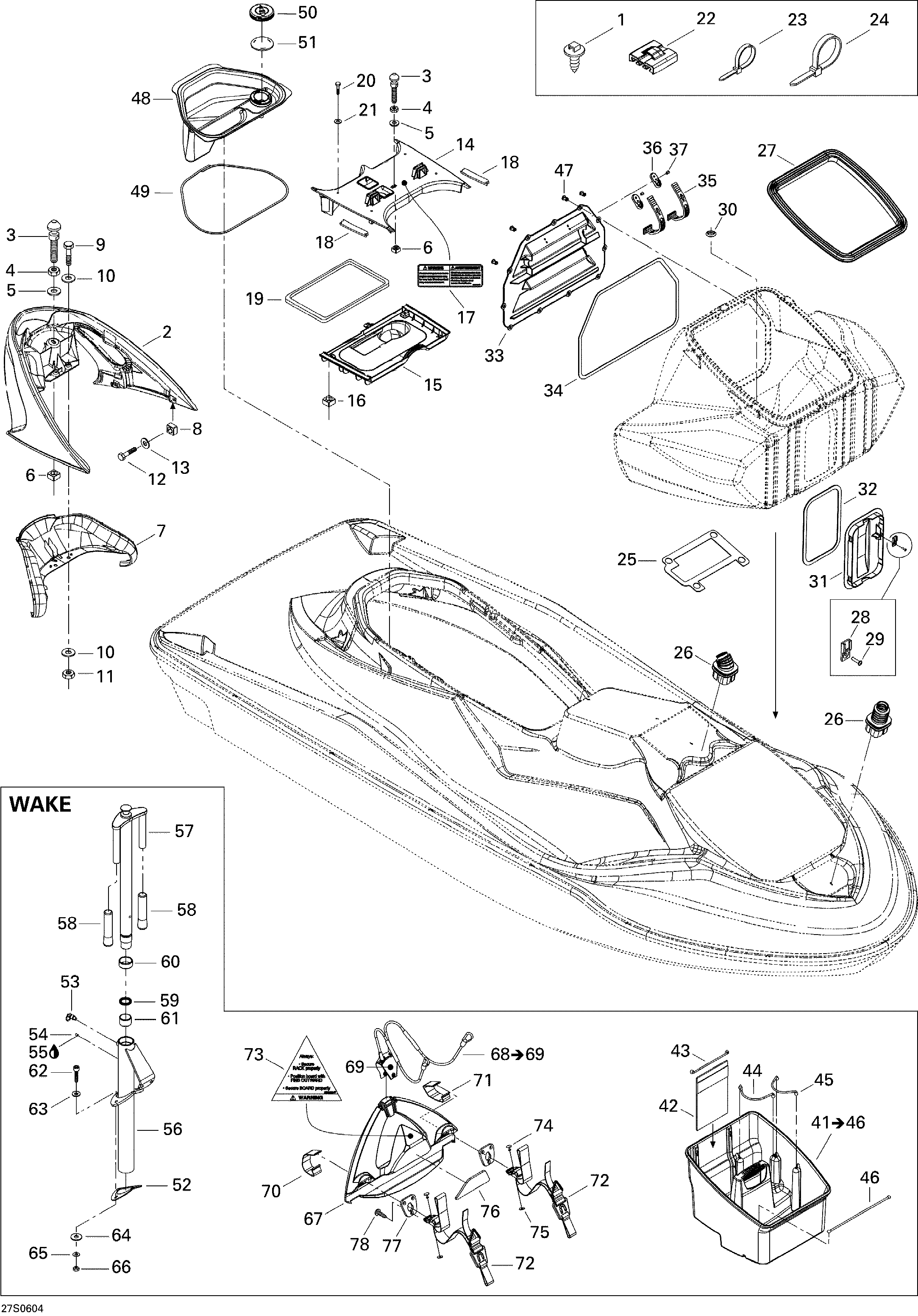

09- Body, Front View STD для BRP GTX 4-TEC, STD - 2006
-
№АртикулНазвание
-
1293730018 Mount DartMount Dart
-
2269001265 Grab Handle, Slate Grey. STDGrab Handle, Slate Grey. STD
-
3291000945 Seat StudSeat Stud
-
4232100600 Hex Jam Nut M10Hex Jam Nut M10
-
5234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
6271000598 Nut Housing Ass'yNut Housing Ass'y
-
7269001266 Grab Handle Cover, Slate Grey. STDGrab Handle Cover, Slate Grey. STD
-
8269501166 Nut Housing Ass'yNut Housing Ass'y
-
9207084560 Hex Screw M8 X 45Hex Screw M8 X 45
-
10234081600 Flat Washer 8 mmFlat Washer 8 mm
-
11232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
12207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14291002136 Upper Bridge, BlackUpper Bridge, Black
-
15291002138 Lower Bridge, BlackLower Bridge, Black
-
16269501166 Nut Housing Ass'yNut Housing Ass'y
-
17219902643 Warning Label, SecurityWarning Label, Security
-
18293250008 GasketGasket
-
19293200090 GasketGasket
-
20207167560 Hex Screw M6 X 75Hex Screw M6 X 75
-
21234062600 Flat Washer 6 mmFlat Washer 6 mm
-
22293750025 Tie-Rap MountTie-Rap Mount
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
25293250068 GasketGasket
-
26293720042 GrommetGrommet
-
27269501234 Cover TrimCover Trim
-
28270000141 ClipClip
-
29241642060 Flanged Screw K40 X 20Flanged Screw K40 X 20
-
30291000279 Plug, BlackPlug, Black
-
31291002416 Front DoorFront Door
-
32293250087 GasketGasket
-
33291001743 Rear DoorRear Door
-
34293250087 GasketGasket
-
35269500408 StrapStrap
-
36269500521 HookHook
-
37293150027 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
47293150089 Plastic RivetPlastic Rivet
-
48269501036 Rear TrayRear Tray
-
49293250008 GasketGasket
-
50269000788 CoverCover
-
51269000810 Cover SealCover Seal
