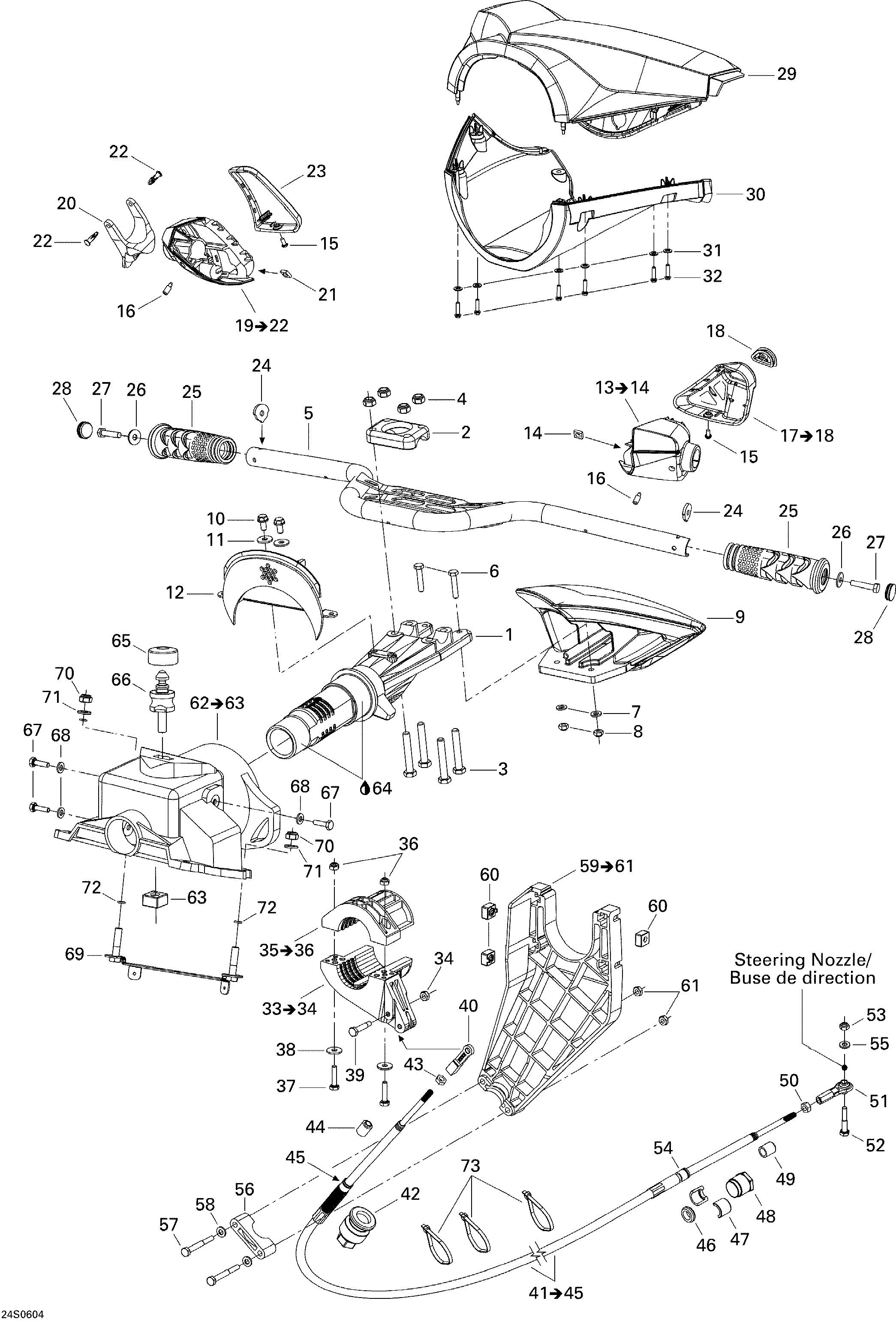

07- Steering System STD для BRP GTX 4-TEC, STD - 2006
-
№АртикулНазвание
-
1277000562400 Steering StemSteering Stem
-
2277000142 Steering ClampSteering Clamp
-
3207085060 Hex Screw M8 X 50Hex Screw M8 X 50
-
4232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
5277001460 Handle BarHandle Bar
-
6207063060 Hex Screw M6 X 30Hex Screw M6 X 30
-
7234061600 Flat Washer 6 mmFlat Washer 6 mm
-
8232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
9277001432 Handle Pad. STDHandle Pad. STD
-
10211000036 Hex Flanged Screw 1/4''-20 X 1/2''Hex Flanged Screw 1/4''-20 X 1/2''
-
11234062600 Flat Washer 6 mmFlat Washer 6 mm
-
12277000549 PlatePlate
-
13277001481 Housing Ass'y. Includes 13 to 14Housing Ass'y. Includes 13 to 14
-
14232860600 Square Nut M6Square Nut M6
-
15209630960 Phillips Screw M3.9 X 9.5Phillips Screw M3.9 X 9.5
-
16250000036 Socket Head Screw M6Socket Head Screw M6
-
17277001445 LH Housing Cover. STD - Includes 17 to 18LH Housing Cover. STD - Includes 17 to 18
-
18278001713 Stop KnobStop Knob
-
19277001483 Throttle Housing Ass'y. Includes 19 to 22Throttle Housing Ass'y. Includes 19 to 22
-
20277001485 Throttle HandleThrottle Handle
-
21232860600 Square Nut M6Square Nut M6
-
22277000381 PinPin
-
23277001354 Throttle Housing Cover. STDThrottle Housing Cover. STD
-
24277000554 Handle Grip InsertHandle Grip Insert
-
25277001336 Handle Grip, Slate GreyHandle Grip, Slate Grey
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27250000002 Hex Screw M6 X 30, Scotch GripHex Screw M6 X 30, Scotch Grip
-
28277000203 Grip CapGrip Cap
-
29277001337 Upper Steering Cover, Slate Grey. STDUpper Steering Cover, Slate Grey. STD
-
30277001458 Lower Steering Cover. STDLower Steering Cover. STD
-
31234051600 Flat Washer 5 mmFlat Washer 5 mm
-
32241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
33277001472 Steering Stem Arm. Includes 33 to 34Steering Stem Arm. Includes 33 to 34
-
34232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
35277001473 Arm Thrust. Includes 35 to 36Arm Thrust. Includes 35 to 36
-
36232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
37207162560 Hex Screw M6 X 25Hex Screw M6 X 25
-
38234062600 Flat Washer 6 mmFlat Washer 6 mm
-
39211000081 Hex Screw M6 X 30Hex Screw M6 X 30
-
40277001180 Ball JointBall Joint
-
41277001438 Steering Cable. Includes 41 to 45, Order 1 more item 49 and 54Steering Cable. Includes 41 to 45, Order 1 more item 49 and 54
-
42277000782 Ajustment KnobAjustment Knob
-
43211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
44277000849 Small BootSmall Boot
-
45277000846 Large BootLarge Boot
-
46293830063 Rubber WasherRubber Washer
-
47277000783 Half-RingHalf-Ring
-
48277000784 Steering Cable LockSteering Cable Lock
-
49277000849 Small BootSmall Boot
-
50211100056 Hex Nut 1/4''-28Hex Nut 1/4''-28
-
51277000775 Ball JointBall Joint
-
52207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
53232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
54277000846 Large BootLarge Boot
-
55234061600 Flat Washer 6 mmFlat Washer 6 mm
-
56277000162 Support ThrustSupport Thrust
-
57207065060 Hex Screw M6 X 50Hex Screw M6 X 50
-
58234061600 Flat Washer 6 mmFlat Washer 6 mm
-
59277001470 Cable Support. Includes 59 to 61Cable Support. Includes 59 to 61
-
60269500108 Nut HousingNut Housing
-
61232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
62277001471 Steering Support. Includes 62 to 63Steering Support. Includes 62 to 63
-
63271000598 Nut Housing Ass'yNut Housing Ass'y
-
64293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
65293830078 Rubber PadRubber Pad
-
66291002147 Latch StudLatch Stud
-
67207162060 Hex Screw M6 X 20Hex Screw M6 X 20
-
68234061600 Flat Washer 6 mmFlat Washer 6 mm
-
69277001072 Steering SupportSteering Support
-
70232581200 Brass Hex Elastic Nut, M8Brass Hex Elastic Nut, M8
-
71234081600 Flat Washer 8 mmFlat Washer 8 mm
-
72293300123 O-ringO-ring
-
73293750008 Tie-Rap 350 mmTie-Rap 350 mm
