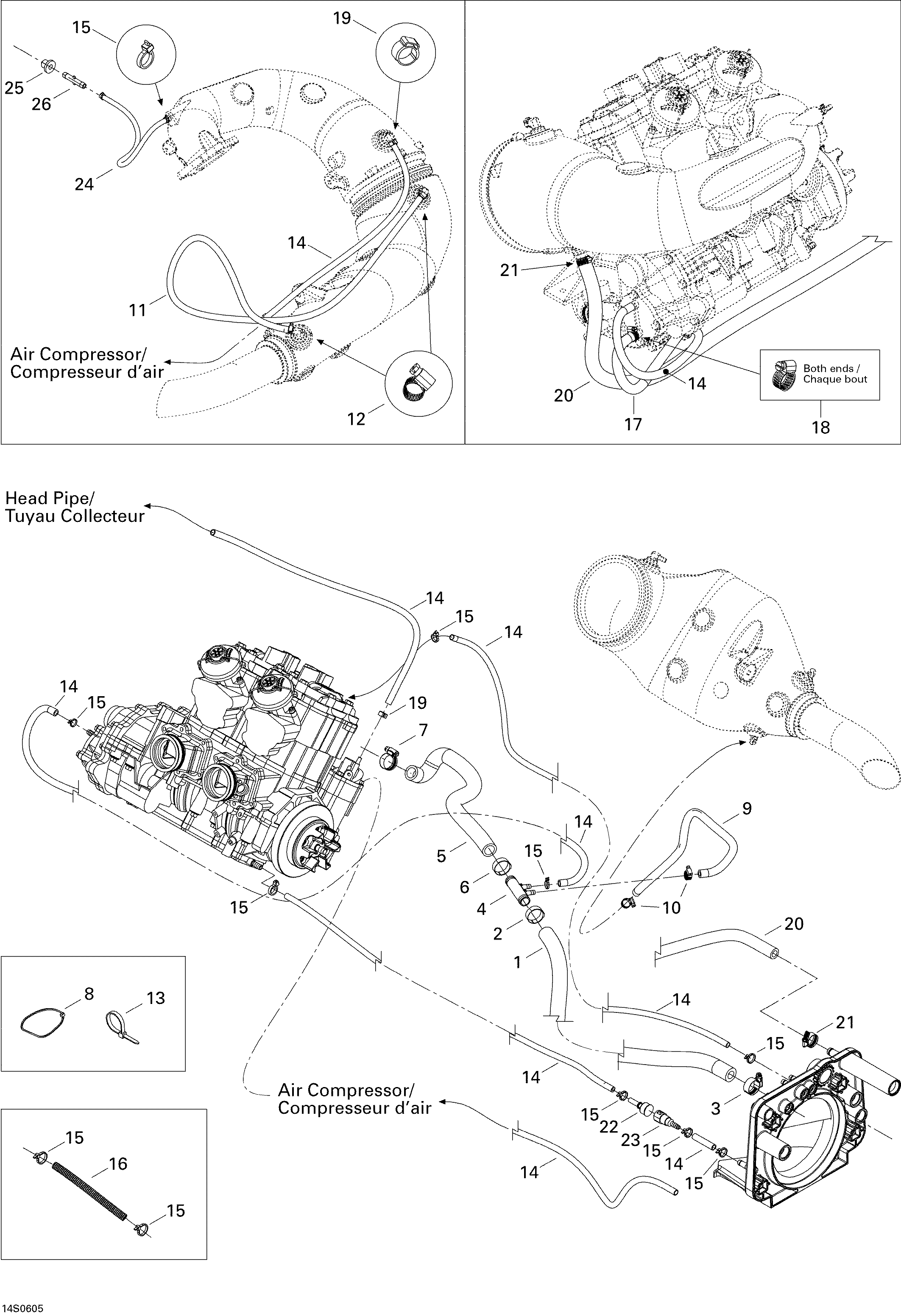

01- Cooling System для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1276000158 Hose 19 mmHose 19 mm
-
2293650165 Oetiker ClampOetiker Clamp
-
3293650051 Tridon Gear ClampTridon Gear Clamp
-
4293710102 Double FittingDouble Fitting
-
5276000157 Formed HoseFormed Hose
-
6293650165 Oetiker ClampOetiker Clamp
-
7293650019 Tridon ClampTridon Clamp
-
8293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9275500548 Hose 5/16''Hose 5/16''
-
10293650170 Tridon ClampTridon Clamp
-
11275500548 Hose 5/16''Hose 5/16''
-
12293650170 Tridon ClampTridon Clamp
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14275000007 Hose 8 mmHose 8 mm
-
15293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
16409901800 TubingTubing
-
17275500672 Formed HoseFormed Hose
-
18293650171 Tridon ClampTridon Clamp
-
19293650042 Oetiker ClampOetiker Clamp
-
20276000151 Hose 12.5 mmHose 12.5 mm
-
21293650172 Tridon ClampTridon Clamp
-
22275500435 Quick Male FittingQuick Male Fitting
-
23275500436 Quick Female FittingQuick Female Fitting
-
24276000048 Hose 6 mmHose 6 mm
-
25293720029 GrommetGrommet
-
26293710039 Straight FittingStraight Fitting
