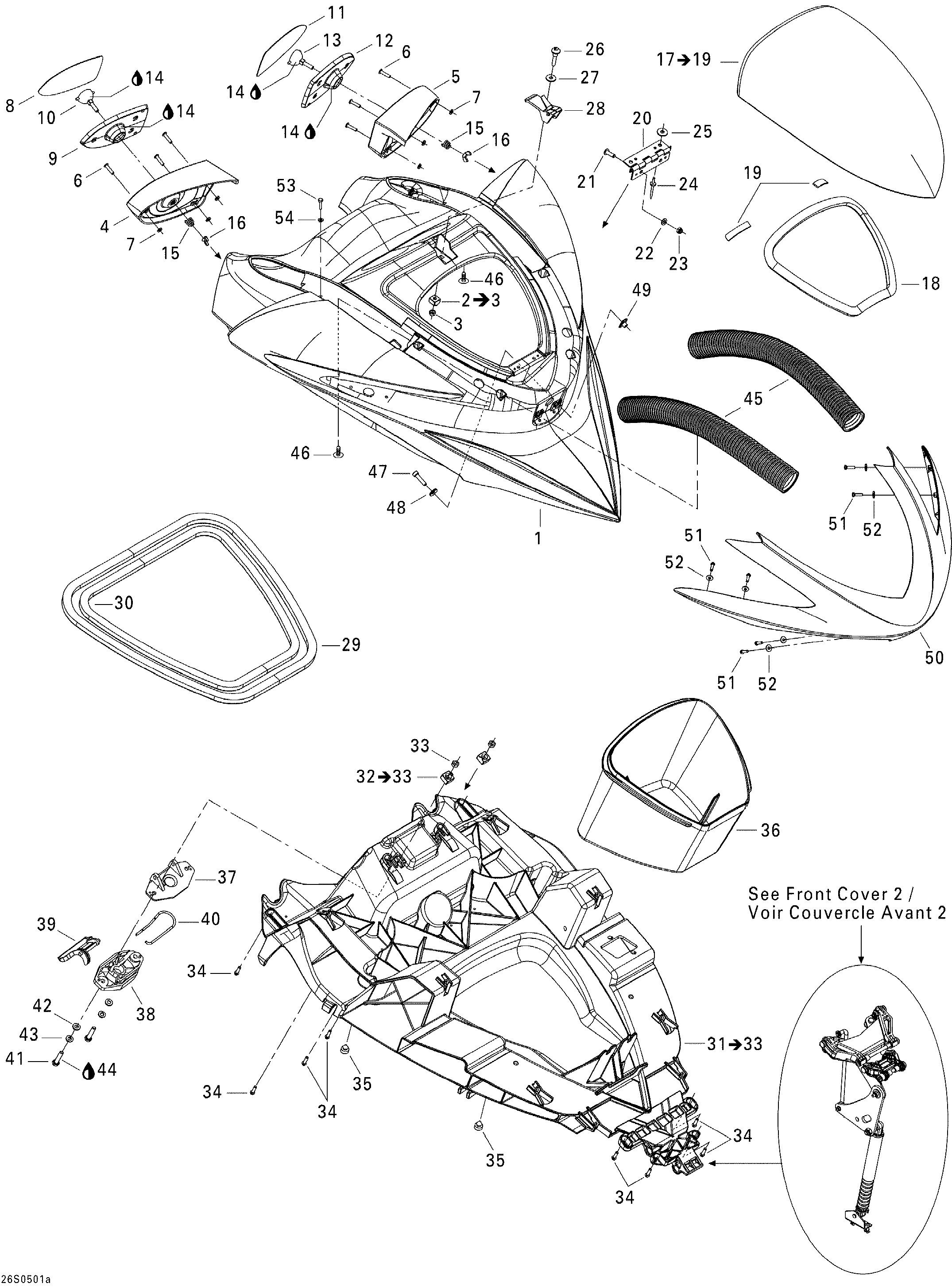

09- Front Cover 1 для BRP RXP - 2005

  • №
    Артикул
    Название
  • 1
    269501367 Upper Storage Cover, Viper Red. Viper Red
    Upper Storage Cover, Viper Red. Viper Red
  • 1
    269501382 Upper Storage Cover, Apple Green. Apple Green
    Upper Storage Cover, Apple Green. Apple Green
  • 2
    269501166 Nut Housing Ass'y. Includes 2 to 3
    Nut Housing Ass'y. Includes 2 to 3
  • 3
    232561200 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 4
    269501368 RH Mirror Housing, Vper Red. Viper Red
    RH Mirror Housing, Vper Red. Viper Red
  • 4
    269501204 RH Mirror Housing, Apple Green. Apple Green
    RH Mirror Housing, Apple Green. Apple Green
  • 5
    269501369 LH Mirror Housing, Vper Red. Viper Red
    LH Mirror Housing, Vper Red. Viper Red
  • 5
    269501205 LH Mirror Housing, Apple Green. Apple Green
    LH Mirror Housing, Apple Green. Apple Green
  • 6
    293150005 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    213200016 Flat Washer (Emhart)
    Flat Washer (Emhart)
  • 8
    269500687 RH Mirror
    RH Mirror
  • 9
    269500697 Frame Mirror
    Frame Mirror
  • 10
    269500079 Ball Joint
    Ball Joint
  • 11
    269500788 LH Mirror
    LH Mirror
  • 12
    269500697 Frame Mirror
    Frame Mirror
  • 13
    269500079 Ball Joint
    Ball Joint
  • 14
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 15
    269500453 Mirror Spring
    Mirror Spring
  • 16
    232661600 Wing Nut M6
    Wing Nut M6
  • 17
    269501370 Access Cover Ass'Y. Includes 17 to 19, Viper Red
    Access Cover Ass'Y. Includes 17 to 19, Viper Red
  • 17
    269501006 Access Cover Ass'Y. Includes 17 to 19, Apple Green
    Access Cover Ass'Y. Includes 17 to 19, Apple Green
  • 18
    293250087 Gasket
    Gasket
  • 19
    293200020 Seal (Meter)
    Seal (Meter)
  • 20
    269500338 Hinge
    Hinge
  • 21
    205451660 Socket Head Screw M5 X 16
    Socket Head Screw M5 X 16
  • 22
    211200035 Flat Washer
    Flat Washer
  • 23
    232551200 Elastic Stop Nut 5 mm
    Elastic Stop Nut 5 mm
  • 24
    204000081 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 25
    234052600 Flat Washer 5 mm, Stainless
    Flat Washer 5 mm, Stainless
  • 26
    291001242 Anchoring Stud
    Anchoring Stud
  • 27
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 28
    269501125 Latch
    Latch
  • 29
    293200093 Neoprene Seal
    Neoprene Seal
  • 30
    293200093 Neoprene Seal
    Neoprene Seal
  • 31
    269501379 Lower Storage Cover. Includes 31 to 33
    Lower Storage Cover. Includes 31 to 33
  • 32
    269500252 Nut Housing Ass'y M6. Includes 32 to 33
    Nut Housing Ass'y M6. Includes 32 to 33
  • 33
    232061600 Hex Nut M6
    Hex Nut M6
  • 34
    241141660 Hex Flanged Screw K40 X 16
    Hex Flanged Screw K40 X 16
  • 35
    293830005 Rubber Plug
    Rubber Plug
  • 36
    269501133 Storage Box
    Storage Box
  • 37
    269700076 Latch Cover
    Latch Cover
  • 38
    269000015 Latch Base
    Latch Base
  • 39
    269700077 Latch Lever
    Latch Lever
  • 40
    269700017 Latch Spring
    Latch Spring
  • 41
    207063060 Hex Screw M6 X 30
    Hex Screw M6 X 30
  • 42
    234061600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 43
    234161601 Lock Washer 6 mm
    Lock Washer 6 mm
  • 44
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 45
    291001646 Ventilation Hose
    Ventilation Hose
  • 46
    293730011 Dart (Black)
    Dart (Black)
  • 47
    205562060 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 48
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 49
    293100003 Nut M6
    Nut M6
  • 50
    269501238 Front Grill
    Front Grill
  • 51
    241141660 Hex Flanged Screw K40 X 16
    Hex Flanged Screw K40 X 16
  • 52
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 53
    243163560 Plastite Hex Screw M6.8 X 35
    Plastite Hex Screw M6.8 X 35
  • 54
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
