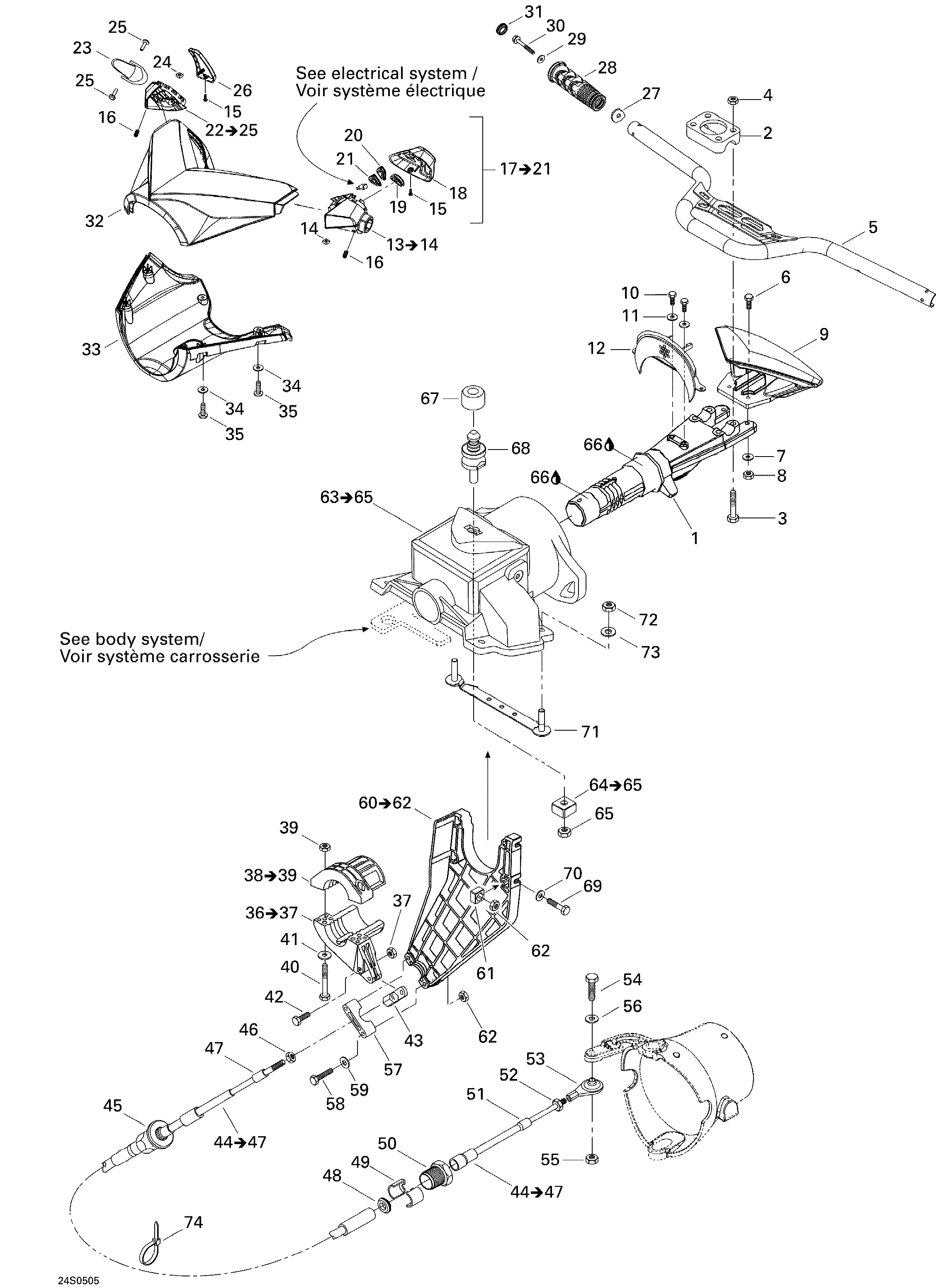

07- Steering System STD для BRP GTX 4-TEC, STD - 2005

‹-+›
  • №
    Артикул
    Название
  • 1
    277000562400 Steering Stem
    Steering Stem
  • 2
    277000142 Steering Clamp
    Steering Clamp
  • 3
    207085060 Hex Screw M8 X 50
    Hex Screw M8 X 50
  • 4
    232581600 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 5
    277001454 Handle Bar
    Handle Bar
  • 6
    207063060 Hex Screw M6 X 30
    Hex Screw M6 X 30
  • 7
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 8
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 9
    277001241 Handle Pad, Pearl Blue. STD
    Handle Pad, Pearl Blue. STD
  • 10
    211000036 Hex Flanged Screw 1/4''-20 X 1/2''
    Hex Flanged Screw 1/4''-20 X 1/2''
  • 11
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 12
    277000549 Plate
    Plate
  • 13
    277000954 Housing Ass'Y. Includes 13 to 14
    Housing Ass'Y. Includes 13 to 14
  • 14
    232860600 Square Nut M6
    Square Nut M6
  • 15
    209630960 Phillips Screw M3.9 X 9.5
    Phillips Screw M3.9 X 9.5
  • 16
    250000036 Socket Head Screw M6
    Socket Head Screw M6
  • 17
    277001061 LH Housing Cover Ass'y. STD, Includes 17 to 21
    LH Housing Cover Ass'y. STD, Includes 17 to 21
  • 19
    278001713 Stop Knob
    Stop Knob
  • 20
    278001714 Mode Knob
    Mode Knob
  • 21
    278001715 Set Knob
    Set Knob
  • 22
    277000995 Throttle Housing Ass'Y. Includes 22 to 25
    Throttle Housing Ass'Y. Includes 22 to 25
  • 23
    277001107 Throttle Handle
    Throttle Handle
  • 24
    232860600 Square Nut M6
    Square Nut M6
  • 25
    277000381 Pin
    Pin
  • 26
    277001023 Throttle Housing Cover. STD
    Throttle Housing Cover. STD
  • 27
    277000554 Handle Grip Insert
    Handle Grip Insert
  • 28
    277001243 Handle Grip, Pearl Blue. STD
    Handle Grip, Pearl Blue. STD
  • 29
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 30
    250000002 Hex Screw M6 X 30, Scotch Grip
    Hex Screw M6 X 30, Scotch Grip
  • 31
    277000203 Grip Cap
    Grip Cap
  • 32
    277000952 Upper Steering Cover, Black
    Upper Steering Cover, Black
  • 33
    277001145 Lower Steering Cover, Black
    Lower Steering Cover, Black
  • 34
    234051600 Flat Washer 5 mm, Stainless
    Flat Washer 5 mm, Stainless
  • 35
    241141660 Hex Flanged Screw K40 X 16
    Hex Flanged Screw K40 X 16
  • 36
    277000518 Steering Stem Arm. Includes 36 to 37
    Steering Stem Arm. Includes 36 to 37
  • 37
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 38
    277000519 Arm Thrust. Includes 38 to 39
    Arm Thrust. Includes 38 to 39
  • 39
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 40
    207162560 Hex. Screw M6 x 25
    Hex. Screw M6 x 25
  • 41
    234062600 Flat Washer 6 mm, Stainless
    Flat Washer 6 mm, Stainless
  • 42
    211000081 Hex Screw M6 X 30
    Hex Screw M6 X 30
  • 43
    277001180 Ball Joint
    Ball Joint
  • 44
    277001326 Steering Cable. Includes 44 to 47
    Steering Cable. Includes 44 to 47
  • 45
    277000782 Ajustment Knob
    Ajustment Knob
  • 46
    211100056 Hex Nut 1/4''-28
    Hex Nut 1/4''-28
  • 47
    277000441 Terminal Wiper
    Terminal Wiper
  • 48
    293830063 Rubber Washer
    Rubber Washer
  • 49
    277000783 Half-Ring
    Half-Ring
  • 50
    277000784 Cable Lock
    Cable Lock
  • 51
    277000441 Terminal Wiper
    Terminal Wiper
  • 52
    211100056 Hex Nut 1/4''-28
    Hex Nut 1/4''-28
  • 53
    277000775 Ball Joint
    Ball Joint
  • 54
    207063560 Hex Screw M6 X 35
    Hex Screw M6 X 35
  • 55
    232561600 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 56
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 57
    277000162 Support Thrust
    Support Thrust
  • 58
    207065060 Hex Screw M6 X 50
    Hex Screw M6 X 50
  • 59
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 60
    277000516 Cable Support. Includes 60 to 62
    Cable Support. Includes 60 to 62
  • 61
    269500252 Nut Housing Ass'y M6
    Nut Housing Ass'y M6
  • 62
    232061600 Hex Nut M6
    Hex Nut M6
  • 63
    277000515 Steering Support. Includes 63 to 65
    Steering Support. Includes 63 to 65
  • 64
    271000598 Nut Housing Ass'y. Includes 64 to 65
    Nut Housing Ass'y. Includes 64 to 65
  • 65
    232501600 Hex Elastic Nut M10
    Hex Elastic Nut M10
  • 66
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 67
    293830078 Rubber Pad
    Rubber Pad
  • 68
    291002147 Latch Stud
    Latch Stud
  • 69
    207162060 Hex Screw M6 X 20
    Hex Screw M6 X 20
  • 70
    234061600 Flat Washer 6 mm
    Flat Washer 6 mm
  • 71
    277001072 Steering Support
    Steering Support
  • 72
    232581600 Elastic Stop Nut M8
    Elastic Stop Nut M8
  • 73
    234081600 Flat Washer 8 mm
    Flat Washer 8 mm
  • 74
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
