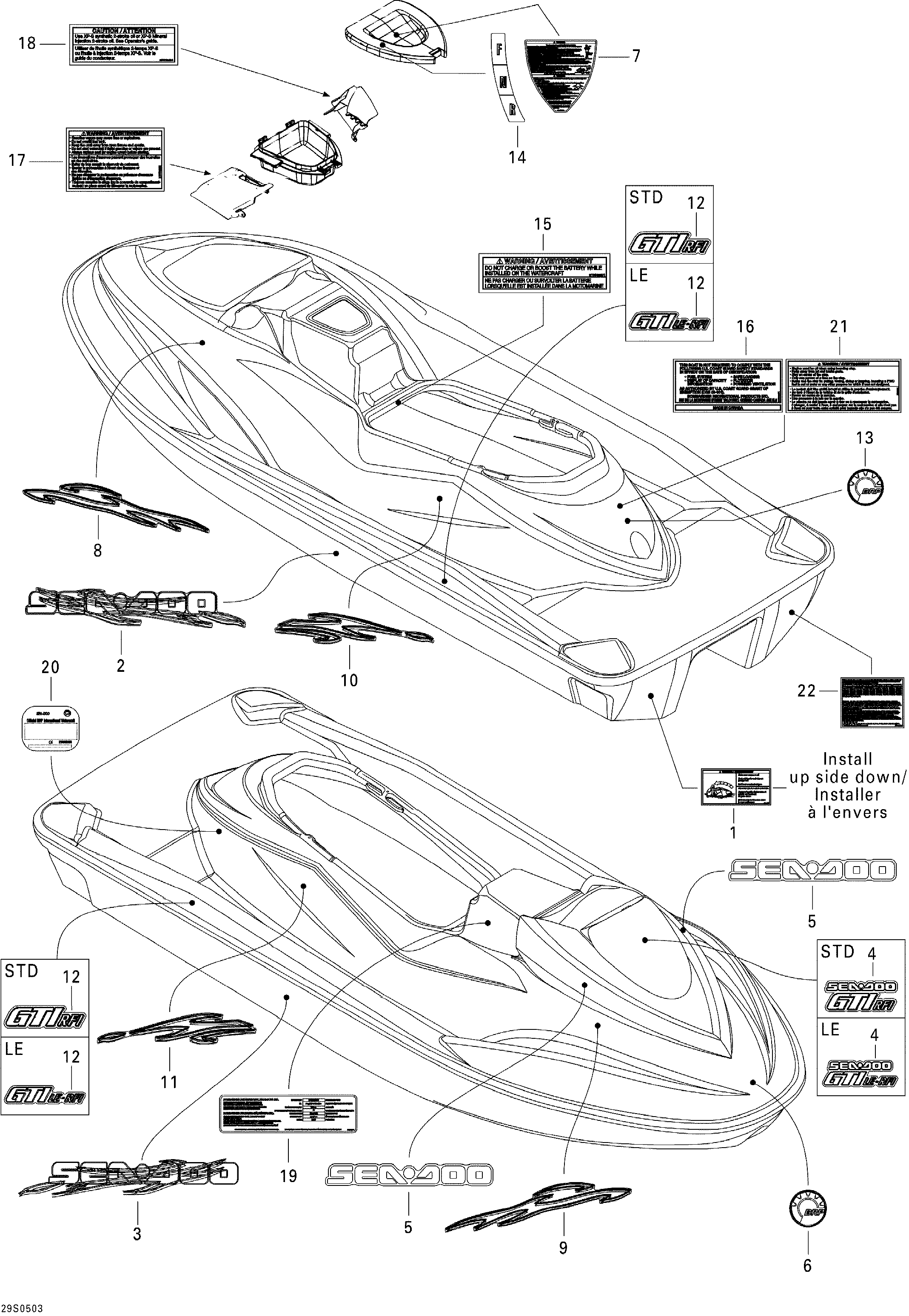

09- Decals STD для BRP GTI RFI STD - 2005
‹-+›
-
№АртикулНазвание
-
1219902057 Warning Label, TipoverWarning Label, Tipover
-
2219902363 LH Sea-doo DecalLH Sea-doo Decal
-
3219902419 RH Sea-doo DecalRH Sea-doo Decal
-
4219902428 Deflector Decal. STDDeflector Decal. STD
-
5219902425 Sea-doo DecalSea-doo Decal
-
6219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
7219901683 Warning Label, Death/injuriesWarning Label, Death/injuries
-
8219902359 LH Front Side DecalLH Front Side Decal
-
9219902360 RH Front Side DecalRH Front Side Decal
-
10219902361 LH Rear Side DecalLH Rear Side Decal
-
11219902362 RH Rear Side DecalRH Rear Side Decal
-
12219902427 Identification Decal. STDIdentification Decal. STD
-
13219902471 BRP LogoBRP Logo
-
14219902366 Reverse DecalReverse Decal
-
15219902201 Warning Label, BatteryWarning Label, Battery
-
16219902498 BRP Exemption LabelBRP Exemption Label
-
17219902202 Warning Label, FuelWarning Label, Fuel
-
18219902485 Caution Label, OilCaution Label, Oil
-
19219902457 E.P.A. LabelE.P.A. Label
-
20219902496 Label CE. InternationalLabel CE. International
-
22219902350 Pending LabelPending Label
