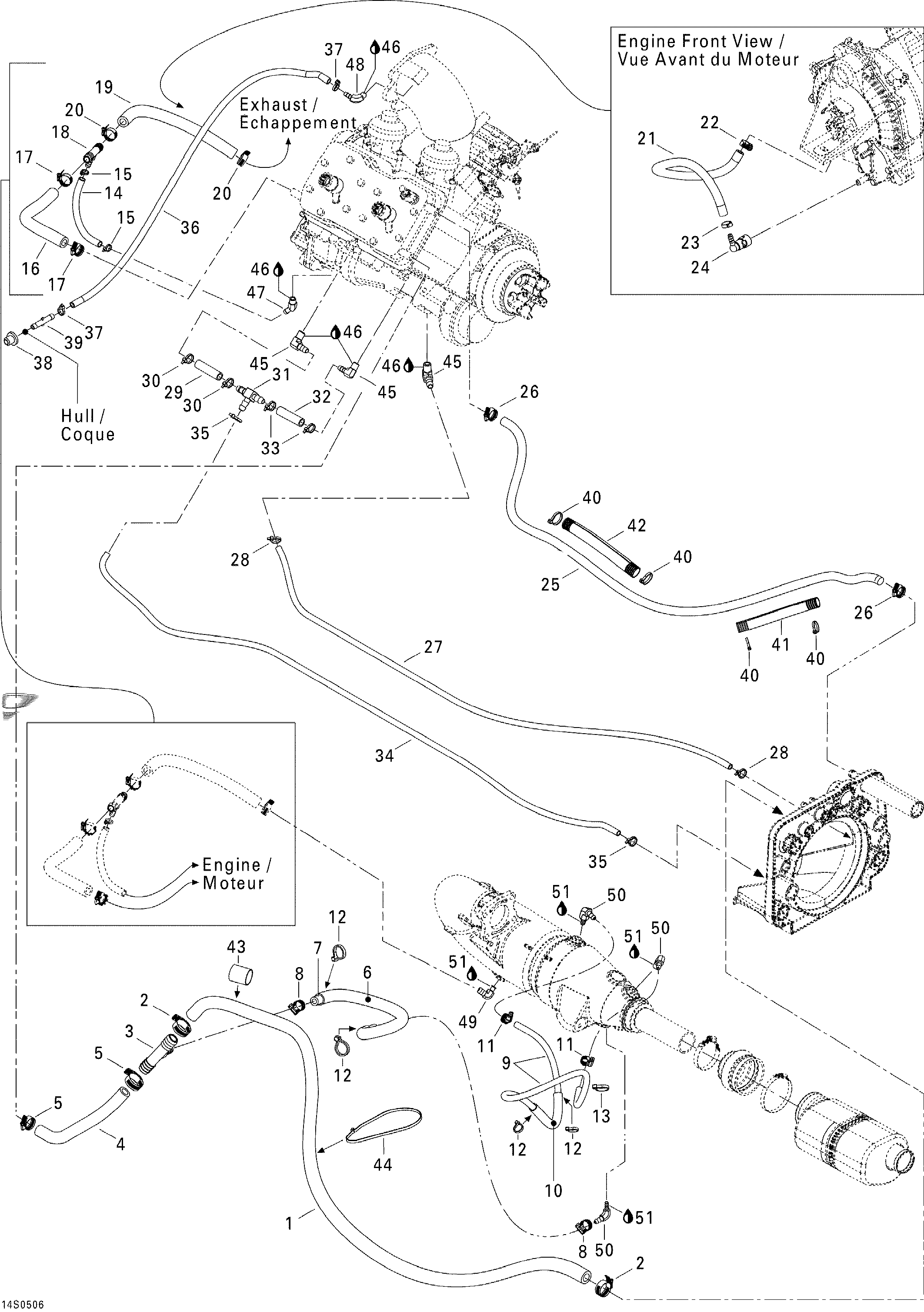

01- Cooling System для BRP 3D RFI - 2005
‹-+›
-
№АртикулНазвание
-
1276000001 Hose 12.5 mmHose 12.5 mm
-
2293650172 Tridon ClampTridon Clamp
-
3293710025 T-FittingT-Fitting
-
4276000104 Lower Formed HoseLower Formed Hose
-
5293650172 Tridon ClampTridon Clamp
-
6415080000 Tubing 16mmTubing 16mm
-
7275500548 Hose 5/16''Hose 5/16''
-
8293650170 Tridon ClampTridon Clamp
-
9275500548 Hose 5/16''Hose 5/16''
-
10415080000 Tubing 16mmTubing 16mm
-
11293650170 Tridon ClampTridon Clamp
-
12293750002 Tie-rap 130 mmTie-rap 130 mm
-
13293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
14275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
15293750001 Tie Rap 94 mmTie Rap 94 mm
-
16276000001 Hose 12.5 mmHose 12.5 mm
-
17293650172 Tridon ClampTridon Clamp
-
18293710025 T-FittingT-Fitting
-
19276000001 Hose 12.5 mmHose 12.5 mm
-
20293650172 Tridon ClampTridon Clamp
-
21275500548 Hose 5/16''Hose 5/16''
-
22293650170 Tridon ClampTridon Clamp
-
23293650047 Oetiker ClampOetiker Clamp
-
24293710067 Quick FittingQuick Fitting
-
25276000001 Hose 12.5 mmHose 12.5 mm
-
26293650172 Tridon ClampTridon Clamp
-
27275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
28293750001 Tie Rap 94 mmTie Rap 94 mm
-
29275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
30293750001 Tie Rap 94 mmTie Rap 94 mm
-
31293710061 T-FittingT-Fitting
-
32275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
33293750001 Tie Rap 94 mmTie Rap 94 mm
-
34275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
35293750001 Tie Rap 94 mmTie Rap 94 mm
-
36276000048 Hose 6 mmHose 6 mm
-
37293750001 Tie Rap 94 mmTie Rap 94 mm
-
38293720029 GrommetGrommet
-
39293710039 Straight FittingStraight Fitting
-
40293750002 Tie-rap 130 mmTie-rap 130 mm
-
41409902200 Protector ShieldProtector Shield
-
42409902200 Protector ShieldProtector Shield
-
43276000132 Shrink TubingShrink Tubing
-
44293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
45293700016 Elbow Fitting 90°Elbow Fitting 90°
-
46293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
47293700036 Elbow Fitting 45°Elbow Fitting 45°
-
48293710048 Elbow Fitting 90°Elbow Fitting 90°
-
49293700023 Elbow Fitting 90°Elbow Fitting 90°
-
50293700024 Elbow Fitting 90°Elbow Fitting 90°
-
51293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
