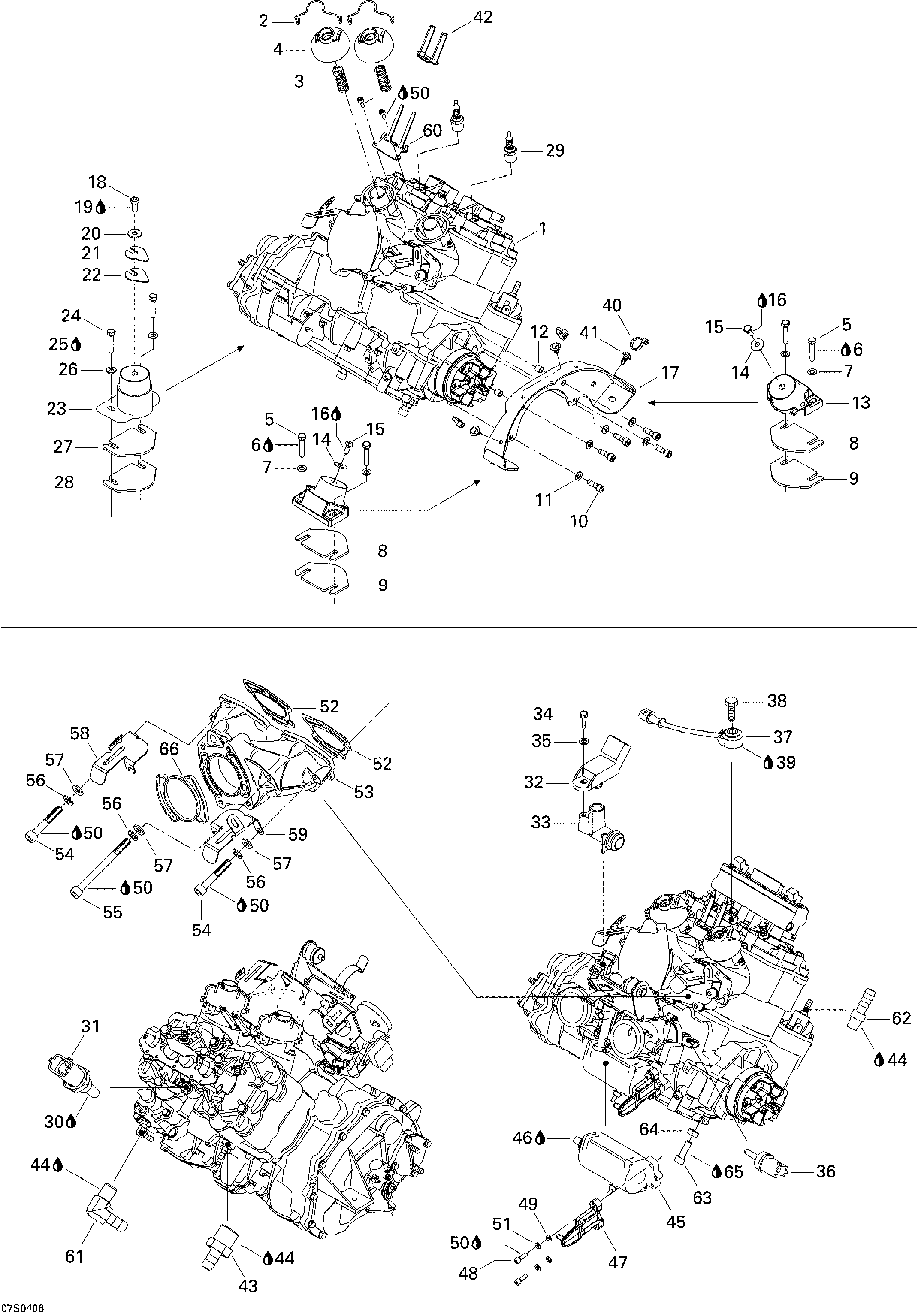

01- Engine для BRP XP DI - 2004
-
№АртикулНазвание
-
1270000600 Rotax Engine 947-DiRotax Engine 947-Di
-
2420838083 Spring ClipSpring Clip
-
3420939130 Compression SpringCompression Spring
-
4420911557 Valve CoverValve Cover
-
5207184060 Hex Screw M8 X 40Hex Screw M8 X 40
-
6293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
7234081600 Flat Washer 8 mmFlat Washer 8 mm
-
8270000122 Shim 0.3 mmShim 0.3 mm
-
9270000123 Shim 1.3 mmShim 1.3 mm
-
10205582560 Socket Screw M8 X 25 (Scotch Grip)Socket Screw M8 X 25 (Scotch Grip)
-
11234081600 Flat Washer 8 mmFlat Washer 8 mm
-
12270000453 BushingBushing
-
13270000421 Rubber Mount (Black)Rubber Mount (Black)
-
14234082600 Flat Washer 8 mmFlat Washer 8 mm
-
15207181660 Hex Screw M8 X 16Hex Screw M8 X 16
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17270000515 Engine Support (Black)Engine Support (Black)
-
18207182060 Hex Screw M8 X 20Hex Screw M8 X 20
-
19293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
20234082600 Flat Washer 8 mmFlat Washer 8 mm
-
21270000025 Shim 1.3 mmShim 1.3 mm
-
22270000024 Shim 0.3 mmShim 0.3 mm
-
23270000430 Rubber Mount (Black)Rubber Mount (Black)
-
24207184060 Hex Screw M8 X 40Hex Screw M8 X 40
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26234081600 Flat Washer 8 mmFlat Washer 8 mm
-
27270000122 Shim 0.3 mmShim 0.3 mm
-
28270000123 Shim 1.3 mmShim 1.3 mm
-
29278001650 Spark Plug NGK Zfr4F-11Spark Plug NGK Zfr4F-11
-
30293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
31278001016 Temperature SensorTemperature Sensor
-
32270600040 Pressure SensorPressure Sensor
-
33270600019 Valve AdaptorValve Adaptor
-
34243041660 Hex Plastite Screw M4.8 X 16Hex Plastite Screw M4.8 X 16
-
35211200035 Flat WasherFlat Washer
-
36270600000 Air Temperature SensorAir Temperature Sensor
-
37270000484 Noise SensorNoise Sensor
-
38207183060 Hex Screw M8 X 30Hex Screw M8 X 30
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293730018 Mount DartMount Dart
-
42278001512 InsulatorInsulator
-
43293710066 Male ConnectorMale Connector
-
44293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
45278001937 Starter Ass'Y (Black)Starter Ass'Y (Black)
-
46293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
47273000227 Air Silencer SupportAir Silencer Support
-
48205063560 Socket Head Screw M6 X 35Socket Head Screw M6 X 35
-
49234061600 Flat Washer 6 mmFlat Washer 6 mm
-
50293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
51234161601 Lock Washer 6 mmLock Washer 6 mm
-
52420931653 Gasket (Exhaust Manifold)Gasket (Exhaust Manifold)
-
53420979607 Exhaust ManifoldExhaust Manifold
-
54205006060 Socket Head Screw M10 X 60Socket Head Screw M10 X 60
-
55420941483 Socket Head Screw M10 X 110Socket Head Screw M10 X 110
-
56234101601 Lock Washer 10 mm (Stainless)Lock Washer 10 mm (Stainless)
-
57234000600 Flat Washer 10 mmFlat Washer 10 mm
-
58273000170 Duct Support (Mag)Duct Support (Mag)
-
59273000169 Duct Support (PTO)Duct Support (PTO)
-
60278001662 Ground PlateGround Plate
-
61293700016 Elbow Fitting 90°Elbow Fitting 90°
-
62293710082 Straight Fitting (Male)Straight Fitting (Male)
-
63205003060 Socket Screw M10 X 30Socket Screw M10 X 30
-
64232001600 Hex Nut M10Hex Nut M10
-
65293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
66420931990 Exhaust GasketExhaust Gasket
