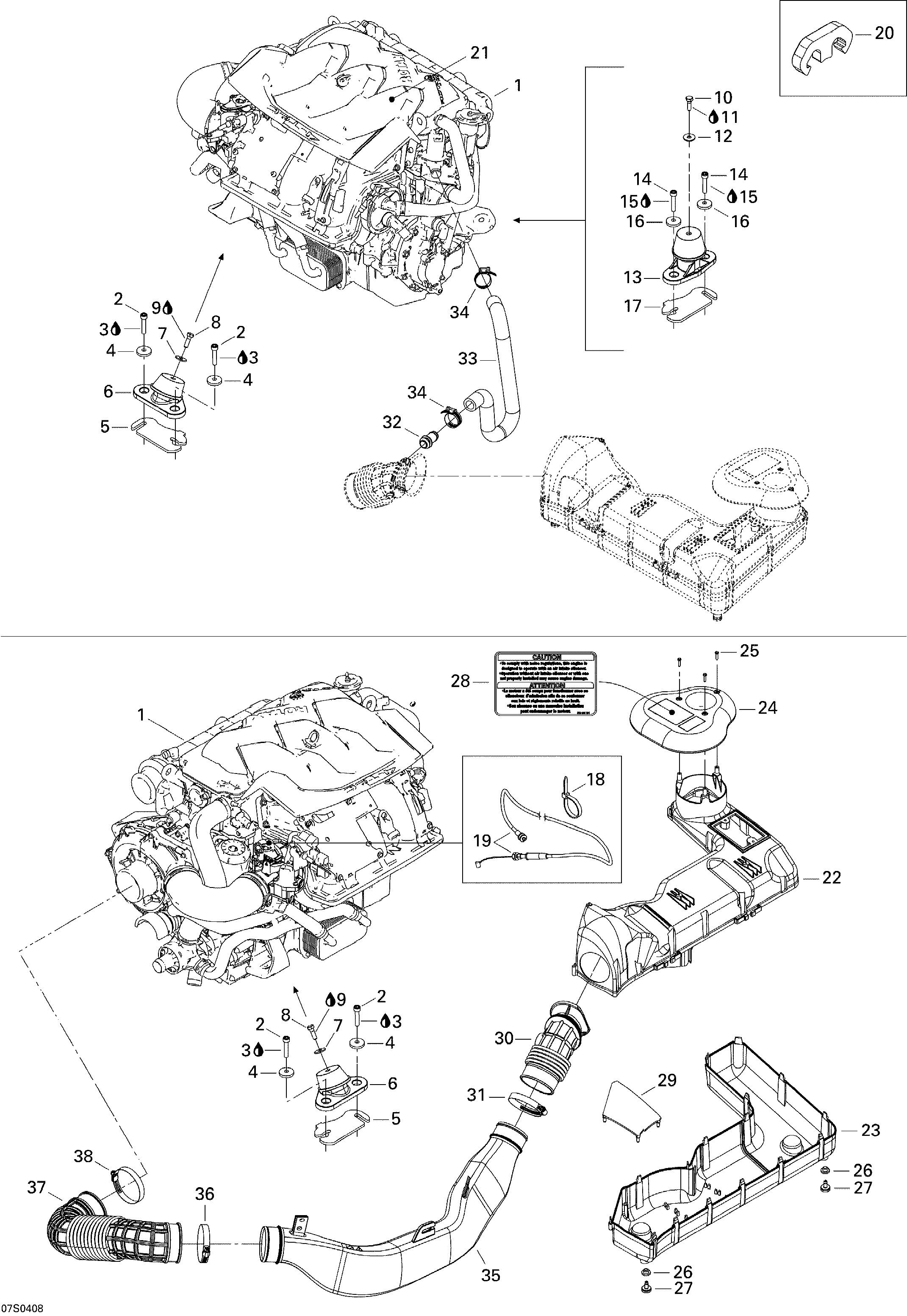

01- Engine Support And Air Intake для BRP RXP - 2004
‹-+›
-
№АртикулНазвание
-
1270000570 Rotax Engine 4 Strokes 1503Rotax Engine 4 Strokes 1503
-
2205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
3293800060 Loctite 243Loctite 243
-
4250200018 Conical WasherConical Washer
-
5270000445 Shim 0.3 mmShim 0.3 mm
-
5270000446 Shim 1.3 mmShim 1.3 mm
-
6270000633 Rubber Mount (Black)Rubber Mount (Black)
-
7234082600 Flat Washer M8Flat Washer M8
-
8207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
9293800060 Loctite 243Loctite 243
-
10207182560 Hex Screw M8 X 25Hex Screw M8 X 25
-
11293800060 Loctite 243Loctite 243
-
12234082600 Flat Washer M8Flat Washer M8
-
13270000635 Rubber MountRubber Mount
-
14205084060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
15293800060 Loctite 243Loctite 243
-
16250200018 Conical WasherConical Washer
-
17270000445 Shim 0.3 mmShim 0.3 mm
-
17270000446 Shim 1.3 mmShim 1.3 mm
-
18414115200 Tie-RapTie-Rap
-
19277001070 Throttle CableThrottle Cable
-
20277000279 Lock TabLock Tab
-
21420660178 CoverCover
-
22273000222 Upper Air SilencerUpper Air Silencer
-
23273000190 Air Silencer LowerAir Silencer Lower
-
24273000192 Air Silencer CoverAir Silencer Cover
-
25241141660 Hex Flanged Screw K40 X 16Hex Flanged Screw K40 X 16
-
26293720064 GrommetGrommet
-
27275500454 Check ValveCheck Valve
-
28516001191 Instruction Label (Air Silencer)Instruction Label (Air Silencer)
-
29273000206 DeflectorDeflector
-
30273000186 Intake HoseIntake Hose
-
31293650064 Tridon ClampTridon Clamp
-
32273000195 BreatherBreather
-
33275500604 HoseHose
-
34293650051 Tridon Gear ClampTridon Gear Clamp
-
35273000185 Intake HoseIntake Hose
-
36293650107 Tridon ClampTridon Clamp
-
37273000188 Intake HoseIntake Hose
-
38293650107 Tridon ClampTridon Clamp
