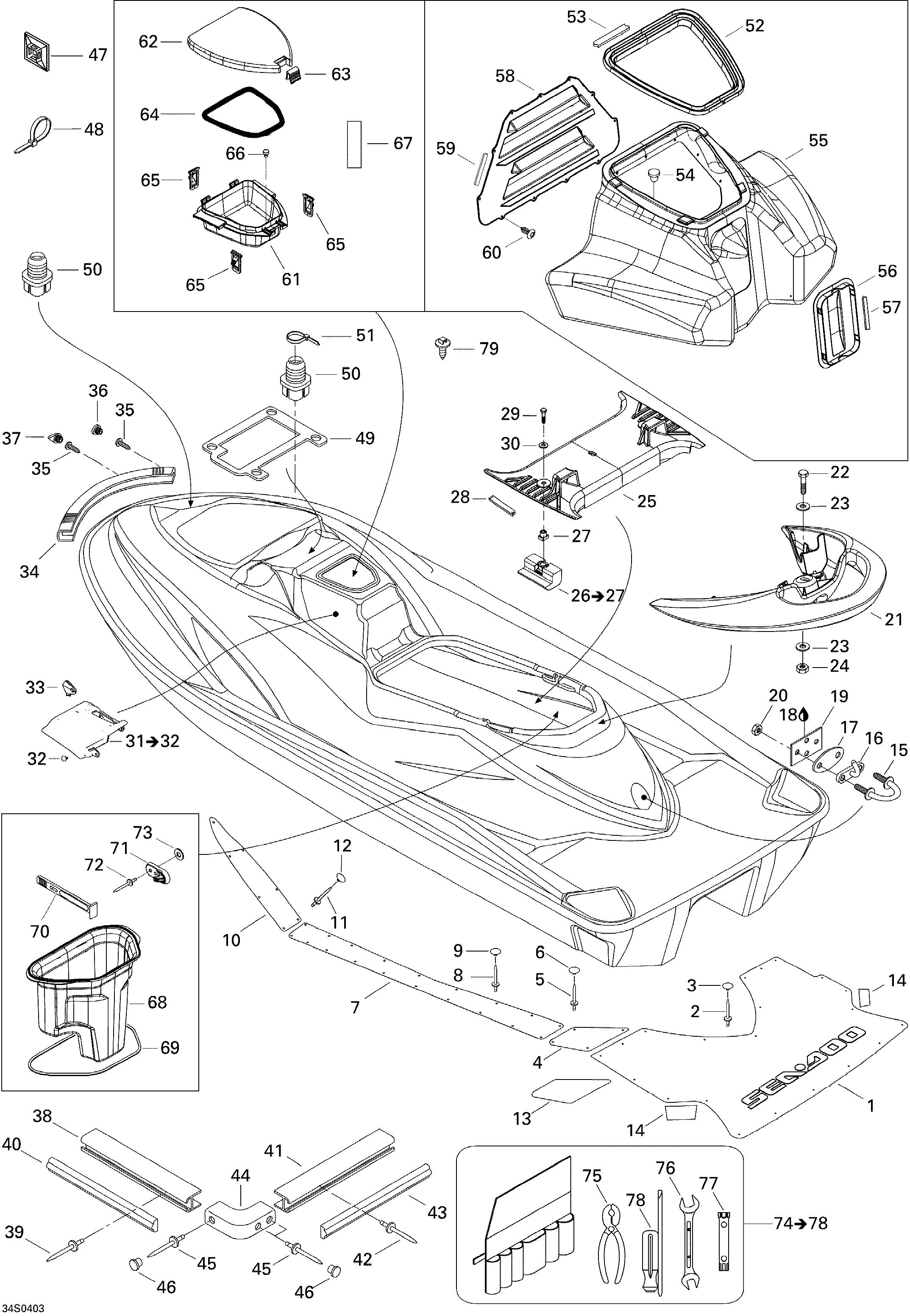

09- Body для BRP GTI RFI - 2004
‹-+›
-
№АртикулНазвание
-
1291001584 Rear Carpet (Black)Rear Carpet (Black)
-
2293150006 Pop Rivet1/8Pop Rivet1/8
-
3293000014 Snap Cap (Black)Snap Cap (Black)
-
4291001464 RH Rear Carpet. GTI LE RFIRH Rear Carpet. GTI LE RFI
-
4291001465 LH Rear Carpet. GTI LE RFILH Rear Carpet. GTI LE RFI
-
5293150006 Pop Rivet1/8. GTI LE RFIPop Rivet1/8. GTI LE RFI
-
6293000014 Snap Cap (Black). GTI LE RFISnap Cap (Black). GTI LE RFI
-
7291001817 Center Carpet (Black). GTI LE RFICenter Carpet (Black). GTI LE RFI
-
7291001818 Center Carpet (Black). GTI LE RFICenter Carpet (Black). GTI LE RFI
-
8293150006 Pop Rivet1/8. GTI LE RFIPop Rivet1/8. GTI LE RFI
-
9293000014 Snap Cap (Black). GTI LE RFISnap Cap (Black). GTI LE RFI
-
10291001384 RH Carpet (Black). GTI LE RFIRH Carpet (Black). GTI LE RFI
-
10291001385 LH Carpet (Black). GTI LE RFILH Carpet (Black). GTI LE RFI
-
11293150006 Pop Rivet1/8. GTI LE RFIPop Rivet1/8. GTI LE RFI
-
12293000014 Snap Cap (Black). GTI LE RFISnap Cap (Black). GTI LE RFI
-
13291001665 RH Anti-Skid. GTI STD RFIRH Anti-Skid. GTI STD RFI
-
13291001666 LH Anti-Skid. GTI STD RFILH Anti-Skid. GTI STD RFI
-
14291001919 Anti-Skid (Black)Anti-Skid (Black)
-
15292000011 U-ClampU-Clamp
-
16291001232 HookHook
-
17291001386 Finition Plate (Black)Finition Plate (Black)
-
18296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
19291001387 Retainer PlateRetainer Plate
-
20232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
21269000812 Grag HandleGrag Handle
-
22207084560 Hex Screw M8 X 45Hex Screw M8 X 45
-
23234081600 Flat Washer M8Flat Washer M8
-
24232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
25291001854 Upper BridgeUpper Bridge
-
26291001525 Link Bridge. Includes 26 to 27Link Bridge. Includes 26 to 27
-
27211100033 Square Nut M8Square Nut M8
-
28293250008 GasketGasket
-
29207384060 Hex Screw M8 X 40 (Scotch Grip)Hex Screw M8 X 40 (Scotch Grip)
-
30234082600 Flat Washer M8Flat Washer M8
-
31291001649 RH Grill (Black). Includes 31 to 32RH Grill (Black). Includes 31 to 32
-
31291001650 LH Grill (Black). Includes 31 to 32LH Grill (Black). Includes 31 to 32
-
32293730010 DartDart
-
33291001730 Spacer. GTI STD RFISpacer. GTI STD RFI
-
34291001942 Bumper Nose Ass'Y (Black)Bumper Nose Ass'Y (Black)
-
35250000207 Plastite Torx Button Head Screw M10 X 7/8''Plastite Torx Button Head Screw M10 X 7/8''
-
36291001519 Bumper Plug (Black)Bumper Plug (Black)
-
37291001040 Bumper Plug (Black)Bumper Plug (Black)
-
38291001606 Side Bumper (Black)Side Bumper (Black)
-
39293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
40291001520 Side Bumper Trim (Black). GTI STD RFISide Bumper Trim (Black). GTI STD RFI
-
40291001814 Side Bumper Trim (Sonoran Sand). GTI LE RFISide Bumper Trim (Sonoran Sand). GTI LE RFI
-
41291001483 Rear Bumper (Black)Rear Bumper (Black)
-
42293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
43291001521 Rear Bumper Trim (Black). GTI STD RFIRear Bumper Trim (Black). GTI STD RFI
-
43291001815 Rear Bumper Trim (Sonoran Sand). GTI LE RFIRear Bumper Trim (Sonoran Sand). GTI LE RFI
-
44291001505 Bumper Corner (Black)Bumper Corner (Black)
-
45293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
46291000339 Bumper Plug (Black)Bumper Plug (Black)
-
47293750025 Tie-Rap MountTie-Rap Mount
-
48414115200 Tie-RapTie-Rap
-
49293250068 Gasket. Canada / United StatesGasket. Canada / United States
-
50293720042 Grommet. GTI LE RFIGrommet. GTI LE RFI
-
50293720042 Grommet. GTI STD RFIGrommet. GTI STD RFI
-
51414115200 Tie-Rap. Canada / United StatesTie-Rap. Canada / United States
-
52269501129 Cover TrimCover Trim
-
53293200093 Neoprene SealNeoprene Seal
-
54291000279 Plug (Black)Plug (Black)
-
56291001744 Front DoorFront Door
-
57293250087 GasketGasket
-
58291001631 Rear DoorRear Door
-
59293250087 GasketGasket
-
60293150089 Rivet Tuflok (Plastic)Rivet Tuflok (Plastic)
-
61269500717 Gloves BoxGloves Box
-
62269500928 Gloves Box DoorsGloves Box Doors
-
63269500719 LatchLatch
-
64293250100 GasketGasket
-
65269500820 Retainer LatchRetainer Latch
-
66293830005 Rubber PlugRubber Plug
-
67293250099 GasketGasket
-
68269500990 Rear TrayRear Tray
-
69293250008 GasketGasket
-
70269500408 StrapStrap
-
71269500521 HookHook
-
72293150039 Rivet-Pop 3/16Rivet-Pop 3/16
-
73234052600 Flat Washer M5Flat Washer M5
-
74294000680 Owner Tool Kit Ass'Y. Includes 74 to 78Owner Tool Kit Ass'Y. Includes 74 to 78
-
76529017300 Fork WrenchFork Wrench
-
78529019200 Driver ScrewDriver Screw
-
79293730018 Mount DartMount Dart
