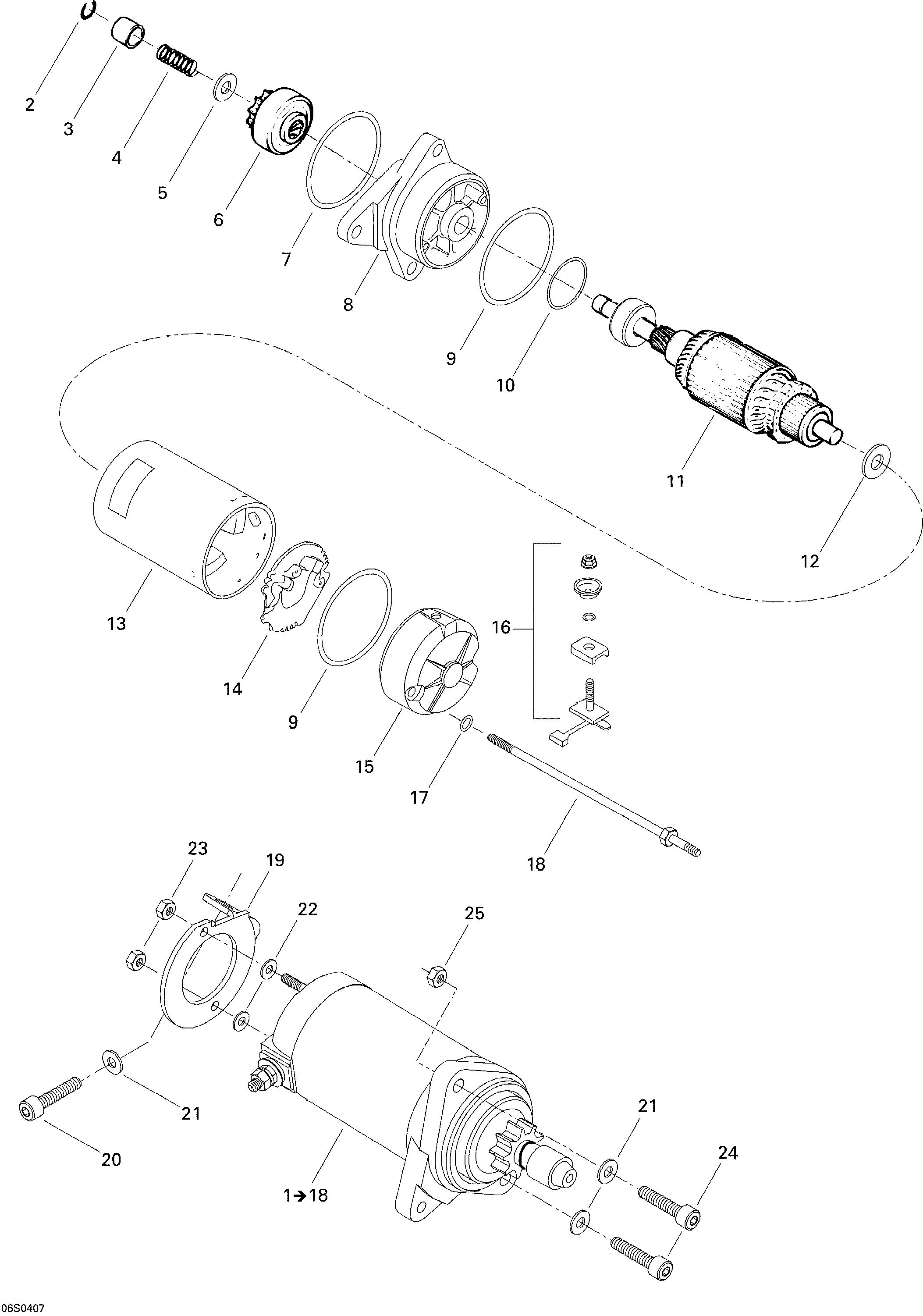

04- Electric Starter для BRP 3D RFI - 2004
‹-+›
-
№АртикулНазвание
-
1278001936 Starter Ass'y. Includes 1 to 18Starter Ass'y. Includes 1 to 18
-
2410207700 CirclipCirclip
-
3278000254 Stopper BushingStopper Bushing
-
5278001105 Flat WasherFlat Washer
-
6278001106 Starter Clutch Ass'YStarter Clutch Ass'Y
-
7278000694 O-RingO-Ring
-
8278001520 Housing Ass'YHousing Ass'Y
-
9278000695 O-RingO-Ring
-
10278000696 O-RingO-Ring
-
11278001108 ArmatureArmature
-
12278000056 Thrust WasherThrust Washer
-
13278001109 Yoke Ass'YYoke Ass'Y
-
14278001296 Brush HolderBrush Holder
-
15278001111 Rear CoverRear Cover
-
16278001298 Brush Starter KitBrush Starter Kit
-
17278000060 O-RingO-Ring
-
18278000170 Retainer StudRetainer Stud
-
19270000467 Starter SupportStarter Support
-
20205081660 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
21234081600 Flat Washer 8 mmFlat Washer 8 mm
-
22234051600 Flat Washer M5Flat Washer M5
-
23232551600 Hex Elastic Nut M5Hex Elastic Nut M5
-
24205084560 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
25232581600 Elastic Stop Nut M8Elastic Stop Nut M8
