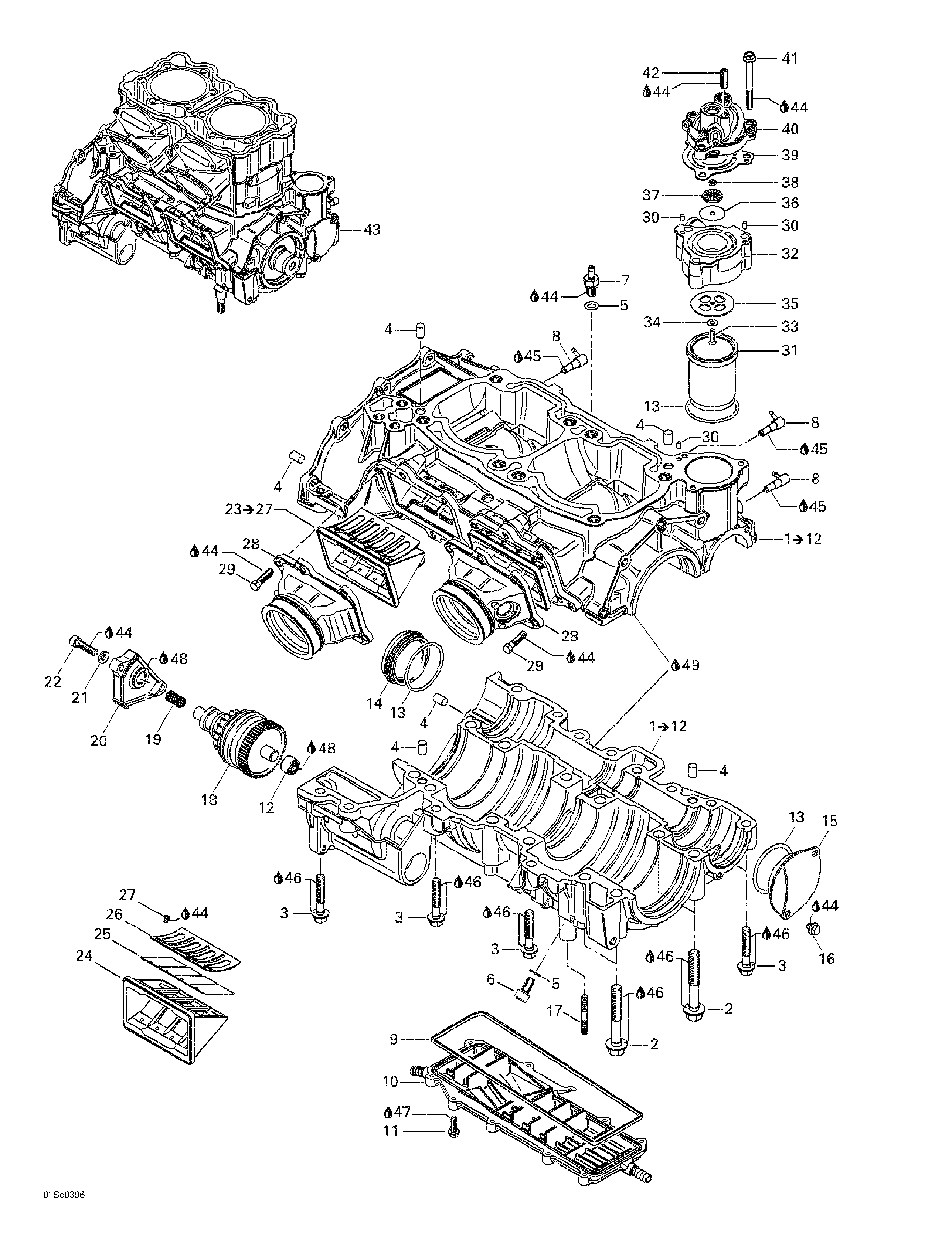

01- Crankcase, Reed Valve для BRP XP DI, 6130/6131 - 2003

  • №
    Артикул
    Название
  • 1
    420888532 Crankcase ass'y >. Includes 1 - 12.
    Crankcase ass'y >. Includes 1 - 12.
  • 2
    420941333 Hex. flanged screw M10 x 73.5
    Hex. flanged screw M10 x 73.5
  • 3
    420940638 Hex. flanged screw M8 x 45
    Hex. flanged screw M8 x 45
  • 4
    420632010 Pin 8 x 12
    Pin 8 x 12
  • 5
    420950141 Sealing ring
    Sealing ring
  • 6
    205081660 Socket head screw M8 x 16
    Socket head screw M8 x 16
  • 7
    420640970 Vent nipple M8
    Vent nipple M8
  • 8
    420956510 Check valve
    Check valve
  • 9
    420931880 Rubber ring
    Rubber ring
  • 10
    420811430 Waterchannel cover
    Waterchannel cover
  • 11
    420841558 Taptite screw M5 x 20
    Taptite screw M5 x 20
  • 12
    420232480 Needle bushing
    Needle bushing
  • 13
    420230300 O-ring
    O-ring
  • 14
    420811200 Bearing cover
    Bearing cover
  • 15
    420811205 Bearing cover
    Bearing cover
  • 16
    207661244 Hex. flanged screw M6 x 12
    Hex. flanged screw M6 x 12
  • 17
    420840290 Stud M10 x 18
    Stud M10 x 18
  • 18
    420888042 Starter drive ass'y
    Starter drive ass'y
  • 19
    420938204 Spring
    Spring
  • 20
    420811210 Cover
    Cover
  • 21
    420845020 Spring washer
    Spring washer
  • 22
    420840401 Socket head screw M6 x 22
    Socket head screw M6 x 22
  • 23
    420924602 Reed valve ass'y. Includes 23 - 27.
    Reed valve ass'y. Includes 23 - 27.
  • 25
    420924612 Reed pedal
    Reed pedal
  • 26
    420924617 Reed pedal stop
    Reed pedal stop
  • 27
    420941215 Oval head screw M3 x 5
    Oval head screw M3 x 5
  • 28
    420867890 Carburator adapter ass'y
    Carburator adapter ass'y
  • 29
    207662544 Hex. flanged screw M6 x 25
    Hex. flanged screw M6 x 25
  • 30
    420232020 Pin
    Pin
  • 31
    420923910 Compressor sleeve
    Compressor sleeve
  • 32
    420923891 Compressor head
    Compressor head
  • 33
    420841368 Oval head screw
    Oval head screw
  • 34
    420944590 Washer
    Washer
  • 35
    420854500 Inlet reed disk
    Inlet reed disk
  • 36
    420854510 Outlet reed disk
    Outlet reed disk
  • 37
    420944600 Diaphragm guide
    Diaphragm guide
  • 38
    420242533 Lock nut M4
    Lock nut M4
  • 39
    420931870 Gasket
    Gasket
  • 40
    420923901 Compressor co ver
    Compressor co ver
  • 41
    420640563 Hex. flanged screw M6 x 55
    Hex. flanged screw M6 x 55
  • 42
    420640873 Adjuster screw M6 x 25
    Adjuster screw M6 x 25
  • 43
    420094706 Short block ass'y (947 DI)
    Short block ass'y (947 DI)
  • 44
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 45
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 46
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 47
    293800070 Loctite 767, antiseize lubricant, 8 oz
    Loctite 767, antiseize lubricant, 8 oz
  • 48
    413707000 Molykote 111
    Molykote 111
  • 49
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
  • 50
    420888134 Engine gasket set (not shown)
    Engine gasket set (not shown)
  • 51
    420888139 Cylinder gasket set (not shown)
    Cylinder gasket set (not shown)
