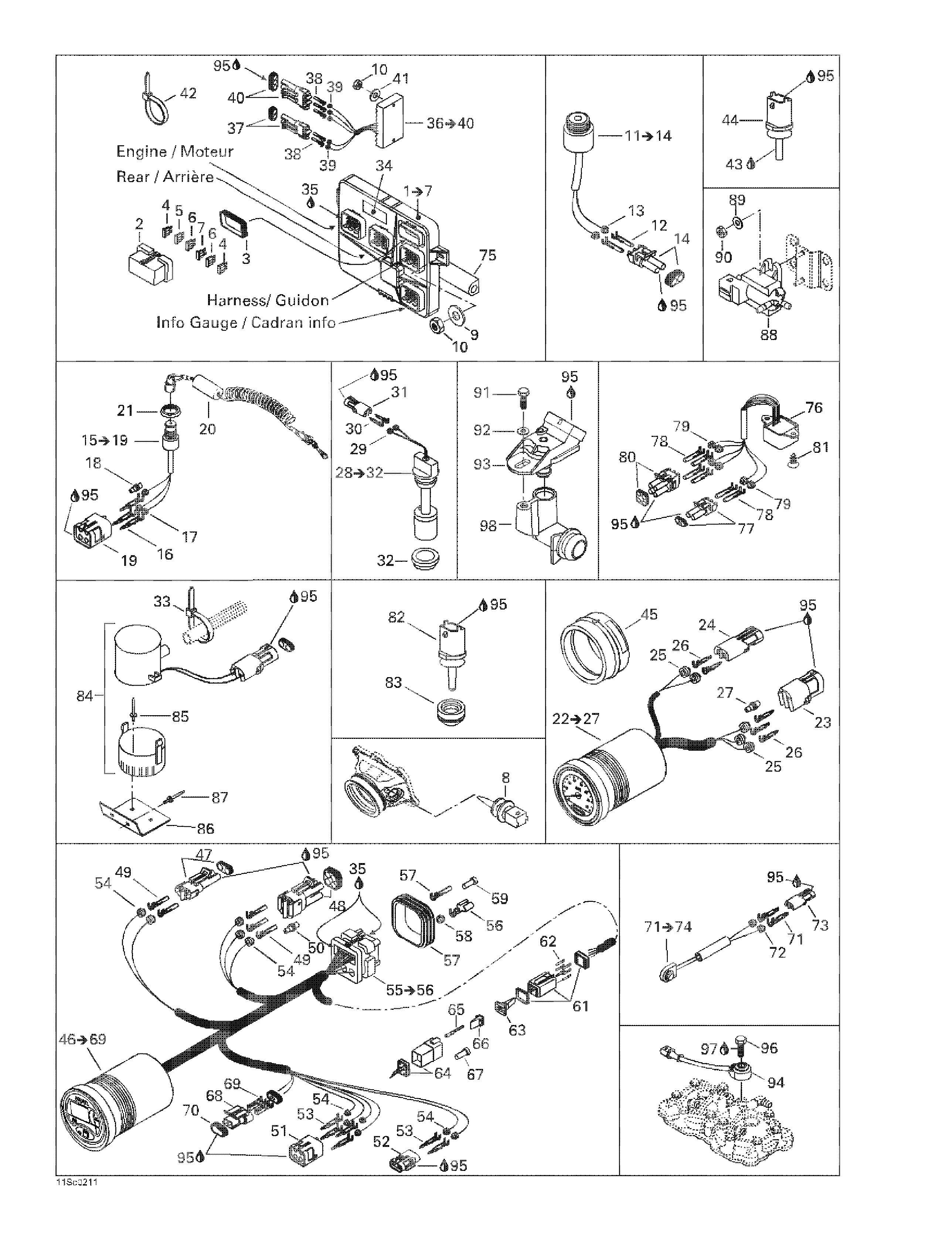

10- Electronic Module And Electrical Accessories для BRP LRV DI, 5771 - 2003

№

Артикул

Название
1

278001747 Electronic Module Ass'y. Includes 1 - 7.

Electronic Module Ass'y. Includes 1 - 7.
2

278001069 Fuse Holder

Fuse Holder
3

278001070 Seal

Seal
4

278000343 Fuse 15 Amp

Fuse 15 Amp
5

278001442 Fuse 2 Amp

Fuse 2 Amp
6

278001443 Fuse 25 Amp

Fuse 25 Amp
7

278001196 Fuse 3 Amp

Fuse 3 Amp
8

270600000 Air Temp Sensor

Air Temp Sensor
9

234062600 Flat Washer 6 mm

Flat Washer 6 mm
10

232561600 Elastic Stop Nut M6

Elastic Stop Nut M6
11

278000978 Buzzer Ass'y. Includes 11 - 14.

Buzzer Ass'y. Includes 11 - 14.
12

278000223 Female Terminal (18 Gauge)

Female Terminal (18 Gauge)
13

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
14

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
15

278000977 Safety Switch. Includes 15 - 19.

Safety Switch. Includes 15 - 19.
16

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
17

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
18

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
19

278000890 Female Housing (4 Circuits)

Female Housing (4 Circuits)
20

278001543 Safety Lanyard Ass'y

Safety Lanyard Ass'y
21

278000508 Safety Switch Nut

Safety Switch Nut
22

278001359 Speedometer. Includes 22 - 27.

Speedometer. Includes 22 - 27.
23

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
24

278000217 Female Housing (2 Circuits)(Packard)

Female Housing (2 Circuits)(Packard)
25

278001065 Wire Seal(Packard)

Wire Seal(Packard)
26

278000222 Male Terminal (18 Gauge) (Packard)

Male Terminal (18 Gauge) (Packard)
27

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
28

278001515 Oil sensor. Includes 28 - 32.

Oil sensor. Includes 28 - 32.
29

278000218 Wire Seal (16 and 18 gauge - green)

Wire Seal (16 and 18 gauge - green)
30

278000222 Male Terminal (18 Gauge)

Male Terminal (18 Gauge)
31

278000217 Female Housing (2 Circuits)

Female Housing (2 Circuits)
32

293720008 Grommet

Grommet
33

293750002 Tie Rap 130 mm

Tie Rap 130 mm
34

204901016 Module Decal

Module Decal
35

293550015 Deoxit Lubricant, Spray

Deoxit Lubricant, Spray
36

278001554 Rectifier Ass'y. Includes 36 - 40.

Rectifier Ass'y. Includes 36 - 40.
37

278000220 Male Housing (2 Circuits)

Male Housing (2 Circuits)
38

409007300 Female Terminal

Female Terminal
39

278000218 Wire Seal (16-18 Gauge) (Green)

Wire Seal (16-18 Gauge) (Green)
40

278000273 Male Housing (3 Circuits)

Male Housing (3 Circuits)
41

234061600 Washer 6 mm

Washer 6 mm
42

414115200 Tie Rap 180 mm

Tie Rap 180 mm
43

293800038 Loctite 518, 50 ml

Loctite 518, 50 ml
44

278001016 Temperature Sensor

Temperature Sensor
45

293720047 Gauge Support

Gauge Support
46

204470675 LCD Info Gauge. Includes 46 - 69.

LCD Info Gauge. Includes 46 - 69.
47

278000220 Male Housing (2 Circuits)(Packard)

Male Housing (2 Circuits)(Packard)
48

278000891 Male Housing (4 Circuits)(Packard)

Male Housing (4 Circuits)(Packard)
49

278000223 Female Terminal (18 Gauge)(Packard)

Female Terminal (18 Gauge)(Packard)
50

278000216 Wire Seal (Cap)(Packard)

Wire Seal (Cap)(Packard)
51

278000890 Female Housing (4 Circuits)(Packard)

Female Housing (4 Circuits)(Packard)
52

278000217 Female Housing (2 Circuits)(Packard)

Female Housing (2 Circuits)(Packard)
53

278000222 Male Terminal (18 Gauge)(Packard)

Male Terminal (18 Gauge)(Packard)
54

278001065 Wire Seal (20 Gauge)(Packard)

Wire Seal (20 Gauge)(Packard)
55

278000993 Male Housing (26 Circuits) (AMP). Includes 55 - 56.

Male Housing (26 Circuits) (AMP). Includes 55 - 56.
56

278001307 Wire Seal (AMP)

Wire Seal (AMP)
57

278000994 Female Terminal(AMP)

Female Terminal(AMP)
58

278000995 Female Terminal(AMP)

Female Terminal(AMP)
59

278000996 Wire Seal(AMP)

Wire Seal(AMP)
60

293000070 Sealing Cap (AMP)

Sealing Cap (AMP)
61

278000736 Male Housing (6 Circuits)(Deutsch)

Male Housing (6 Circuits)(Deutsch)
62

278000632 Female Terminal (16-18 Gauge) (Deutsch)

Female Terminal (16-18 Gauge) (Deutsch)
63

278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
64

270000137 Female Housing (6 Circuits)(Deutsch)

Female Housing (6 Circuits)(Deutsch)
65

278000631 Male Terminal (16-18 Gauge) (Deutsch)

Male Terminal (16-18 Gauge) (Deutsch)
66

278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)

(Female) Secondary Lock (6 Circuits) (Deutsch)
67

293000052 Sealing Cap (Deutsch)

Sealing Cap (Deutsch)
68

278001005 Male Housing (2 Circuits)(Bosch)

Male Housing (2 Circuits)(Bosch)
69

278000998 Female Terminal(AMP)

Female Terminal(AMP)
70

278000996 Wire Seal(AMP)

Wire Seal(AMP)
71

278001353 Switch Ass. Start/Stop. Includes 71 - 74.

Switch Ass. Start/Stop. Includes 71 - 74.
72

278000222 Male Terminal

Male Terminal
73

278000218 Wire Seal

Wire Seal
74

278000217 Female Housing (2 circuits)

Female Housing (2 circuits)
75

293200017 Neoprene Seal

Neoprene Seal
76

278001243 Compass. Includes 76 - 80.

Compass. Includes 76 - 80.
77

278000220 Male Housing (2 Circuits) (Packard)

Male Housing (2 Circuits) (Packard)
78

278000223 Female Terminal (18 gauge) (Packard)

Female Terminal (18 gauge) (Packard)
79

278000218 Wire Seal (16 and 18 gauge - green) (Packard)

Wire Seal (16 and 18 gauge - green) (Packard)
80

278000891 Male Housing (4 Circuits) (Packard)

Male Housing (4 Circuits) (Packard)
81

293730016 Dart

Dart
82

270600000 Air Temperature Sensor (Storage Cover)

Air Temperature Sensor (Storage Cover)
83

278001054 Insulator

Insulator
84

204470220 Bilge Pump

Bilge Pump
85

293150029 Pop Rivet 5/32''

Pop Rivet 5/32''
86

204050304 Bilge Pump Support

Bilge Pump Support
87

293150011 Pop Rivet 3/16''

Pop Rivet 3/16''
88

270600044 Solenoid Valve

Solenoid Valve
89

234051600 Flat Washer 5 mm

Flat Washer 5 mm
90

232551600 Elastic Stop Nut M5

Elastic Stop Nut M5
91

243041660 Plastite Screw M4.8 x 16

Plastite Screw M4.8 x 16
92

211200035 Washer 6 mm

Washer 6 mm
93

270600040 Pressure Sensor

Pressure Sensor
94

270000484 Noise Sensor

Noise Sensor
95

293550004 Dielectric Grease, 150 gr

Dielectric Grease, 150 gr
96

207183060 Hexagonal Screw M8 x 30

Hexagonal Screw M8 x 30
97

293800060 Loctite 243, 10 mL

Loctite 243, 10 mL
98

270600019 Valve Adaptor

Valve Adaptor
