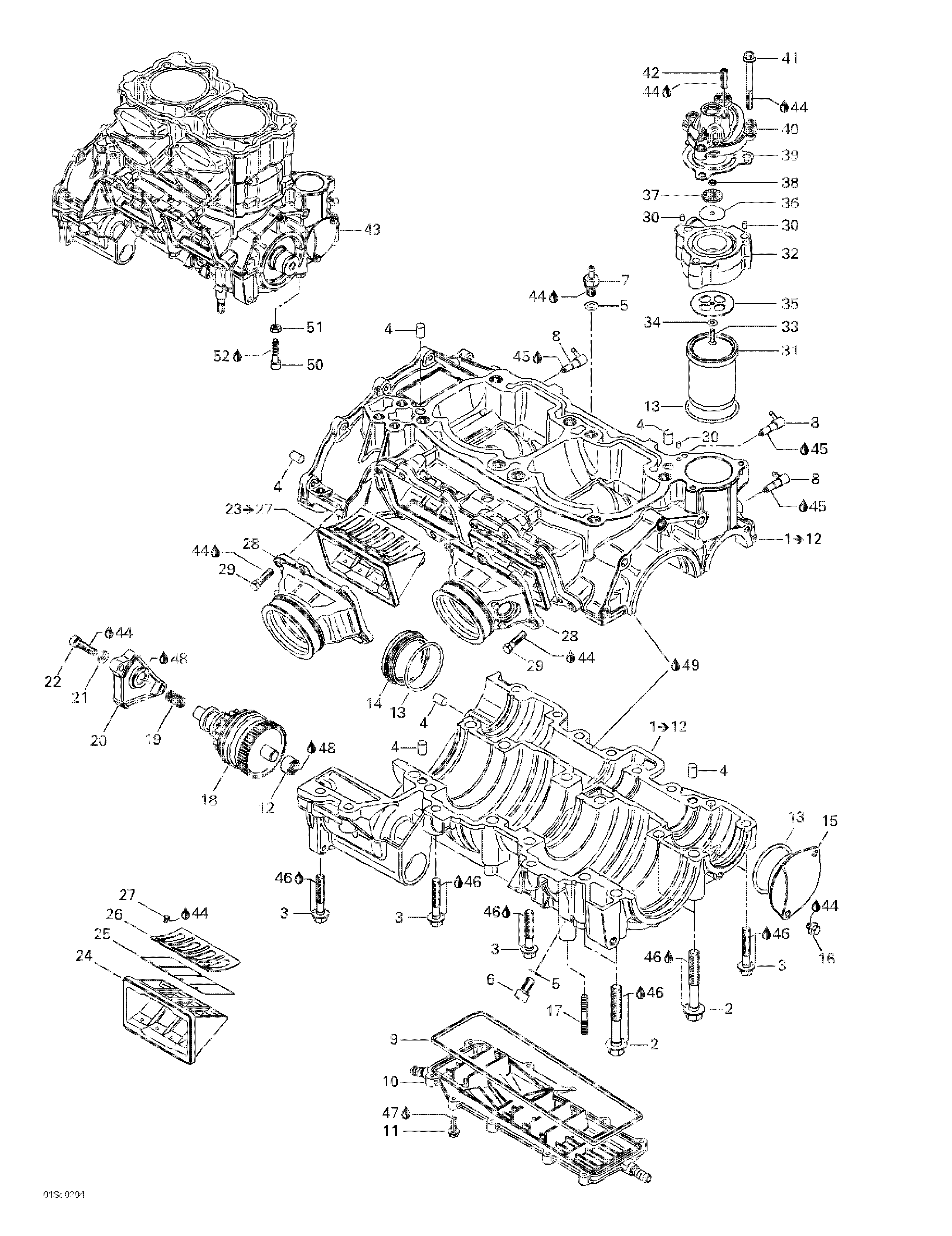

01- Crankcase, Reed Valve для BRP GTX DI, 6118/6119 - 2003

  • №
    Артикул
    Название
  • 1
    420888532 Crankcase Ass'y >. Includes 1 - 12.
    Crankcase Ass'y >. Includes 1 - 12.
  • 2
    420941333 Hex. Flanged Screw M10 x 73.5
    Hex. Flanged Screw M10 x 73.5
  • 3
    420940638 Hex. Flanged Screw M8 x 45
    Hex. Flanged Screw M8 x 45
  • 4
    420632010 Pin 8 x 12
    Pin 8 x 12
  • 5
    420950141 Sealing Ring
    Sealing Ring
  • 6
    205081660 Socket Head Screw M8 x 16
    Socket Head Screw M8 x 16
  • 7
    420640970 Vent Nipple M8
    Vent Nipple M8
  • 8
    420956510 Check Valve
    Check Valve
  • 9
    420931880 Rubber Ring
    Rubber Ring
  • 10
    420811430 Waterchannel Cover
    Waterchannel Cover
  • 11
    420841558 Taptite Screw M5 x 20
    Taptite Screw M5 x 20
  • 12
    420232480 Needle Bushing
    Needle Bushing
  • 13
    420230300 O-Ring
    O-Ring
  • 14
    420811200 Bearing Cover
    Bearing Cover
  • 15
    420811205 Bearing Cover
    Bearing Cover
  • 16
    207661244 Hex. Flanged Screw M6 x 12
    Hex. Flanged Screw M6 x 12
  • 17
    420840290 Stud M10 x 18
    Stud M10 x 18
  • 18
    420888042 Starter Drive Ass'y
    Starter Drive Ass'y
  • 19
    420938204 Spring
    Spring
  • 20
    420811210 Cover
    Cover
  • 21
    420845020 Spring Washer
    Spring Washer
  • 22
    420840401 Socket Head Screw M6 x 22
    Socket Head Screw M6 x 22
  • 23
    420924602 Reed Valve Ass'y. Includes 23 - 27.
    Reed Valve Ass'y. Includes 23 - 27.
  • 25
    420924612 Reed Pedal
    Reed Pedal
  • 26
    420924617 Reed Pedal Stop
    Reed Pedal Stop
  • 27
    420941215 Oval Head Screw M3 x 5
    Oval Head Screw M3 x 5
  • 28
    420867890 Carburator Adapter Ass'y
    Carburator Adapter Ass'y
  • 29
    207662544 Hex. Flanged Screw M6 x 25
    Hex. Flanged Screw M6 x 25
  • 30
    420232020 Pin
    Pin
  • 31
    420923910 Compressor Sleeve
    Compressor Sleeve
  • 32
    420923891 Compressor Head
    Compressor Head
  • 33
    420841368 Oval Head Screw
    Oval Head Screw
  • 34
    420944590 Washer
    Washer
  • 35
    420854500 Inlet Reed Disk
    Inlet Reed Disk
  • 36
    420854510 Outlet Reed Disk
    Outlet Reed Disk
  • 37
    420944600 Diaphragm Guide
    Diaphragm Guide
  • 38
    420242533 Lock Nut M4
    Lock Nut M4
  • 39
    420931870 Gasket
    Gasket
  • 40
    420923901 Compressor Cover
    Compressor Cover
  • 41
    420640563 Hex. Flanged Screw M6 x 55
    Hex. Flanged Screw M6 x 55
  • 42
    420640873 Adjuster Screw M6 x 25
    Adjuster Screw M6 x 25
  • 43
    420094706 Short Block Ass'y (947 DI)
    Short Block Ass'y (947 DI)
  • 44
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 45
    413711400 Loctite 648, 10 ml
    Loctite 648, 10 ml
  • 46
    293800038 Loctite 518, 50 ml
    Loctite 518, 50 ml
  • 47
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
  • 48
    413707000 Molykote 111
    Molykote 111
  • 49
    293800081 Loctite 5910, 300 ml
    Loctite 5910, 300 ml
  • 50
    205003060 Socket Screw M10 x 30
    Socket Screw M10 x 30
  • 51
    232001600 Hex. Nut M10
    Hex. Nut M10
  • 52
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 53
    420888134 Engine Gasket Set (Not Shown)
    Engine Gasket Set (Not Shown)
  • 54
    420888139 Cylinder Gasket Set (Not Shown)
    Cylinder Gasket Set (Not Shown)
