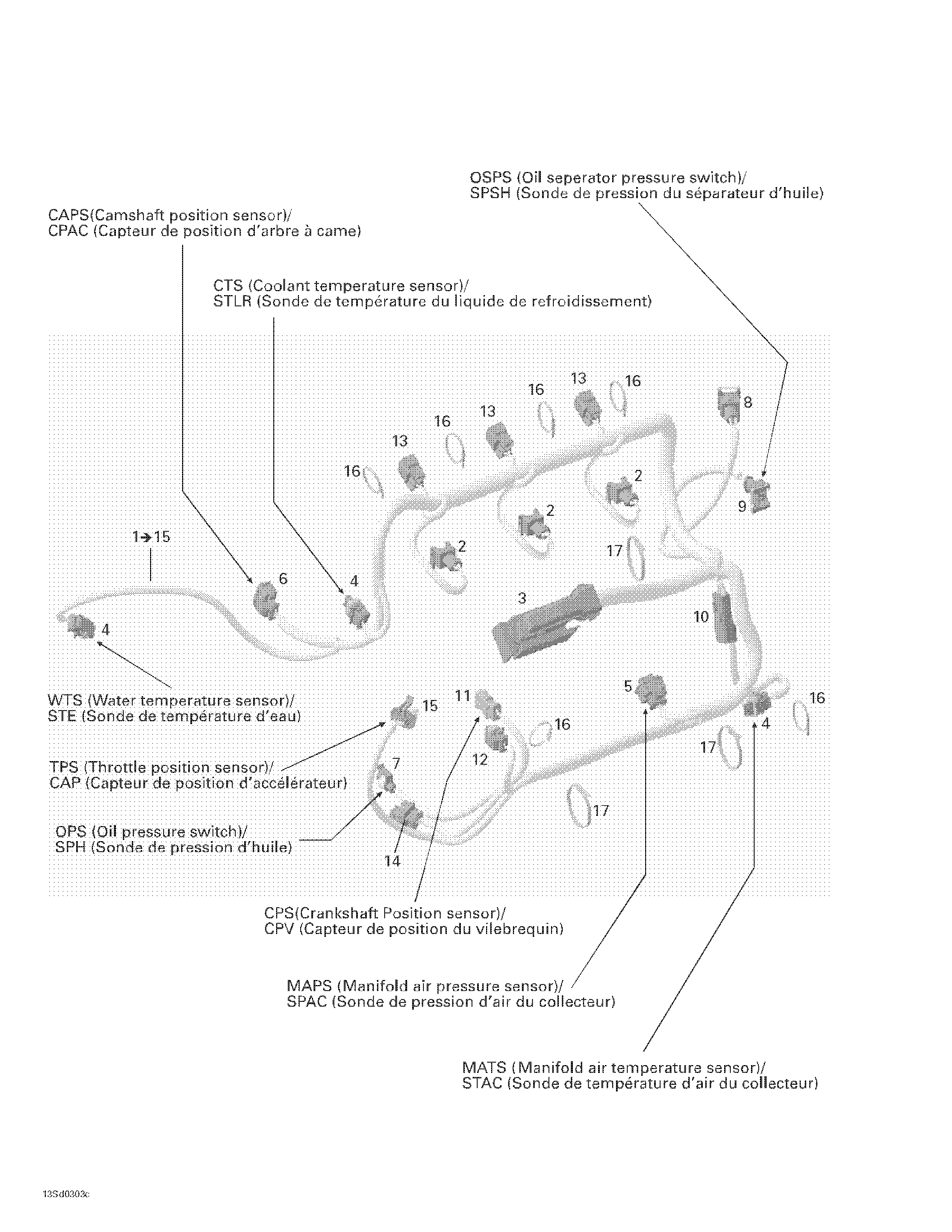

10- Engine Harness для BRP GTX 4-TEC, Supercharged - 2003
-
№АртикулНазвание
-
1420664054 Wiring harness ass'y. Includes 1 - 15.Wiring harness ass'y. Includes 1 - 15.
-
2278001003 Male housing (2 circuits)Male housing (2 circuits)
-
3290664450 Connector housingConnector housing
-
4278001005 Male housing (2 circuits). (WTS/CTS/MATS)Male housing (2 circuits). (WTS/CTS/MATS)
-
5278001829 Connector (MAPS)Connector (MAPS)
-
6278001830 Connecto (CAPS)Connecto (CAPS)
-
7278001012 Male housing (1 circuit) (OPS)Male housing (1 circuit) (OPS)
-
8278001834 ConnectorConnector
-
9278001834 Connector (OSPS)Connector (OSPS)
-
10278000635 Female housing (4 circuits)Female housing (4 circuits)
-
11278001831 Connector (CPS)Connector (CPS)
-
12278001005 Male housing (2 circuits). (knock sensor)Male housing (2 circuits). (knock sensor)
-
13278001832 Connector (stick coil)Connector (stick coil)
-
14278001833 Connector (idle bypass valve)Connector (idle bypass valve)
-
15278000997 Male housing (3 circuits) (TPS)Male housing (3 circuits) (TPS)
-
16420866714 Tie rapTie rap
-
17420866716 Tie rapTie rap
