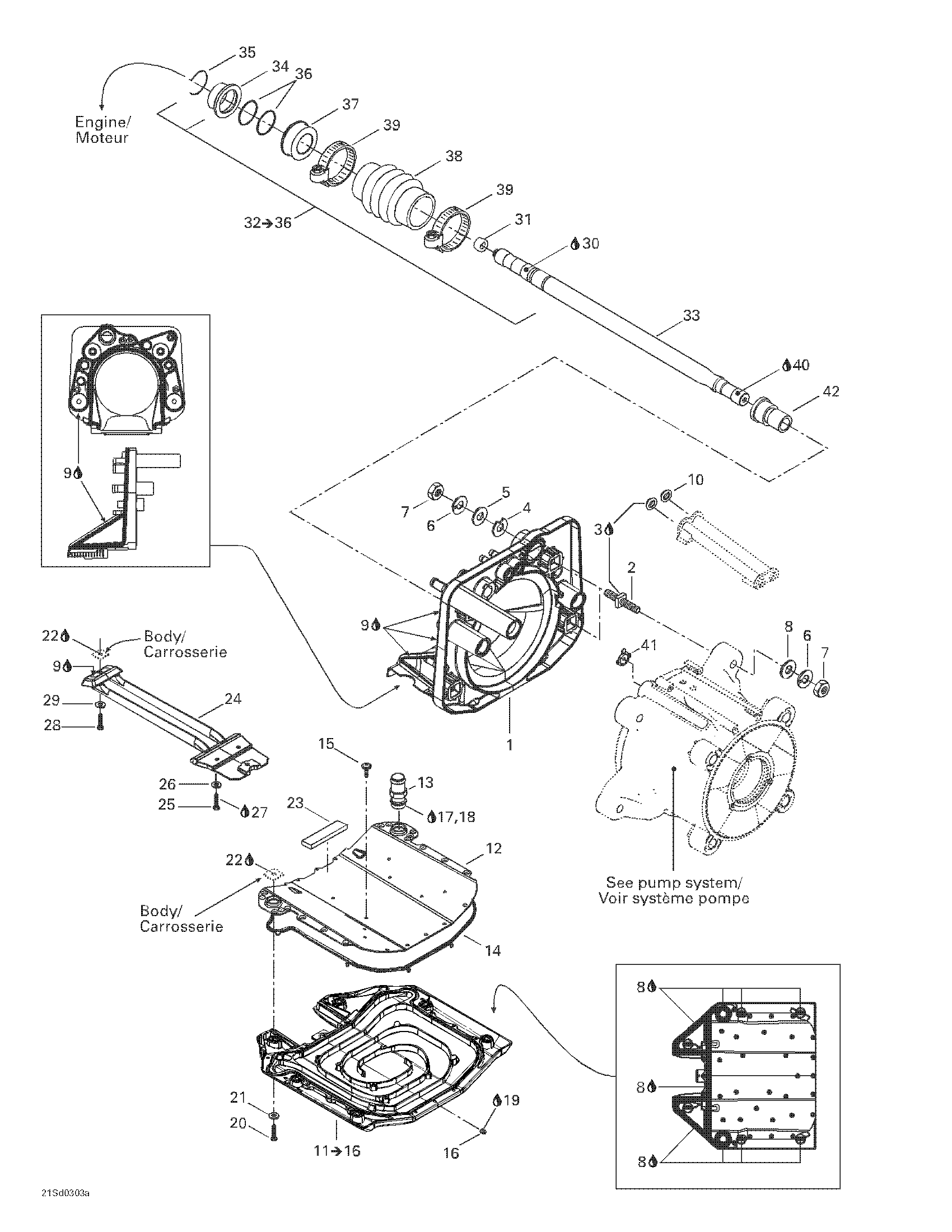

05- Propulsion System для BRP GTX 4-TEC, Supercharged - 2003
-
№АртикулНазвание
-
1271001159 Pump supportPump support
-
2250300010 Square studSquare stud
-
3293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
4272000053 ShimShim
-
5234002600 Flat washer M10Flat washer M10
-
6234101601 Lock washer M10Lock washer M10
-
7232001600 Hex. nut M10Hex. nut M10
-
8234001600 Flat washer M10Flat washer M10
-
9293800066 Sealant, loctite 5900, 300 mlSealant, loctite 5900, 300 ml
-
10293250084 O-ringO-ring
-
11271001187 Riding plate ass'y. Includes 11 - 16.Riding plate ass'y. Includes 11 - 16.
-
13293710087 Straight fittingStraight fitting
-
14293250141 SealSeal
-
15250000064 Torx button head screw M6 x 14Torx button head screw M6 x 14
-
16250500005 Drain blug M6 x 12Drain blug M6 x 12
-
17293800041 Loctite, primer NLoctite, primer N
-
18293800050 Loctite 577, 250 mlLoctite 577, 250 ml
-
19293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
20207383060 Hex. screw M8 x 30 (scotch grip)Hex. screw M8 x 30 (scotch grip)
-
21234081600 Flat washer M8Flat washer M8
-
22296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
23293250087 GasketGasket
-
24271001169 Pump gratePump grate
-
25207161660 Hex. screw M6 x 16Hex. screw M6 x 16
-
26234061600 Flat washer M6Flat washer M6
-
27293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
28207383060 Hex. screw M8 x 30 (scotch grip)Hex. screw M8 x 30 (scotch grip)
-
29234081600 Flat washer M8Flat washer M8
-
31272000173 Drive shaft plugDrive shaft plug
-
33272000186 Drive shaftDrive shaft
-
34272000176 Support ringSupport ring
-
35272000175 C-clipC-clip
-
36293300044 O-ringO-ring
-
37272000177 Carbon ringCarbon ring
-
38272000183 BellowBellow
-
39293650077 Norma clampNorma clamp
-
40293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
41291001888 ReducerReducer
-
42292000975 Hull InsertHull Insert
