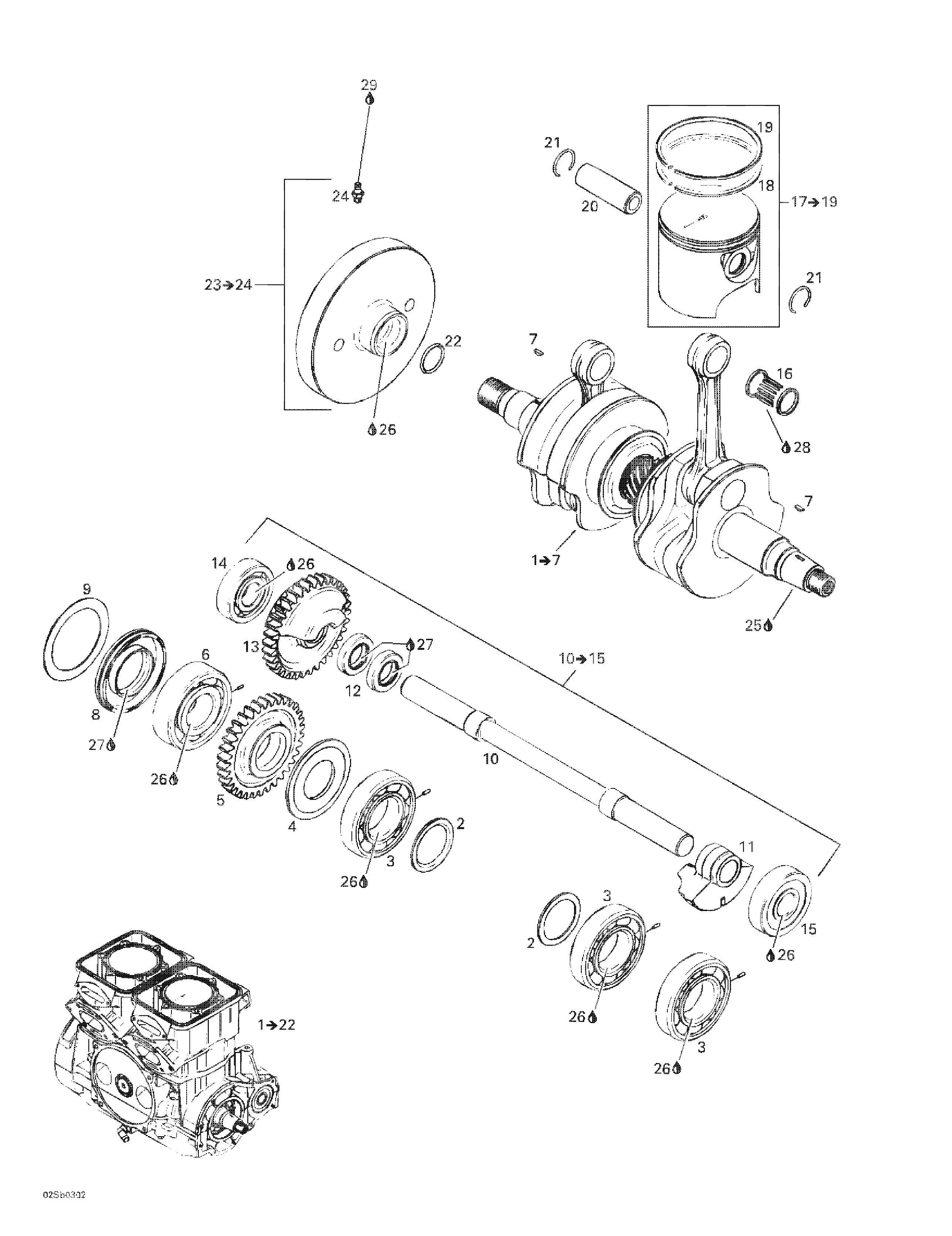

01- Crankshaft And Pistons для BRP GTI LE RFI, 6103/6104 - 2003

  • №
    Артикул
    Название
  • 1
    420078703 Short Block > Ass'y (SIlver, 6104). Includes 1 - 22.
    Short Block > Ass'y (SIlver, 6104). Includes 1 - 22.
  • 420078706 Short Block > Ass'y (Black, 6103)
    Short Block > Ass'y (Black, 6103)
  • 1
    420887890 Crankshaft Ass'y. Includes 1 - 7.
    Crankshaft Ass'y. Includes 1 - 7.
  • 2
    420827760 Distance Ring
    Distance Ring
  • 3
    420832573 Ball Bearing > Ass'y
    Ball Bearing > Ass'y
  • 4
    420926140 Labyrinth Washer
    Labyrinth Washer
  • 5
    420834315 Gear 43 Teeth
    Gear 43 Teeth
  • 6
    420932579 Ball Bearing >
    Ball Bearing >
  • 7
    420246055 Woodruff Key
    Woodruff Key
  • 8
    420830638 Oil Seal
    Oil Seal
  • 9
    420926060 Retaining Shim
    Retaining Shim
  • 10
    420837406 Balance Shaft Ass'y. Includes 10 - 15.
    Balance Shaft Ass'y. Includes 10 - 15.
  • 14
    420932095 Ball Bearing >
    Ball Bearing >
  • 15
    420932098 Ball Bearing >
    Ball Bearing >
  • 16
    420832420 Needle Bearing
    Needle Bearing
  • 17
    420888410 Piston with 2 Rings, 81.91 mm. Includes 17 - 19.
    Piston with 2 Rings, 81.91 mm. Includes 17 - 19.
  • 420888411 Piston Oversize, 2 Rings, 82.16 mm
    Piston Oversize, 2 Rings, 82.16 mm
  • 18
    420815080 Rectangular Ring 82.00 mm
    Rectangular Ring 82.00 mm
  • 420815081 Rectangular Ring 82.25 mm
    Rectangular Ring 82.25 mm
  • 19
    420815100 Semi-Trapez Ring 82.00 mm
    Semi-Trapez Ring 82.00 mm
  • 420815101 Semi-Trapez Ring 82.25 mm
    Semi-Trapez Ring 82.25 mm
  • 20
    420916402 Piston Pin
    Piston Pin
  • 21
    420845100 Circlip
    Circlip
  • 22
    420430782 O-Ring
    O-Ring
  • 23
    420958141 Flywheel Clutch (Silver, 6104). Includes 23 - 24.
    Flywheel Clutch (Silver, 6104). Includes 23 - 24.
  • 420958142 Flywheel Clutch (Black, 6103)
    Flywheel Clutch (Black, 6103)
  • 24
    420499113 Grease Fitting
    Grease Fitting
  • 25
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 26
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
  • 27
    413707000 Molykote 111
    Molykote 111
  • 28
    413802900 Injection Oil (12 x 1 Liter)
    Injection Oil (12 x 1 Liter)
  • 29
    293550010 Synthetic Grease, 400 g
    Synthetic Grease, 400 g
  • 30
    420886392 Engine Gasket Set (Not Shown)
    Engine Gasket Set (Not Shown)
  • 31
    420886396 Cylinder Gasket Set (Not Shown)
    Cylinder Gasket Set (Not Shown)
