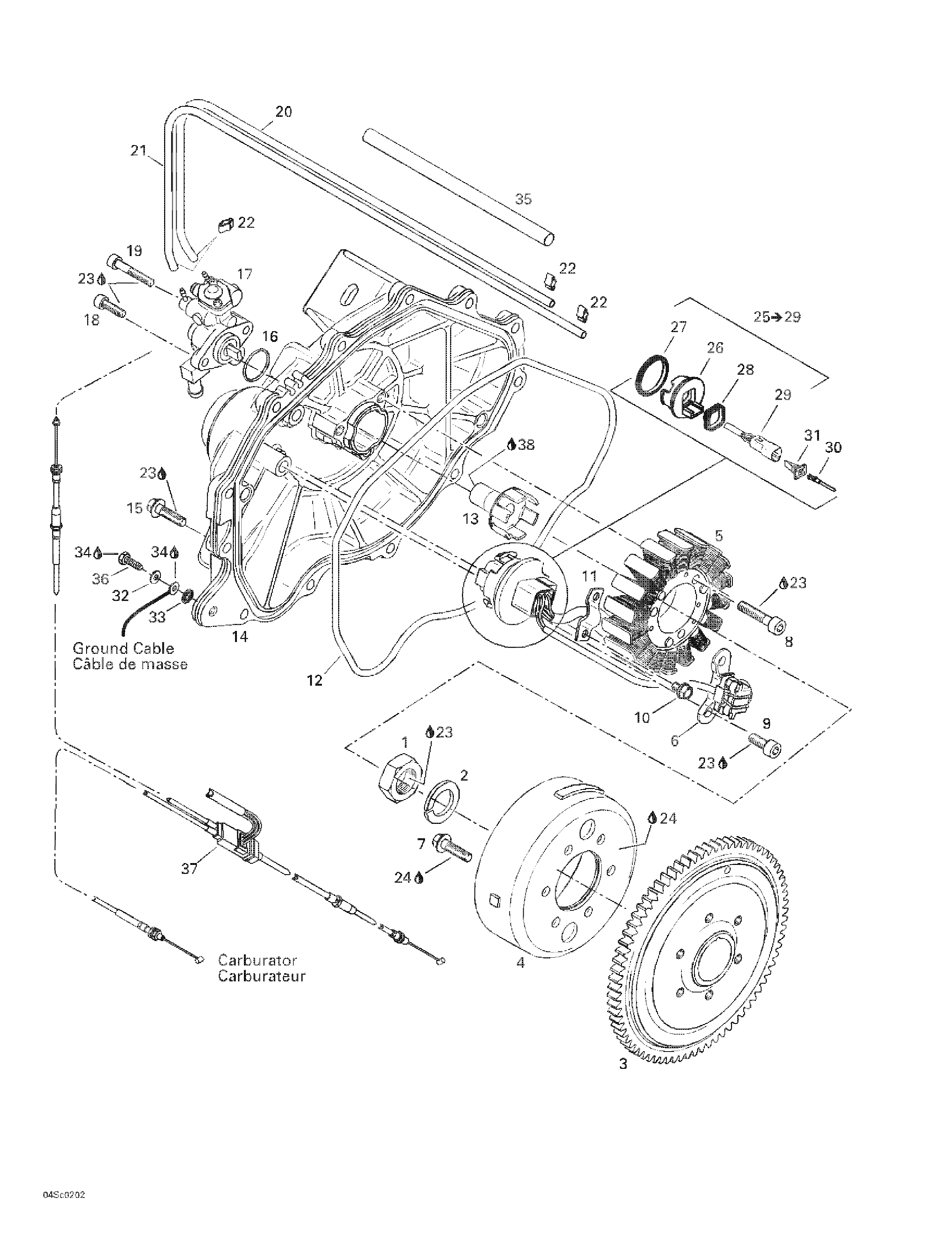

03- Magneto, Oil Pump для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1420942220 Hex. Nut M18Hex. Nut M18
-
2290945757 Lock Washer 18 mmLock Washer 18 mm
-
3290966682 Flywheel HubFlywheel Hub
-
4290887945 Magneto FlywheelMagneto Flywheel
-
5290886588 Stator Plate Ass'yStator Plate Ass'y
-
6290966832 Sensor Ass'ySensor Ass'y
-
7290640171 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
8205063044 Socket Head Screw M6 x 30Socket Head Screw M6 x 30
-
9420241236 Socket Head Screw M6 x 16Socket Head Screw M6 x 16
-
10207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
11290853080 Retainer PlateRetainer Plate
-
12290931690 O-RingO-Ring
-
13290837390 Oil Pump ShaftOil Pump Shaft
-
14290811066 Ignition CoverIgnition Cover
-
15290240033 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
16293300018 O-Ring 18.5 mmO-Ring 18.5 mm
-
17290888690 Oil Pump Ass'yOil Pump Ass'y
-
18205051660 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
19290940888 Socket Head Screw M5 x 30Socket Head Screw M5 x 30
-
20414413800 Hose (Foot)Hose (Foot)
-
21414413800 Hose (Foot)Hose (Foot)
-
22420256408 ClampClamp
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25707000031 Adaptor Ass'y. Includes 25 - 29.Adaptor Ass'y. Includes 25 - 29.
-
26270000138 AdaptorAdaptor
-
27293300033 GasketGasket
-
28293200055 GasketGasket
-
29270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
30278000631 Terminal MaleTerminal Male
-
31278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
32234062600 Flat Washer 6 mmFlat Washer 6 mm
-
33234461608 Ext. Tooth Washer 6 mmExt. Tooth Washer 6 mm
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35290260437 Protector HoseProtector Hose
-
36207361660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
37277000912 Throttle Cable Ass'yThrottle Cable Ass'y
-
38413707000 Molykote 111Molykote 111
-
39290889150 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
40290889155 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
