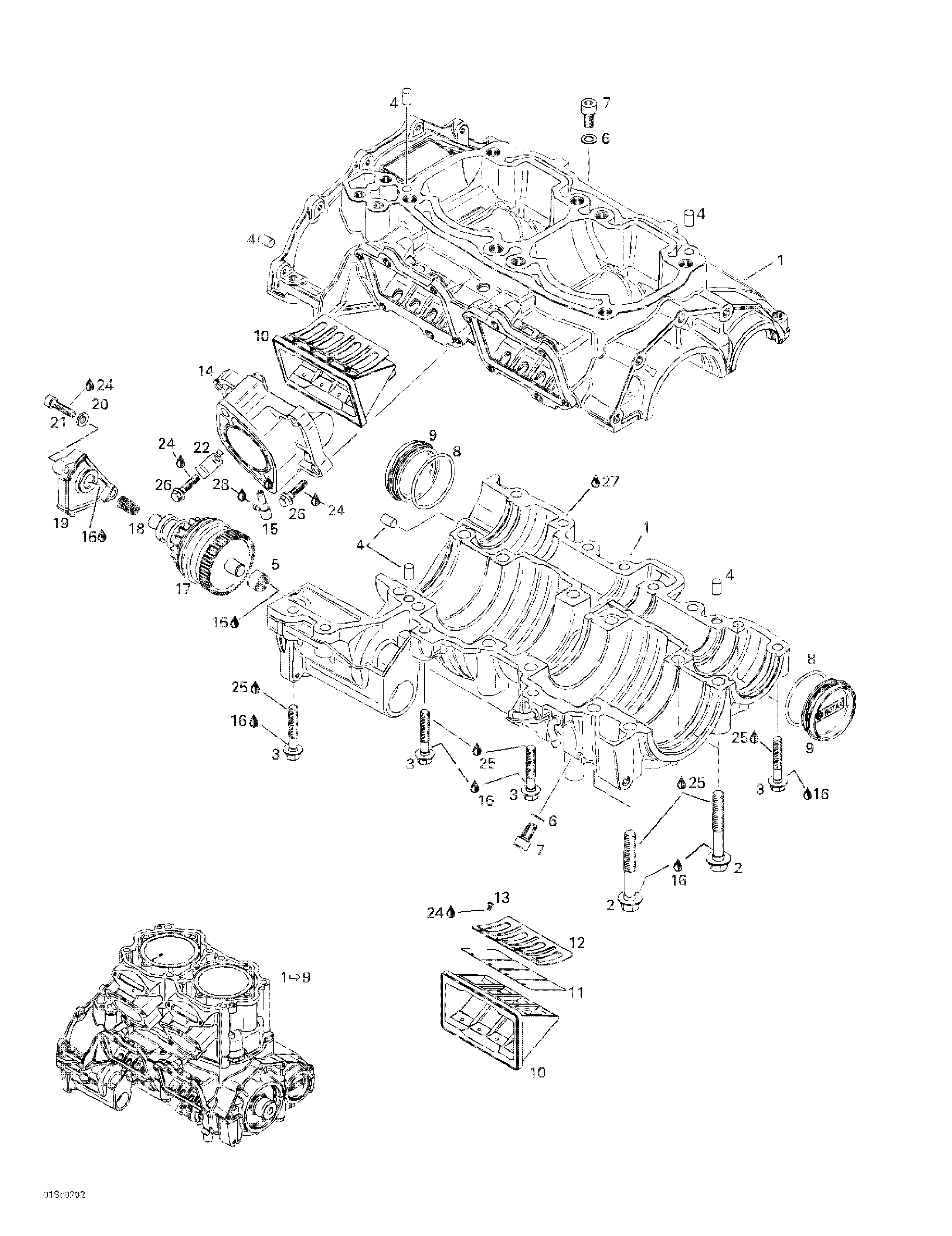

01- Crankcase, Reed Valve для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1290094703 Short Block Ass'y. Includes 1 - 9.Short Block Ass'y. Includes 1 - 9.
-
1290887754 Crankcase Ass'y > (Silver). Includes 1 - 7.Crankcase Ass'y > (Silver). Includes 1 - 7.
-
2290941333 Flanged Screw M10 x 73,5Flanged Screw M10 x 73,5
-
3290940638 Flanged Screw M8 x 45Flanged Screw M8 x 45
-
4290632010 Pin 8 x 12Pin 8 x 12
-
5290232480 Needle BushingNeedle Bushing
-
6420950141 Sealing RingSealing Ring
-
7205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
8290230300 O-RingO-Ring
-
9290811200 Bearing CoverBearing Cover
-
10290924602 Reed Valve Ass'y. Includes 10 - 13.Reed Valve Ass'y. Includes 10 - 13.
-
11290924612 Reed PedalReed Pedal
-
12290924617 Pedal Stop ReedPedal Stop Reed
-
13420941215 Oval Head Screw M3 x 5Oval Head Screw M3 x 5
-
14290867833 Carburator Adapter Ass'y. Includes 14 - 15.Carburator Adapter Ass'y. Includes 14 - 15.
-
15420956510 Check ValveCheck Valve
-
16413707000 Molykote 111Molykote 111
-
17290888042 Starter Drive Ass'yStarter Drive Ass'y
-
18290938204 SpringSpring
-
19290811210 CoverCover
-
20420845020 Spring WasherSpring Washer
-
21420840401 Socket Head Screw M6 x 22Socket Head Screw M6 x 22
-
22290953330 Wire SupportWire Support
-
23290889150 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413702700 Loctite 515, 50 mlLoctite 515, 50 ml
-
26290240033 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
27293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
-
28413711400 Loctite 648, 10 mlLoctite 648, 10 ml
