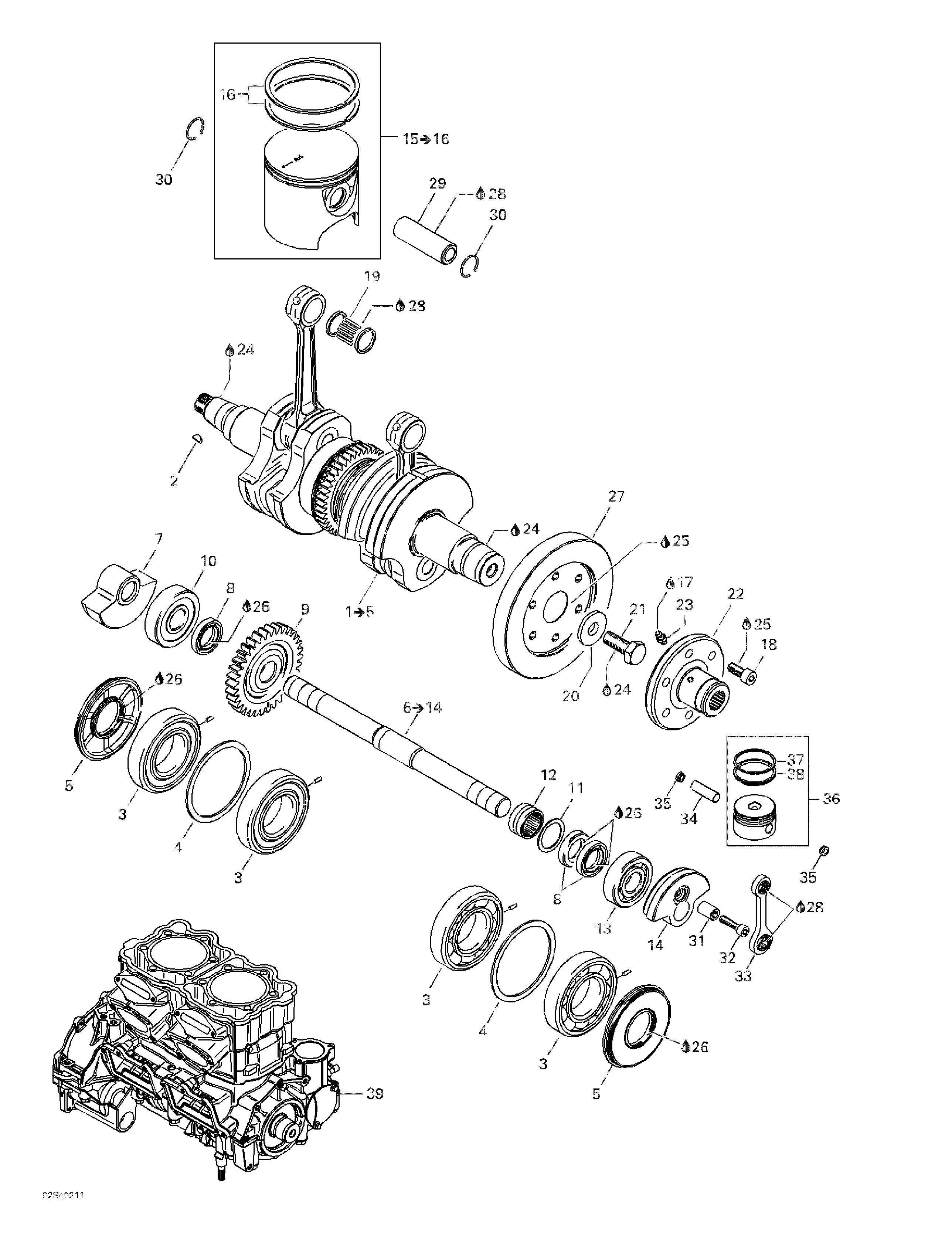

01- Crankshaft And Pistons для BRP LRV DI, 5460 - 2002
-
№АртикулНазвание
-
1290887767 Crankshaft Ass'y. Includes 1 - 5.Crankshaft Ass'y. Includes 1 - 5.
-
2420246055 Woodruff KeyWoodruff Key
-
3420432271 Ball Bearing 6208 Ass'yBall Bearing 6208 Ass'y
-
4420926190 WasherWasher
-
5290931731 Oil SealOil Seal
-
6290837445 Shaft Balance Ass'y. Includes 6 - 14.Shaft Balance Ass'y. Includes 6 - 14.
-
10290932097 Ball Bearing 6304Ball Bearing 6304
-
11420927192 WasherWasher
-
12290232555 Needle BearingNeedle Bearing
-
13290932096 Ball Bearing 6304Ball Bearing 6304
-
14290818955 Mass BalanceMass Balance
-
15290889045 Piston with 2 Rings, 87.88 mm. Includes 15 - 16.Piston with 2 Rings, 87.88 mm. Includes 15 - 16.
-
290889046 Piston Oversize, 88.16 mmPiston Oversize, 88.16 mm
-
16290815267 Rectangular RingRectangular Ring
-
290815268 Rectangular Ring (Oversize)Rectangular Ring (Oversize)
-
17293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
18205082060 Socket Head Screw M8 x 20Socket Head Screw M8 x 20
-
19290832552 Needle BearingNeedle Bearing
-
20290827782 WasherWasher
-
21290640120 Hex. Screw M12 x 30Hex. Screw M12 x 30
-
22290958122 Coupling Flange Ass'y (Silver). Includes 22 - 23.Coupling Flange Ass'y (Silver). Includes 22 - 23.
-
23290499113 Grease FittingGrease Fitting
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27290958082 Coupling (Silver)Coupling (Silver)
-
28413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
29290916398 Piston PinPiston Pin
-
30290845465 CirclipCirclip
-
31290921460 Compressor PinCompressor Pin
-
32290640690 Screw M6 x 45Screw M6 x 45
-
33290917505 Conrod Ass'yConrod Ass'y
-
34290916430 Piston Pin M9 x 30Piston Pin M9 x 30
-
35290847940 Distance BushingDistance Bushing
-
36290888550 Piston Ass'y 38.95 mm. Includes 36 - 38.Piston Ass'y 38.95 mm. Includes 36 - 38.
-
37290215970 Rectangular RingRectangular Ring
-
38290215960 Oil Scraper RingOil Scraper Ring
-
39290094706 Short Block Ass'yShort Block Ass'y
-
40290888134 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
41290888139 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
