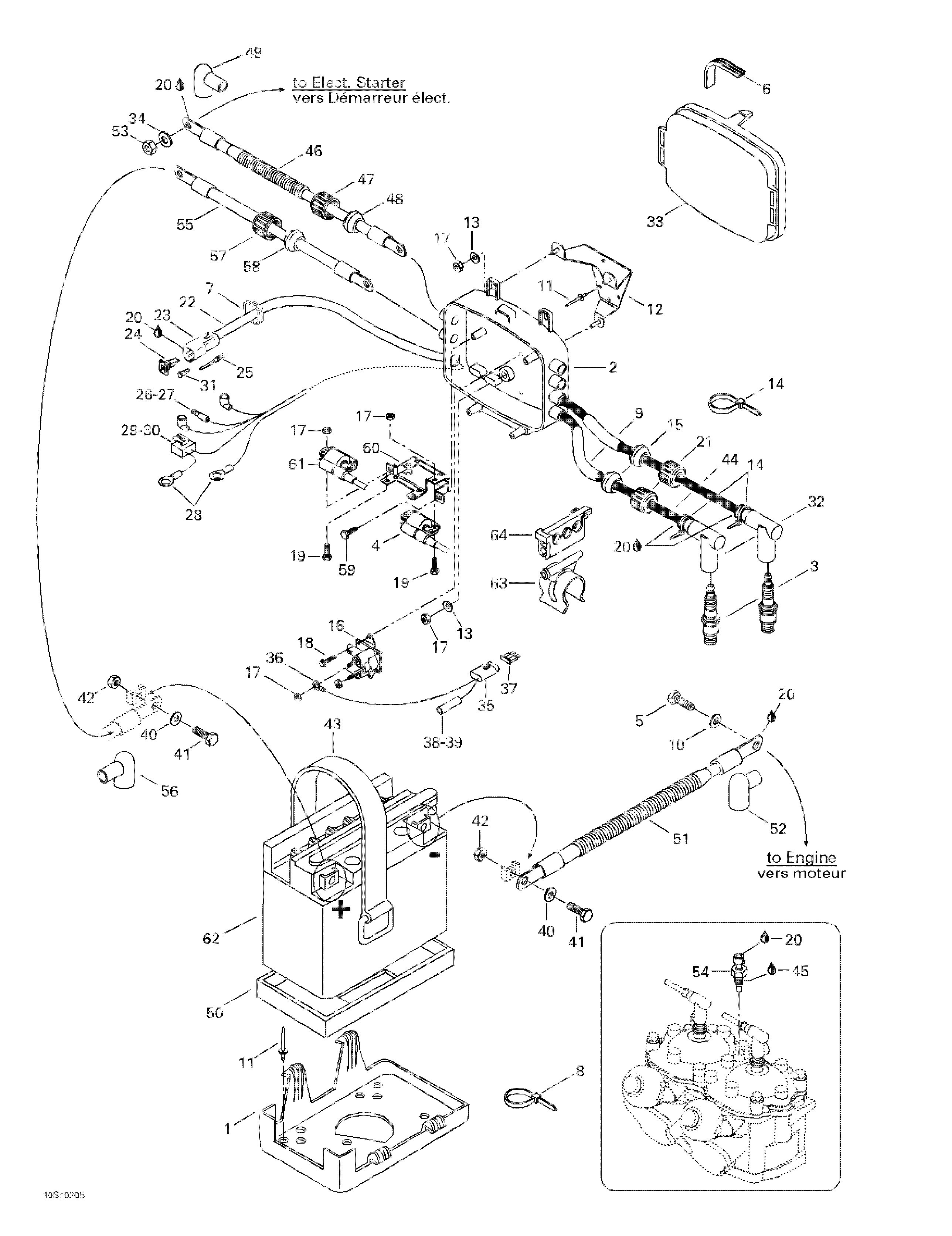

10- Rear Electrical Box для BRP GTX, 5587/5588 - 2002
-
№АртикулНазвание
-
1278001430 Battery SupportBattery Support
-
2278001712 BaseBase
-
3278000609 Spark Plug (NGK BR8-ES)Spark Plug (NGK BR8-ES)
-
4278001416 Ignition Coil (MAG)Ignition Coil (MAG)
-
5207302060 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
6278001173 GasketGasket
-
7293200030 GasketGasket
-
8293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
9275000007 Hose 8 mmHose 8 mm
-
10234001600 Flat Washer 10 mmFlat Washer 10 mm
-
11293150037 RivetRivet
-
12278001487 Box Support Ass'yBox Support Ass'y
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14293750002 Tie Rap 130 mmTie Rap 130 mm
-
15278000682 Grommet (Gray)Grommet (Gray)
-
16278001766 Starter RelayStarter Relay
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18210261040 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
19207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
20293550004 Dielectric Grease, 150grDielectric Grease, 150gr
-
21278000100 Electric CapElectric Cap
-
22278001423 Rear Electric Box Harness. Includes 22 - 31.Rear Electric Box Harness. Includes 22 - 31.
-
23270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
24278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
25278000631 Male TerminalMale Terminal
-
26278000230 Male TerminalMale Terminal
-
27278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
28278000300 Open BarrelOpen Barrel
-
29278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
30278001114 Female TerminalFemale Terminal
-
31293000052 Sealing CapSealing Cap
-
32278000237 Spark Plug CapSpark Plug Cap
-
33278001433 CoverCover
-
34234061600 Washer 6 mmWasher 6 mm
-
35278001212 Harness Fuse 15 Amp. Includes 35 - 39.Harness Fuse 15 Amp. Includes 35 - 39.
-
36278000300 Open BarrelOpen Barrel
-
37278000343 15 Amp. Fuse15 Amp. Fuse
-
38278001009 Female TerminalFemale Terminal
-
39278001007 Insulating Sheath (Simple)Insulating Sheath (Simple)
-
40211200018 Flat Washer 6 mmFlat Washer 6 mm
-
41211000045 Hex. ScrewHex. Screw
-
42211100022 Nut M6Nut M6
-
43293850021 StrapStrap
-
44278001268 Spark Plug WireSpark Plug Wire
-
45293800038 Loctite 518, 50mlLoctite 518, 50ml
-
46278001437 Starter Cable (Red). Includes 46 - 49.Starter Cable (Red). Includes 46 - 49.
-
47278000100 Electrical Box CapElectrical Box Cap
-
48278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
49278000020 Protector CapProtector Cap
-
50278001746 Battery Lower PadBattery Lower Pad
-
51278001439 Battery Ground Cable. Includes 51 - 52.Battery Ground Cable. Includes 51 - 52.
-
53232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
54278001016 Temperature SensorTemperature Sensor
-
56278000020 Protector CapProtector Cap
-
57278000100 Electrical Box CapElectrical Box Cap
-
58278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
59209561640 Hex. Tapping ScrewHex. Tapping Screw
-
60278001421 Ignition Coil SupportIgnition Coil Support
-
61278001414 Ignition Coil (PTO)Ignition Coil (PTO)
-
62278000477 BatteryBattery
-
63278000559 Collar SupportCollar Support
-
64278000245 Wire SupportWire Support
